Datasheet AD7887 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 2.7 V to 5.25 V, Micropower, 2-Channel, 125 kSPS, 12-Bit ADC in 8-Lead MSOP |
| Pages / Page | 25 / 1 — 2.7 V to 5.25 V, Micropower, 2-Channel,. 125 kSPS, 12-Bit ADC in 8-Lead … |
| Revision | E |
| File Format / Size | PDF / 470 Kb |
| Document Language | English |

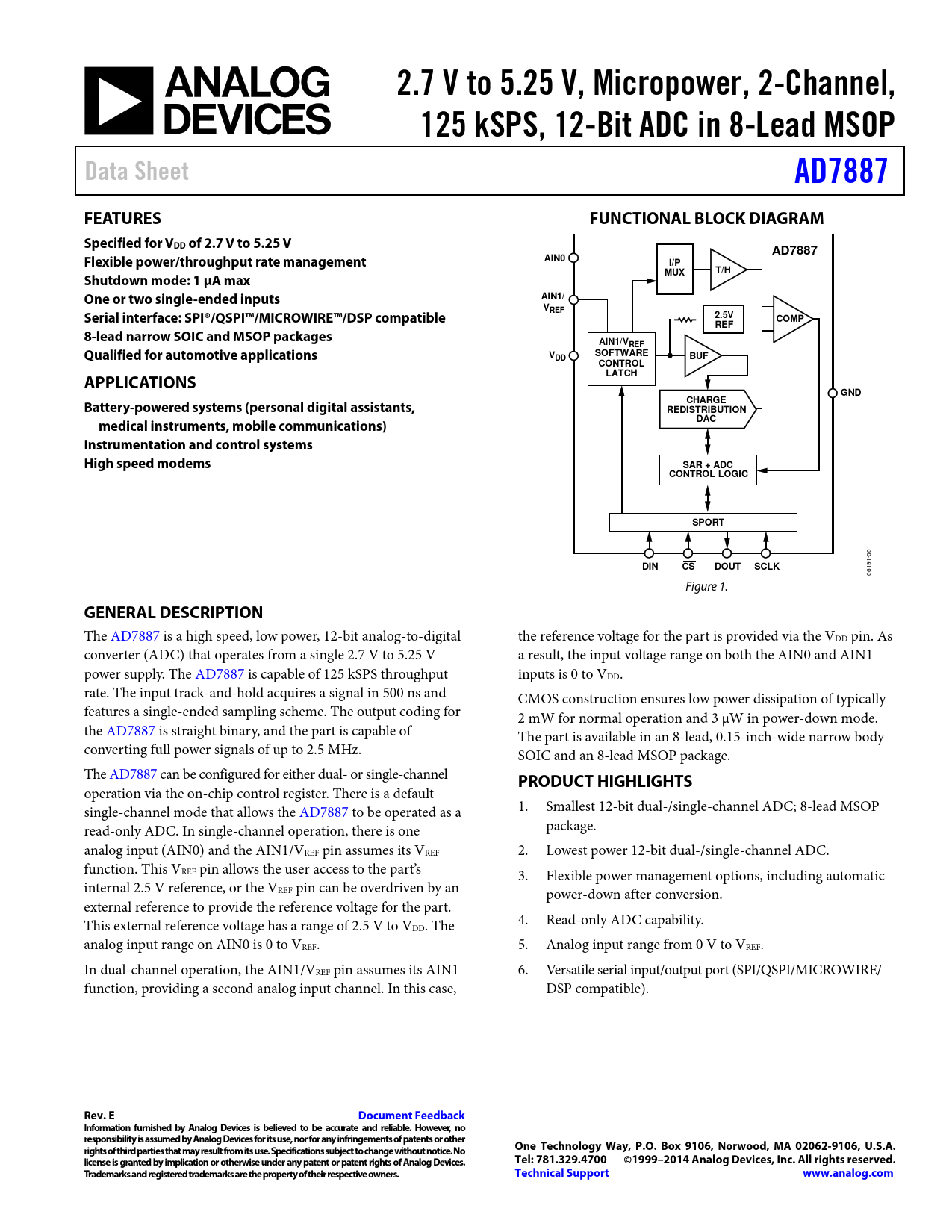

2.7 V to 5.25 V, Micropower, 2-Channel,. 125 kSPS, 12-Bit ADC in 8-Lead MSOP. Data Sheet. AD7887. FEATURES
Model Line for this Datasheet
Text Version of Document
2.7 V to 5.25 V, Micropower, 2-Channel, 125 kSPS, 12-Bit ADC in 8-Lead MSOP Data Sheet AD7887 FEATURES FUNCTIONAL BLOCK DIAGRAM Specified for VDD of 2.7 V to 5.25 V AD7887 Flexible power/throughput rate management AIN0 I/P T/H MUX Shutdown mode: 1 μA max One or two single-ended inputs AIN1/ VREF Serial interface: SPI®/QSPI™/MICROWIRE™/DSP compatible 2.5V COMP REF 8-lead narrow SOIC and MSOP packages AIN1/VREF Qualified for automotive applications V SOFTWARE DD BUF CONTROL LATCH APPLICATIONS GND CHARGE Battery-powered systems (personal digital assistants, REDISTRIBUTION DAC medical instruments, mobile communications) Instrumentation and control systems High speed modems SAR + ADC CONTROL LOGIC SPORT
01 -0
DIN CS DOUT SCLK
91 61 0 Figure 1.
GENERAL DESCRIPTION
The AD7887 is a high speed, low power, 12-bit analog-to-digital the reference voltage for the part is provided via the VDD pin. As converter (ADC) that operates from a single 2.7 V to 5.25 V a result, the input voltage range on both the AIN0 and AIN1 power supply. The AD7887 is capable of 125 kSPS throughput inputs is 0 to VDD. rate. The input track-and-hold acquires a signal in 500 ns and CMOS construction ensures low power dissipation of typically features a single-ended sampling scheme. The output coding for 2 mW for normal operation and 3 μW in power-down mode. the AD7887 is straight binary, and the part is capable of The part is available in an 8-lead, 0.15-inch-wide narrow body converting full power signals of up to 2.5 MHz. SOIC and an 8-lead MSOP package. The AD7887 can be configured for either dual- or single-channel
PRODUCT HIGHLIGHTS
operation via the on-chip control register. There is a default single-channel mode that allows the AD7887 to be operated as a 1. Smallest 12-bit dual-/single-channel ADC; 8-lead MSOP read-only ADC. In single-channel operation, there is one package. analog input (AIN0) and the AIN1/VREF pin assumes its VREF 2. Lowest power 12-bit dual-/single-channel ADC. function. This VREF pin allows the user access to the part’s 3. Flexible power management options, including automatic internal 2.5 V reference, or the VREF pin can be overdriven by an power-down after conversion. external reference to provide the reference voltage for the part. This external reference voltage has a range of 2.5 V to V 4. Read-only ADC capability. DD. The analog input range on AIN0 is 0 to VREF. 5. Analog input range from 0 V to VREF. In dual-channel operation, the AIN1/VREF pin assumes its AIN1 6. Versatile serial input/output port (SPI/QSPI/MICROWIRE/ function, providing a second analog input channel. In this case, DSP compatible).
