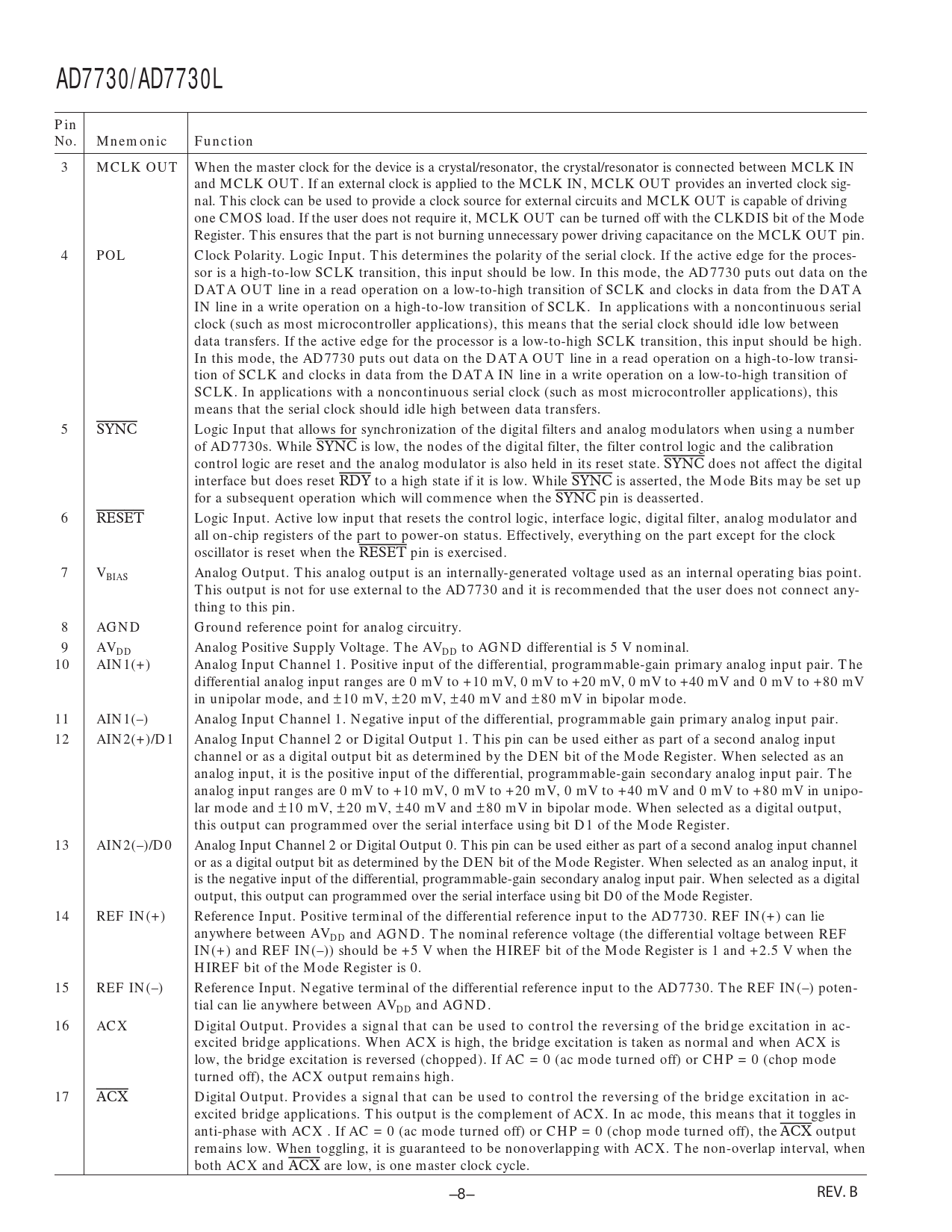

AD7730/AD7730L Pin No. Mnemonic Function
3 MCLK OUT When the master clock for the device is a crystal/resonator, the crystal/resonator is connected between MCLK IN and MCLK OUT. If an external clock is applied to the MCLK IN, MCLK OUT provides an inverted clock sig- nal. This clock can be used to provide a clock source for external circuits and MCLK OUT is capable of driving one CMOS load. If the user does not require it, MCLK OUT can be turned off with the CLKDIS bit of the Mode Register. This ensures that the part is not burning unnecessary power driving capacitance on the MCLK OUT pin. 4 POL Clock Polarity. Logic Input. This determines the polarity of the serial clock. If the active edge for the proces- sor is a high-to-low SCLK transition, this input should be low. In this mode, the AD7730 puts out data on the DATA OUT line in a read operation on a low-to-high transition of SCLK and clocks in data from the DATA IN line in a write operation on a high-to-low transition of SCLK. In applications with a noncontinuous serial clock (such as most microcontroller applications), this means that the serial clock should idle low between data transfers. If the active edge for the processor is a low-to-high SCLK transition, this input should be high. In this mode, the AD7730 puts out data on the DATA OUT line in a read operation on a high-to-low transi- tion of SCLK and clocks in data from the DATA IN line in a write operation on a low-to-high transition of SCLK. In applications with a noncontinuous serial clock (such as most microcontroller applications), this means that the serial clock should idle high between data transfers. 5 SYNC Logic Input that allows for synchronization of the digital filters and analog modulators when using a number of AD7730s. While SYNC is low, the nodes of the digital filter, the filter control logic and the calibration control logic are reset and the analog modulator is also held in its reset state. SYNC does not affect the digital interface but does reset RDY to a high state if it is low. While SYNC is asserted, the Mode Bits may be set up for a subsequent operation which will commence when the SYNC pin is deasserted. 6 RESET Logic Input. Active low input that resets the control logic, interface logic, digital filter, analog modulator and all on-chip registers of the part to power-on status. Effectively, everything on the part except for the clock oscillator is reset when the RESET pin is exercised. 7 VBIAS Analog Output. This analog output is an internally-generated voltage used as an internal operating bias point. This output is not for use external to the AD7730 and it is recommended that the user does not connect any- thing to this pin. 8 AGND Ground reference point for analog circuitry. 9 AVDD Analog Positive Supply Voltage. The AVDD to AGND differential is 5 V nominal. 10 AIN1(+) Analog Input Channel 1. Positive input of the differential, programmable-gain primary analog input pair. The differential analog input ranges are 0 mV to +10 mV, 0 mV to +20 mV, 0 mV to +40 mV and 0 mV to +80 mV in unipolar mode, and ± 10 mV, ± 20 mV, ± 40 mV and ± 80 mV in bipolar mode. 11 AIN1(–) Analog Input Channel 1. Negative input of the differential, programmable gain primary analog input pair. 12 AIN2(+)/D1 Analog Input Channel 2 or Digital Output 1. This pin can be used either as part of a second analog input channel or as a digital output bit as determined by the DEN bit of the Mode Register. When selected as an analog input, it is the positive input of the differential, programmable-gain secondary analog input pair. The analog input ranges are 0 mV to +10 mV, 0 mV to +20 mV, 0 mV to +40 mV and 0 mV to +80 mV in unipo- lar mode and ±10 mV, ± 20 mV, ±40 mV and ± 80 mV in bipolar mode. When selected as a digital output, this output can programmed over the serial interface using bit D1 of the Mode Register. 13 AIN2(–)/D0 Analog Input Channel 2 or Digital Output 0. This pin can be used either as part of a second analog input channel or as a digital output bit as determined by the DEN bit of the Mode Register. When selected as an analog input, it is the negative input of the differential, programmable-gain secondary analog input pair. When selected as a digital output, this output can programmed over the serial interface using bit D0 of the Mode Register. 14 REF IN(+) Reference Input. Positive terminal of the differential reference input to the AD7730. REF IN(+) can lie anywhere between AVDD and AGND. The nominal reference voltage (the differential voltage between REF IN(+) and REF IN(–)) should be +5 V when the HIREF bit of the Mode Register is 1 and +2.5 V when the HIREF bit of the Mode Register is 0. 15 REF IN(–) Reference Input. Negative terminal of the differential reference input to the AD7730. The REF IN(–) poten- tial can lie anywhere between AVDD and AGND. 16 ACX Digital Output. Provides a signal that can be used to control the reversing of the bridge excitation in ac- excited bridge applications. When ACX is high, the bridge excitation is taken as normal and when ACX is low, the bridge excitation is reversed (chopped). If AC = 0 (ac mode turned off) or CHP = 0 (chop mode turned off), the ACX output remains high. 17 ACX Digital Output. Provides a signal that can be used to control the reversing of the bridge excitation in ac- excited bridge applications. This output is the complement of ACX. In ac mode, this means that it toggles in anti-phase with ACX . If AC = 0 (ac mode turned off) or CHP = 0 (chop mode turned off), the ACX output remains low. When toggling, it is guaranteed to be nonoverlapping with ACX. The non-overlap interval, when both ACX and ACX are low, is one master clock cycle. –8– REV. B
