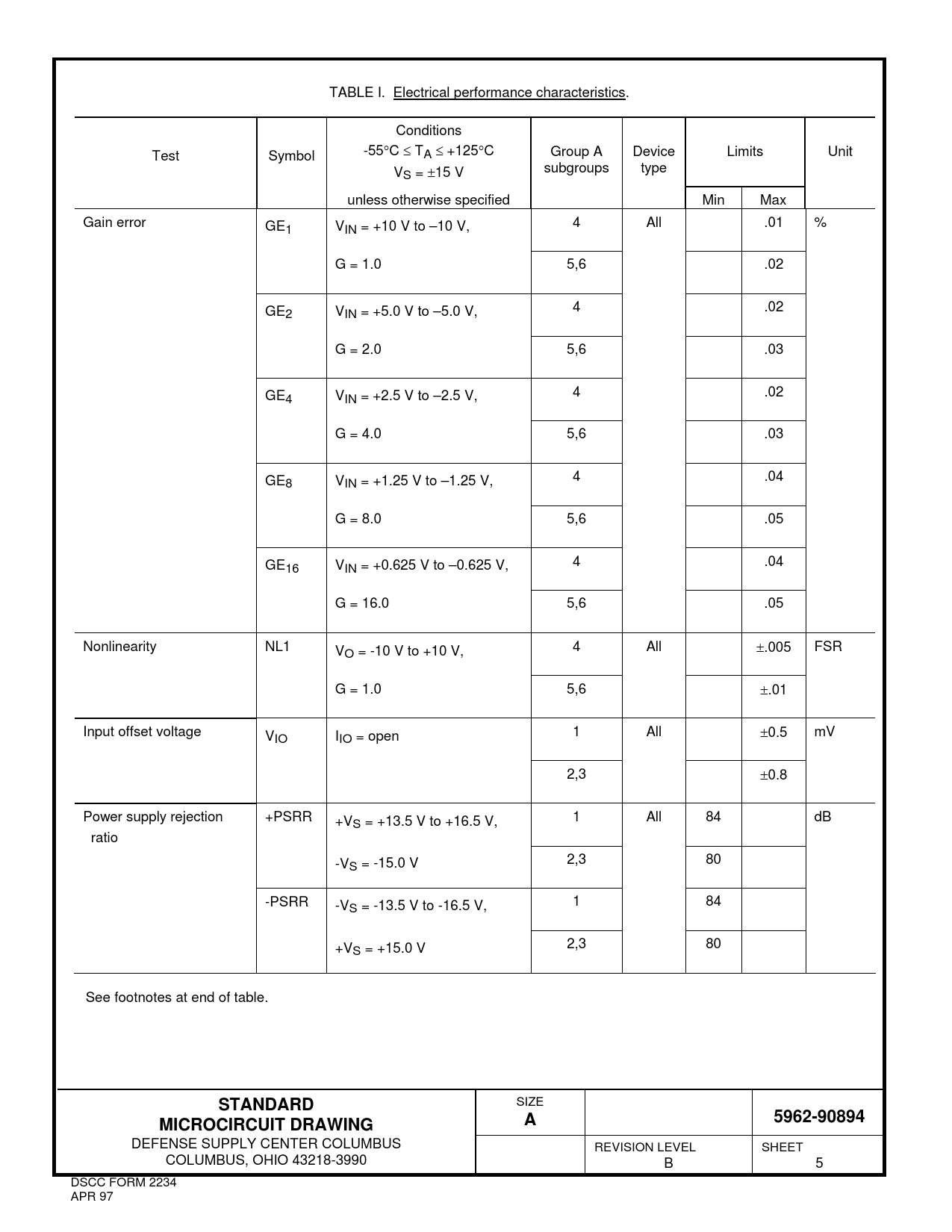

TABLE I. Electrical performance characteristics. Conditions Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits Unit V subgroups type S = ±15 V unless otherwise specified Min Max Gain error GE1 VIN = +10 V to –10 V, 4 All .01 % G = 1.0 5,6 .02 GE2 VIN = +5.0 V to –5.0 V, 4 .02 G = 2.0 5,6 .03 GE4 VIN = +2.5 V to –2.5 V, 4 .02 G = 4.0 5,6 .03 GE8 VIN = +1.25 V to –1.25 V, 4 .04 G = 8.0 5,6 .05 GE16 VIN = +0.625 V to –0.625 V, 4 .04 G = 16.0 5,6 .05 Nonlinearity NL1 VO = -10 V to +10 V, 4 All ±.005 FSR G = 1.0 5,6 ±.01 Input offset voltage VIO IIO = open 1 All ±0.5 mV 2,3 ±0.8 Power supply rejection +PSRR +VS = +13.5 V to +16.5 V, 1 All 84 dB ratio -VS = -15.0 V 2,3 80 -PSRR -VS = -13.5 V to -16.5 V, 1 84 +VS = +15.0 V 2,3 80 See footnotes at end of table.
