Datasheet AD524 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Precision Instrumentation Amplifier |
| Pages / Page | 29 / 8 — AD524. AD524C AD524S. Parameter. Min. Typ. Max. Unit. ±18 ±6. ±18. 5.0 |
| Revision | G |
| File Format / Size | PDF / 497 Kb |
| Document Language | English |

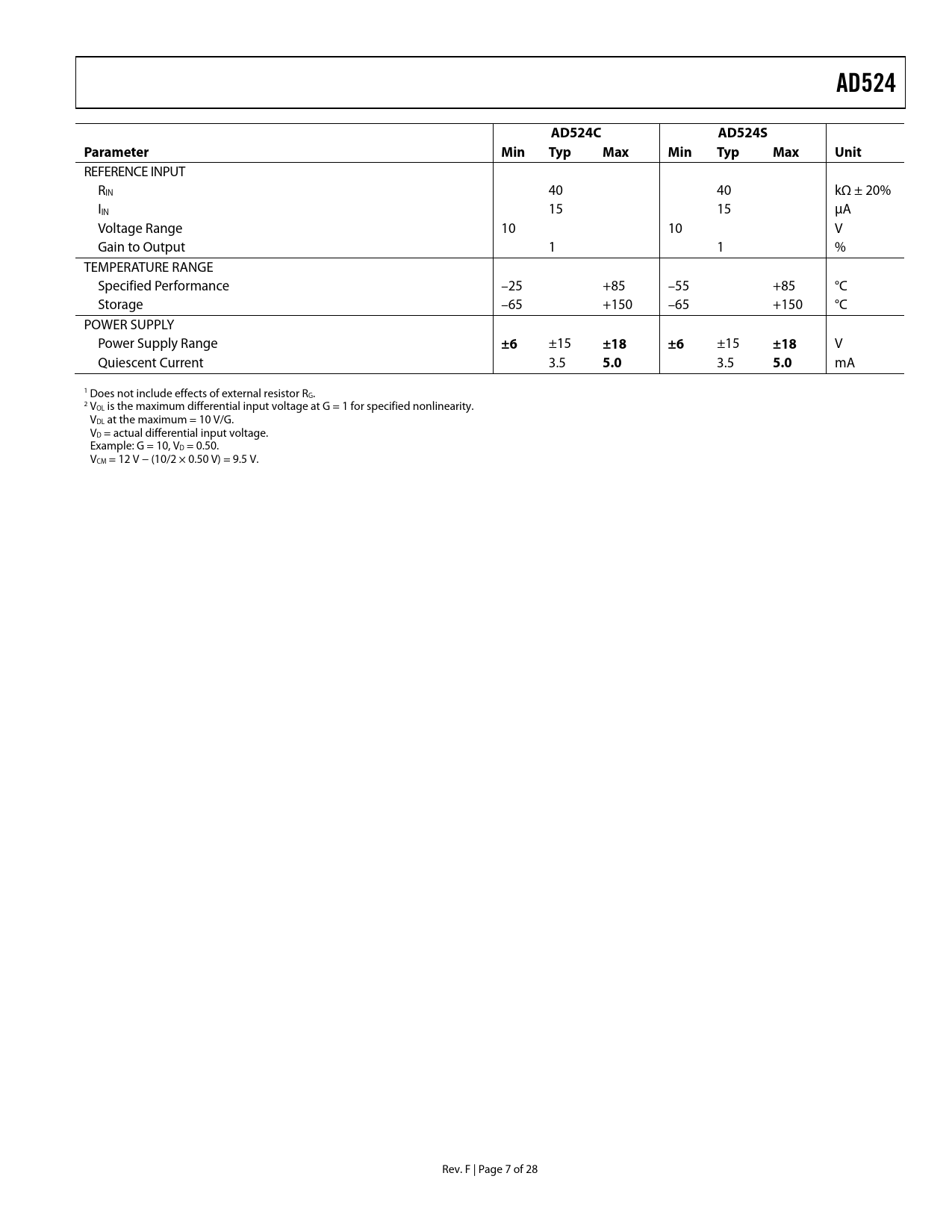

AD524. AD524C AD524S. Parameter. Min. Typ. Max. Unit. ±18 ±6. ±18. 5.0
Model Line for this Datasheet
AD524
Text Version of Document
AD524 AD524C AD524S Parameter Min Typ Max Min Typ Max Unit
REFERENCE INPUT RIN 40 40 kΩ ± 20% IIN 15 15 μA Voltage Range 10 10 V Gain to Output 1 1 % TEMPERATURE RANGE Specified Performance –25 +85 –55 +85 °C Storage –65 +150 –65 +150 °C POWER SUPPLY Power Supply Range
±6
±15
±18 ±6
±15
±18
V Quiescent Current 3.5
5.0
3.5
5.0
mA 1 Does not include effects of external resistor RG. 2 VOL is the maximum differential input voltage at G = 1 for specified nonlinearity. VDL at the maximum = 10 V/G. VD = actual differential input voltage. Example: G = 10, VD = 0.50. VCM = 12 V − (10/2 × 0.50 V) = 9.5 V. Rev. F | Page 7 of 28 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS CONNECTION DIAGRAMS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION INPUT PROTECTION INPUT OFFSET AND OUTPUT OFFSET GAIN INPUT BIAS CURRENTS COMMON-MODE REJECTION GROUNDING SENSE TERMINAL REFERENCE TERMINAL PROGRAMMABLE GAIN AUTOZERO CIRCUITS ERROR BUDGET ANALYSIS OUTLINE DIMENSIONS ORDERING GUIDE
