Datasheet HMC1094 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 50 dB, Logarithmic Detector, 1 - 23 GHz |
| Pages / Page | 15 / 6 — Data Sheet. HMC1094. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| File Format / Size | PDF / 597 Kb |
| Document Language | English |

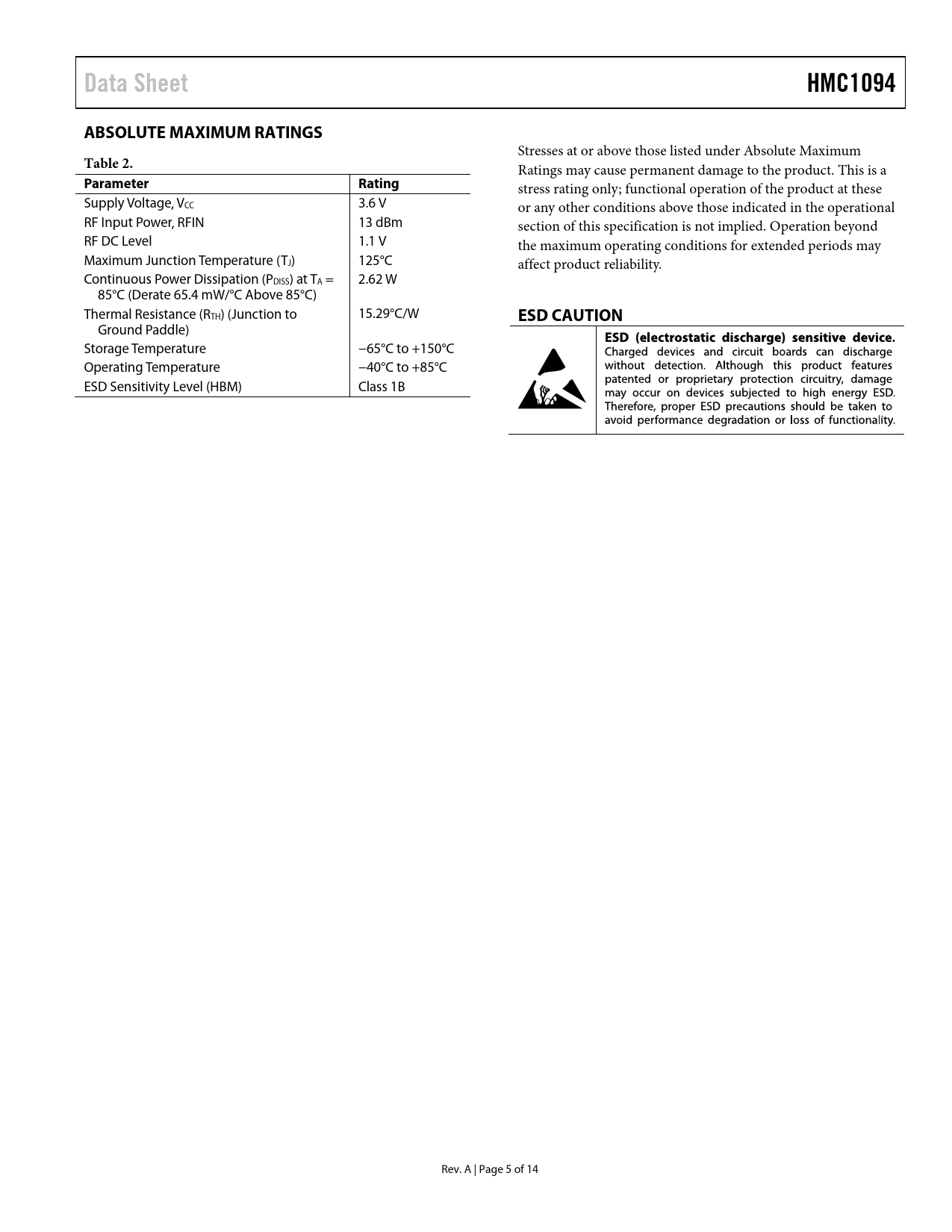

Data Sheet. HMC1094. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Text Version of Document
Data Sheet HMC1094 ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage, VCC 3.6 V or any other conditions above those indicated in the operational RF Input Power, RFIN 13 dBm section of this specification is not implied. Operation beyond RF DC Level 1.1 V the maximum operating conditions for extended periods may Maximum Junction Temperature (TJ) 125°C affect product reliability. Continuous Power Dissipation (PDISS) at TA = 2.62 W 85°C (Derate 65.4 mW/°C Above 85°C) Thermal Resistance (RTH) (Junction to 15.29°C/W
