Datasheet AD8311 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 50 dB GSM PA Controller |
| Pages / Page | 25 / 6 — AD8311. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameters Ratings. ESD CAUTION |
| Revision | A |
| File Format / Size | PDF / 551 Kb |
| Document Language | English |

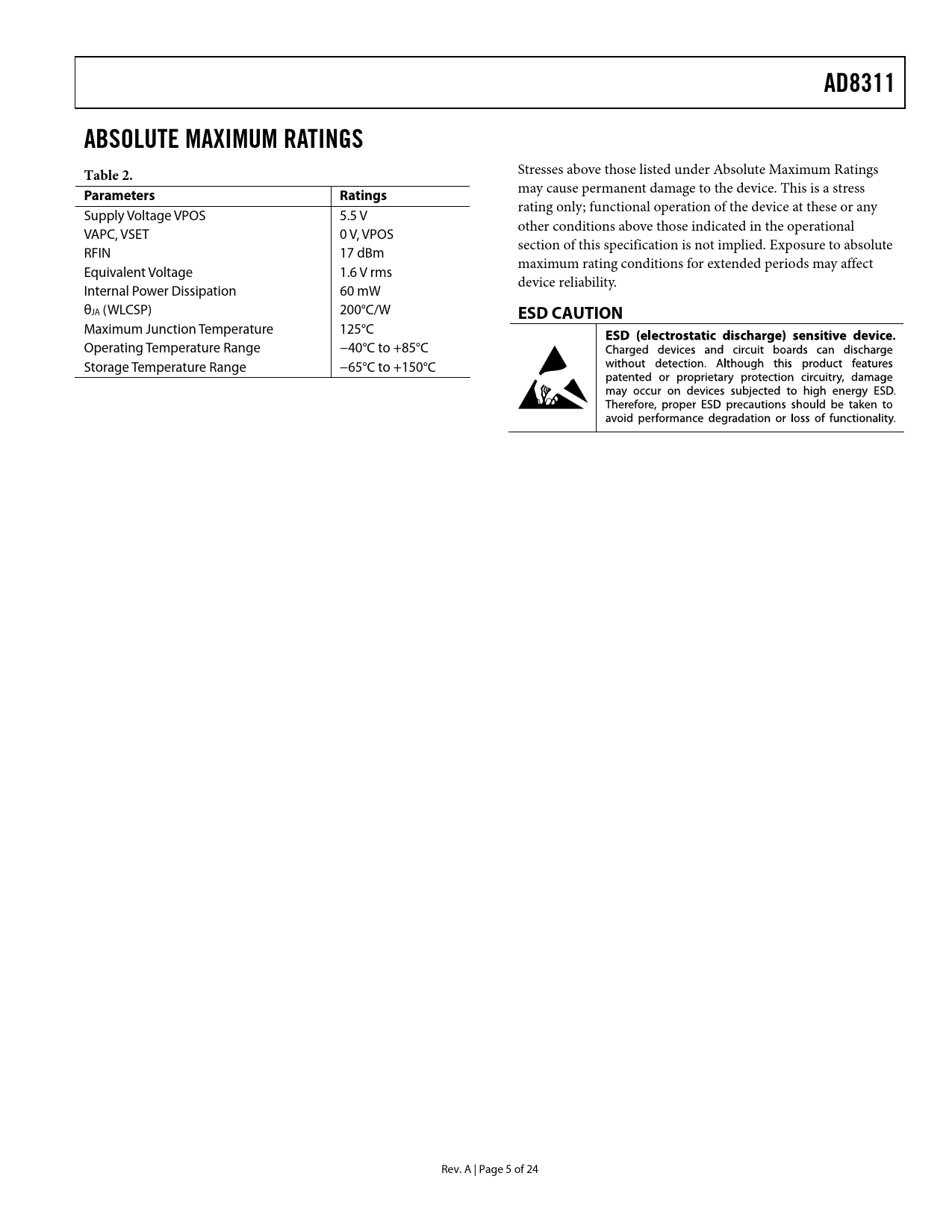

AD8311. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameters Ratings. ESD CAUTION
Text Version of Document
AD8311 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameters Ratings
rating only; functional operation of the device at these or any Supply Voltage VPOS 5.5 V other conditions above those indicated in the operational VAPC, VSET 0 V, VPOS section of this specification is not implied. Exposure to absolute RFIN 17 dBm maximum rating conditions for extended periods may affect Equivalent Voltage 1.6 V rms device reliability. Internal Power Dissipation 60 mW θJA (WLCSP) 200°C/W
ESD CAUTION
Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. A | Page 5 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC THEORY CONTROLLER-MODE LOG AMPS CONTROL LOOP DYNAMICS BASIC CONNECTIONS RANGE ON VSET AND RFIN TRANSIENT RESPONSE MOBILE HANDSET POWER CONTROL EXAMPLE POWER-ON AND POWER-OFF INPUT COUPLING OPTIONS TEMPERATURE DRIFT DEVICE CALIBRATION AND ERROR CALCULATION SELECTING CALIBRATION POINTS TO IMPROVE ACCURACY OVER A REDUCED RANGE DEVICE HANDLING EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
