Datasheet AD8318-EP (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 1 MHz TO 8 GHz, 70 dB Logarithmic Detector/Controller |
| Pages / Page | 12 / 6 — AD8318-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. … |
| File Format / Size | PDF / 439 Kb |
| Document Language | English |

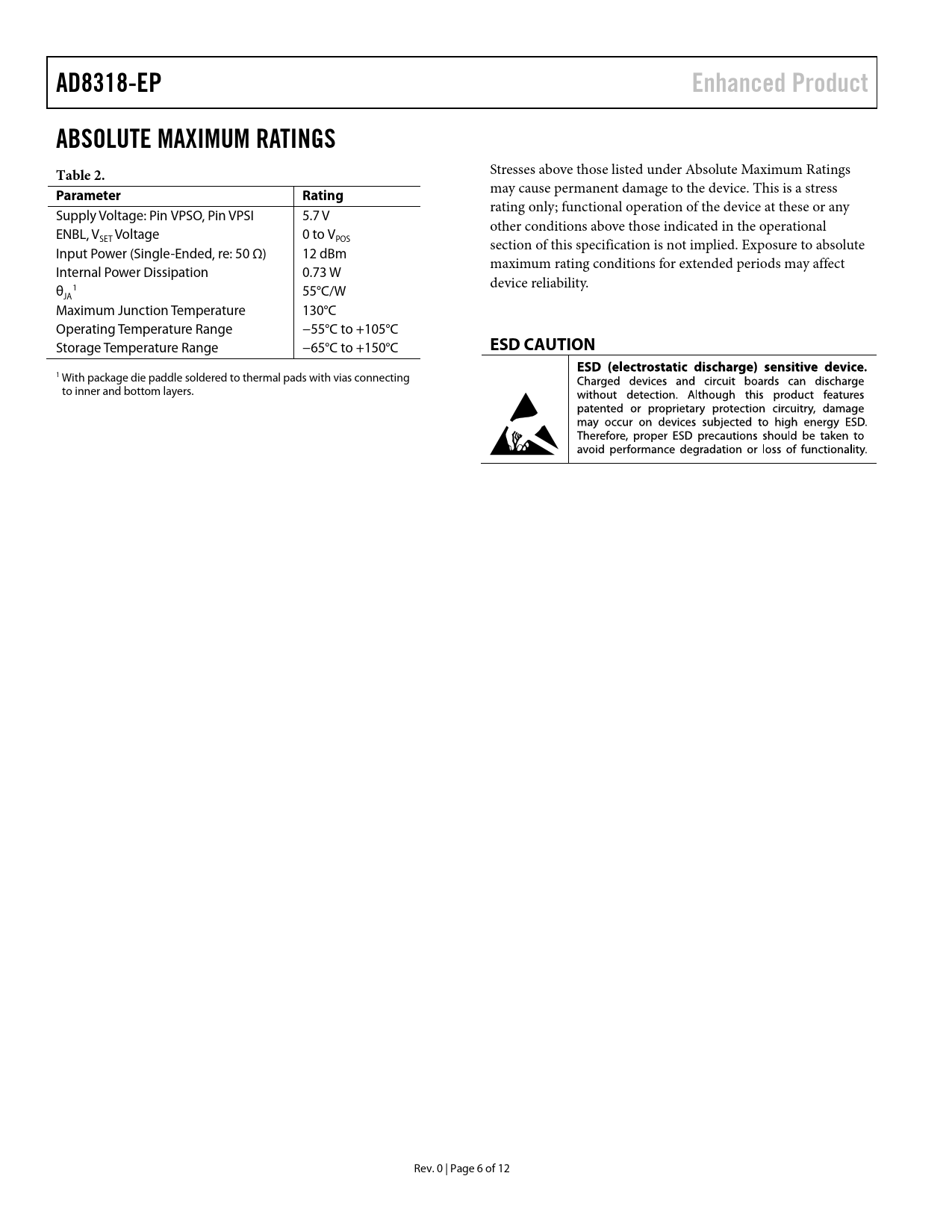

AD8318-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 6
AD8318-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any Supply Voltage: Pin VPSO, Pin VPSI 5.7 V other conditions above those indicated in the operational ENBL, V Voltage 0 to V SET POS section of this specification is not implied. Exposure to absolute Input Power (Single-Ended, re: 50 Ω) 12 dBm maximum rating conditions for extended periods may affect Internal Power Dissipation 0.73 W device reliability. θ 1 55°C/W JA Maximum Junction Temperature 130°C Operating Temperature Range −55°C to +105°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
1 With package die paddle soldered to thermal pads with vias connecting to inner and bottom layers. Rev. 0 | Page 6 of 12 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
