Datasheet AD8310 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Fast, Voltage-Out, DC to 440 MHz, 95 dB Logarithmic Amplifier |
| Pages / Page | 25 / 5 — AD8310. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION |
| Revision | F |
| File Format / Size | PDF / 436 Kb |
| Document Language | English |

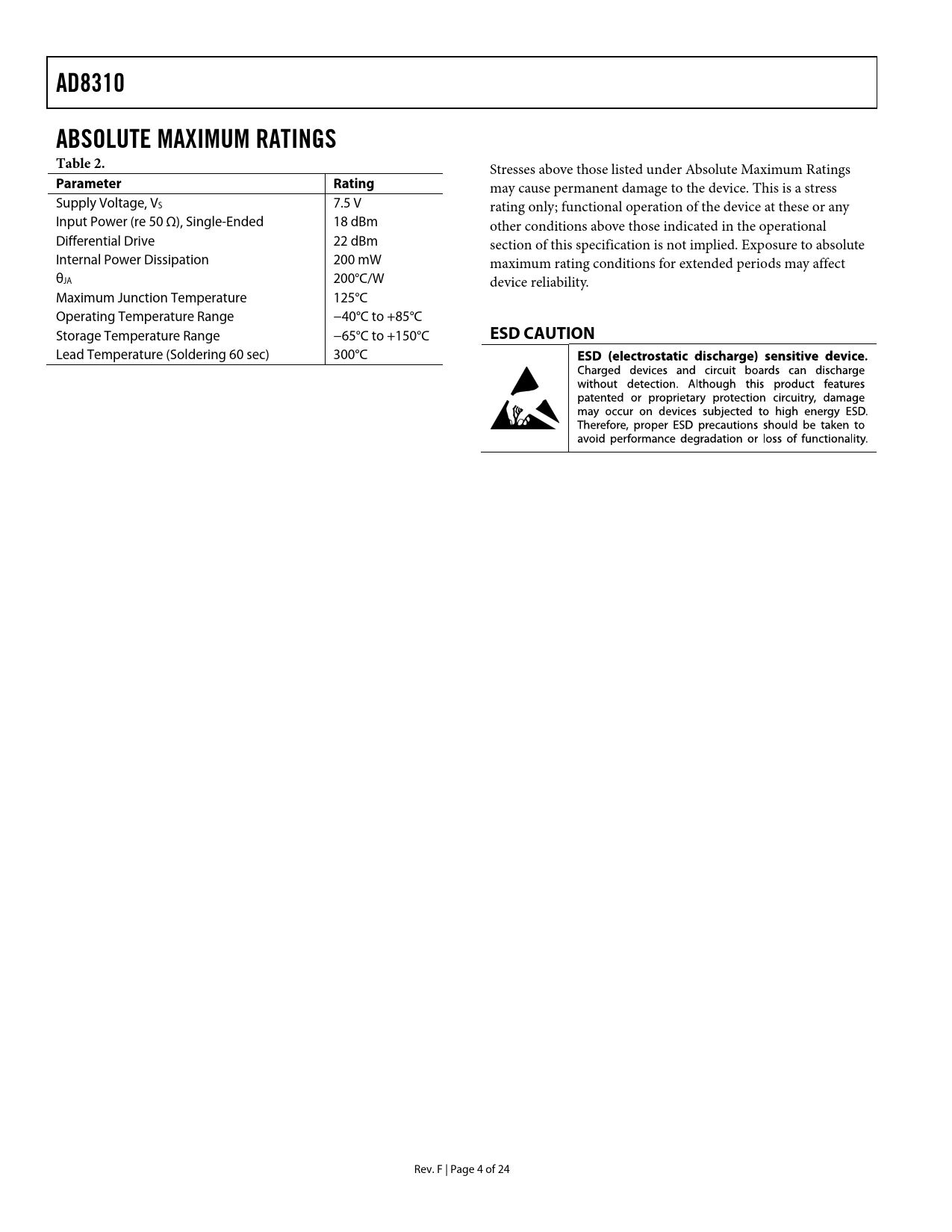

AD8310. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
AD8310
Text Version of Document
AD8310 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage, VS 7.5 V rating only; functional operation of the device at these or any Input Power (re 50 Ω), Single-Ended 18 dBm other conditions above those indicated in the operational Differential Drive 22 dBm section of this specification is not implied. Exposure to absolute Internal Power Dissipation 200 mW maximum rating conditions for extended periods may affect θJA 200°C/W device reliability. Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Lead Temperature (Soldering 60 sec) 300°C Rev. F | Page 4 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION PROGRESSIVE COMPRESSION SLOPE AND INTERCEPT CALIBRATION OFFSET CONTROL PRODUCT OVERVIEW ENABLE INTERFACE INPUT INTERFACE OFFSET INTERFACE OUTPUT INTERFACE USING THE AD8310 BASIC CONNECTIONS TRANSFER FUNCTION IN TERMS OF SLOPE AND INTERCEPT dBV vs. dBm INPUT MATCHING NARROW-BAND MATCHING GENERAL MATCHING PROCEDURE Step 1: Tune Out CIN Step 2: Calculate CO and LO Step 3: Split CO into Two Parts Step 4: Calculate LM SLOPE AND INTERCEPT ADJUSTMENTS INCREASING THE SLOPE TO A FIXED VALUE OUTPUT FILTERING LOWERING THE HIGH-PASS CORNER FREQUENCY OF THE OFFSET COMPENSATION LOOP APPLICATIONS INFORMATION CABLE-DRIVING DC-COUPLED INPUT EVALUATION BOARD DIE INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
