Datasheet LTC2956 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Wake-Up Timer with Pushbutton Control |
| Pages / Page | 28 / 8 — BLOCK DIAGRAM |
| File Format / Size | PDF / 325 Kb |
| Document Language | English |
BLOCK DIAGRAM
Model Line for this Datasheet
- LTC2956CMS-1#PBF LTC2956CMS-1#PBF LTC2956CMS-1#TRPBF LTC2956CMS-1#TRPBF LTC2956CMS-2#PBF LTC2956CMS-2#PBF LTC2956CMS-2#TRPBF LTC2956CMS-2#TRPBF LTC2956CUD-1#PBF LTC2956CUD-1#PBF LTC2956CUD-1#TRPBF LTC2956CUD-1#TRPBF LTC2956CUD-2#PBF LTC2956CUD-2#PBF LTC2956CUD-2#TRPBF LTC2956CUD-2#TRPBF LTC2956IMS-1#PBF LTC2956IMS-1#PBF LTC2956IMS-1#TRPBF LTC2956IMS-1#TRPBF LTC2956IMS-2#PBF LTC2956IMS-2#PBF LTC2956IMS-2#TRPBF LTC2956IMS-2#TRPBF LTC2956IUD-1#PBF LTC2956IUD-1#PBF LTC2956IUD-1#TRPBF LTC2956IUD-1#TRPBF LTC2956IUD-2#PBF LTC2956IUD-2#PBF LTC2956IUD-2#TRPBF LTC2956IUD-2#TRPBF
Text Version of Document
LTC2956

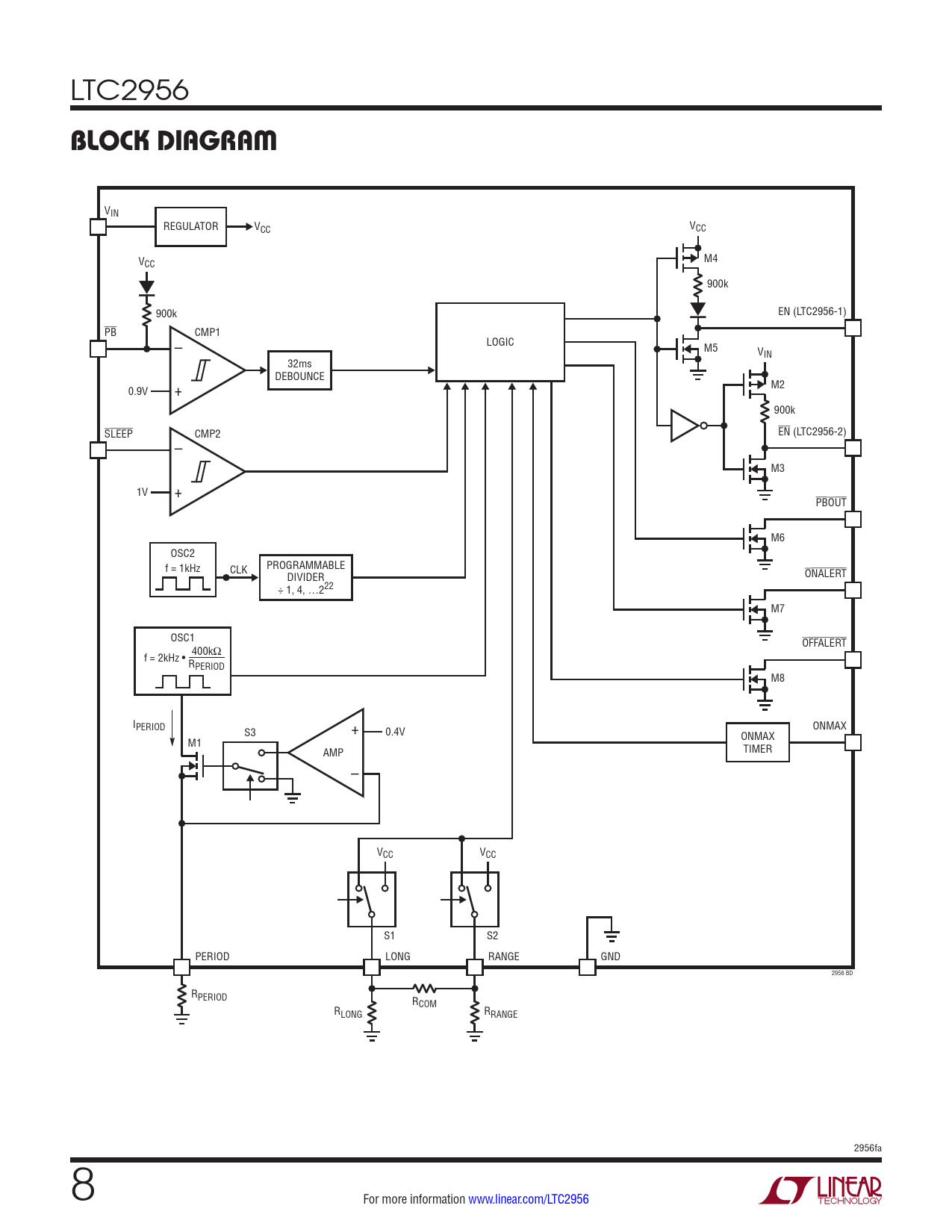

BLOCK DIAGRAM
VIN REGULATOR V V CC CC M4 VCC 900k 900k EN (LTC2956-1) PB CMP1 – LOGIC M5 VIN 32ms DEBOUNCE 0.9V + M2 900k SLEEP CMP2 EN (LTC2956-2) – M3 1V + PBOUT M6 OSC2 f = 1kHz CLK PROGRAMMABLE ONALERT DIVIDER ÷ 1, 4, …222 M7 OSC1 OFFALERT f = 2kHz • 400kΩ RPERIOD M8 I + PERIOD ONMAX S3 0.4V ONMAX M1 TIMER AMP – VCC VCC S1 S2 PERIOD LONG RANGE GND 2956 BD RPERIOD RCOM RLONG RRANGE 2956fa 8 For more information www.linear.com/LTC2956
BLOCK DIAGRAM
VIN REGULATOR V V CC CC M4 VCC 900k 900k EN (LTC2956-1) PB CMP1 – LOGIC M5 VIN 32ms DEBOUNCE 0.9V + M2 900k SLEEP CMP2 EN (LTC2956-2) – M3 1V + PBOUT M6 OSC2 f = 1kHz CLK PROGRAMMABLE ONALERT DIVIDER ÷ 1, 4, …222 M7 OSC1 OFFALERT f = 2kHz • 400kΩ RPERIOD M8 I + PERIOD ONMAX S3 0.4V ONMAX M1 TIMER AMP – VCC VCC S1 S2 PERIOD LONG RANGE GND 2956 BD RPERIOD RCOM RLONG RRANGE 2956fa 8 For more information www.linear.com/LTC2956
