Datasheet ADA4870-KGD (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | High Speed, High Voltage, 1 A Output Drive Amplifier |
| Pages / Page | 8 / 5 — Known Good Die. ADA4870-KGD. Parameter. Test Conditions/Comments. Min. … |
| File Format / Size | PDF / 224 Kb |
| Document Language | English |

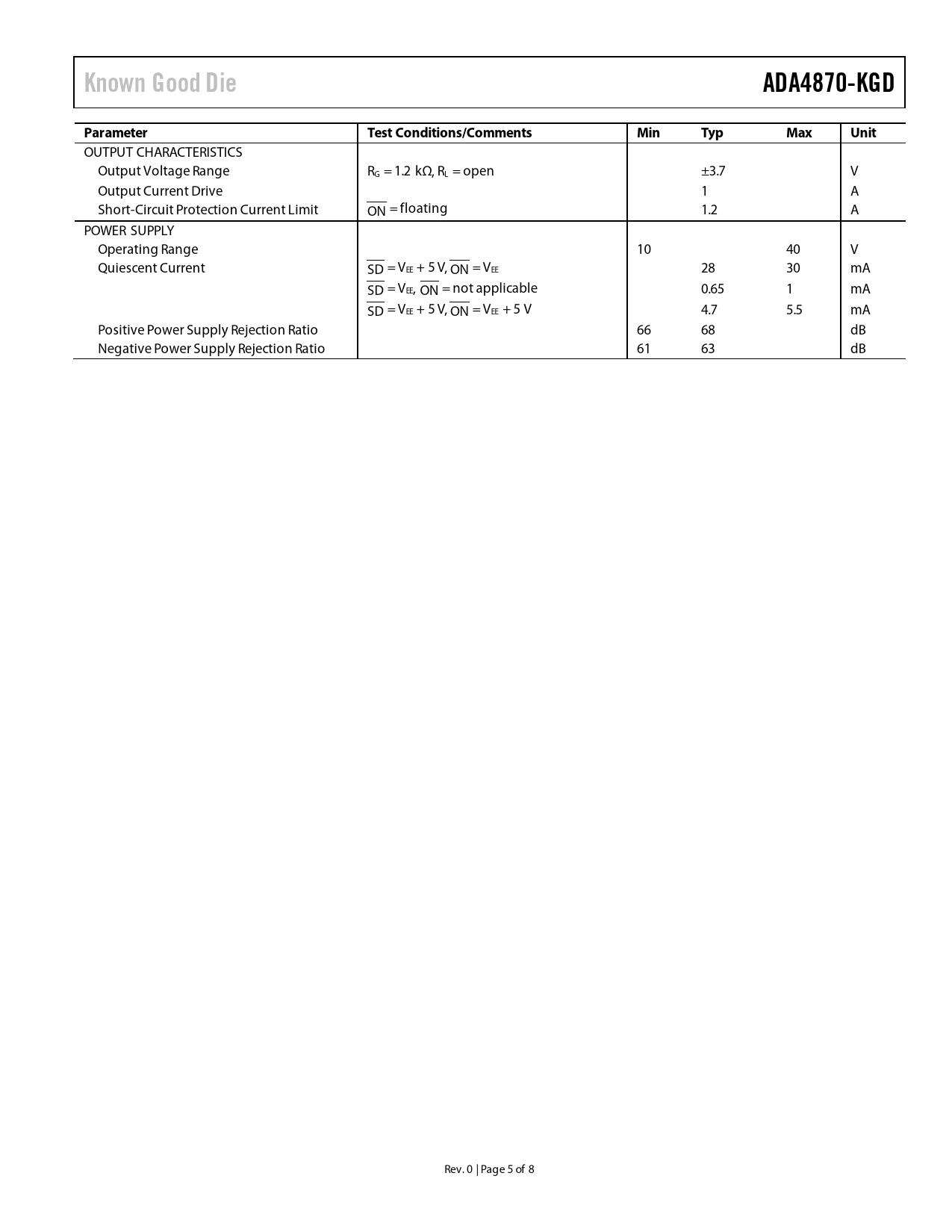

Known Good Die. ADA4870-KGD. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Known Good Die ADA4870-KGD Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Range RG = 1.2 kΩ, RL = open ±3.7 V Output Current Drive 1 A Short-Circuit Protection Current Limit ON = floating 1.2 A POWER SUPPLY Operating Range 10 40 V Quiescent Current SD = VEE + 5 V, ON = VEE 28 30 mA SD = VEE, ON = not applicable 0.65 1 mA SD = VEE + 5 V, ON = VEE + 5 V 4.7 5.5 mA Positive Power Supply Rejection Ratio 66 68 dB Negative Power Supply Rejection Ratio 61 63 dB Rev. 0 | Page 5 of 8 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±20 V SUPPLY ±5 V SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
