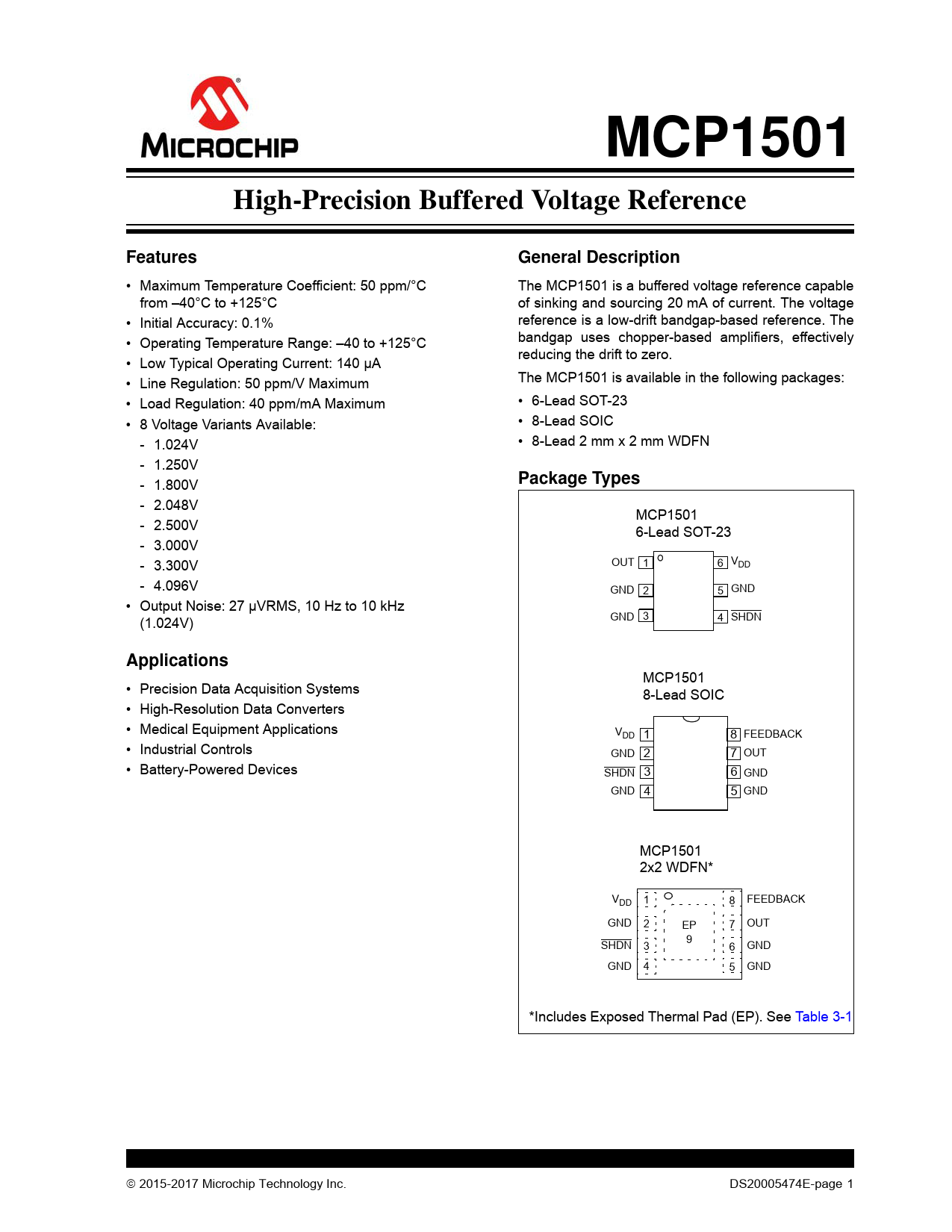

MCP1501
High-Precision Buffered Voltage Reference
Features General Description • Maximum Temperature Coefficient: 50 ppm/°C
from –40°C to +125°C
• Initial Accuracy: 0.1%
• Operating Temperature Range: –40 to +125°C
• Low Typical Operating Current: 140 μA
• Line Regulation: 50 ppm/V Maximum
• Load Regulation: 40 ppm/mA Maximum
• 8 Voltage Variants Available:
-1.024V
-1.250V
-1.800V
-2.048V
-2.500V
-3.000V
-3.300V
-4.096V
• Output Noise: 27 µVRMS, 10 Hz to 10 kHz
(1.024V) The MCP1501 is a buffered voltage reference capable
of sinking and sourcing 20 mA of current. The voltage
reference is a low-drift bandgap-based reference. The
bandgap uses chopper-based amplifiers, effectively
reducing the drift to zero.
The MCP1501 is available in the following packages:
• 6-Lead SOT-23
• 8-Lead SOIC
• 8-Lead 2 mm x 2 mm WDFN Package Types
MCP1501
6-Lead SOT-23
OUT 1 6 VDD GND 2 5 GND GND 3 4 SHDN Applications
•
•
•
•
• Precision Data Acquisition Systems
High-Resolution Data Converters
Medical Equipment Applications
Industrial Controls
Battery-Powered Devices MCP1501
8-Lead SOIC
VDD 1 8 FEEDBACK GND 2 7 OUT SHDN 3 6 GND GND 4 5 GND MCP1501
2x2 WDFN*
VDD 1 GND 2 SHDN 3 GND 4 EP
9 8 FEEDBACK 7 OUT 6 GND 5 GND *Includes Exposed Thermal Pad (EP). See Table 3-1 2015-2017 Microchip Technology Inc. DS20005474E-page 1
