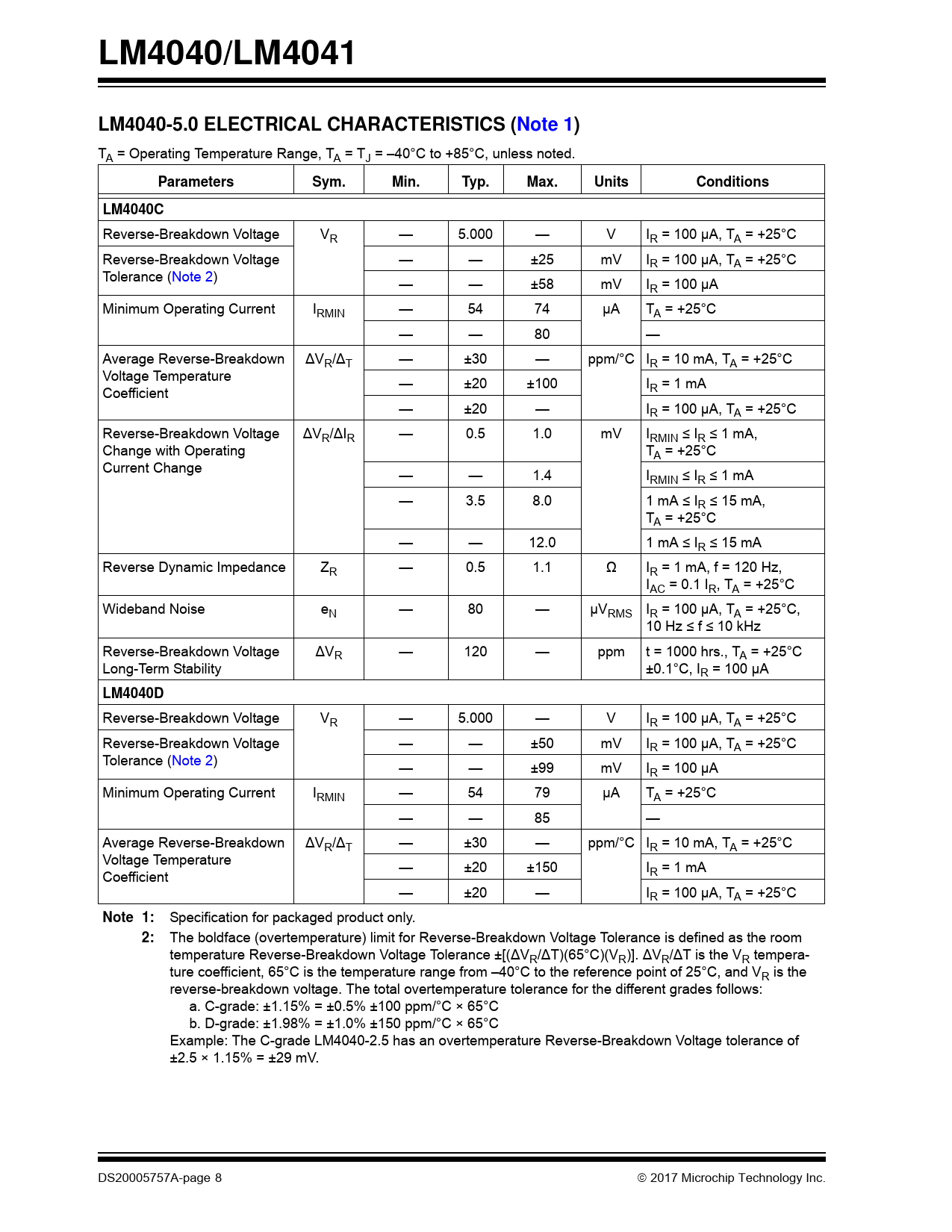

LM4040/LM4041 LM4040-4.1 ELECTRICAL CHARACTERISTICS (Note 1 )
TA = Operating Temperature Range, TA = TJ = –40°C to +85°C, unless noted.
Parameters Sym. Min. Typ. Max. Units Conditions LM4040C
Reverse-Breakdown Voltage VR — 4.096 — V IR = 100 µA, TA = +25°C Reverse-Breakdown Voltage — — ±20 mV IR = 100 µA, TA = +25°C Tolerance (Note 2) — — ±47 mV IR = 100 µA Minimum Operating Current IRMIN — 50 68 µA TA = +25°C — — 73 — Average Reverse-Breakdown ∆VR/∆T — ±30 — ppm/°C IR = 10 mA, TA = +25°C Voltage Temperature — ±20 ±100 I Coefficient R = 1 mA — ±20 — IR = 100 µA, TA = +25°C Reverse-Breakdown Voltage ∆VR/∆IR — 0.5 0.9 mV IRMIN ≤ IR ≤ 1 mA, Change with Operating TA = +25°C Current Change — — 1.2 IRMIN ≤ IR ≤ 1 mA — 3.0 7.0 1 mA ≤ IR ≤ 15 mA, TA = +25°C — — 10.0 1 mA ≤ IR ≤ 15 mA Reverse Dynamic Impedance ZR — 0.5 1.0 Ω IR = 1 mA, f = 120 Hz, IAC = 0.1 IR, TA = +25°C Wideband Noise eN — 80 — µVRMS IR = 100 µA, TA = +25°C, 10 Hz ≤ f ≤ 10 kHz Reverse-Breakdown Voltage ∆VR — 120 — ppm t = 1000 hrs., TA = +25°C Long-Term Stability ±0.1°C, IR = 100 µA
LM4040D
Reverse-Breakdown Voltage VR — 4.096 — V IR = 100 µA, TA = +25°C Reverse-Breakdown Voltage — — ±41 mV IR = 100 µA, TA = +25°C Tolerance (Note 2) — — ±81 mV IR = 100 µA Minimum Operating Current IRMIN — 50 73 µA TA = +25°C — — 78 — Average Reverse-Breakdown ∆VR/∆T — ±30 — ppm/°C IR = 10 mA, TA = +25°C Voltage Temperature — ±20 ±150 I Coefficient R = 1 mA — ±20 — IR = 100 µA, TA = +25°C
Note 1:
Specification for packaged product only.
2:
The boldface (overtemperature) limit for Reverse-Breakdown Voltage Tolerance is defined as the room temperature Reverse-Breakdown Voltage Tolerance ±[(∆VR/∆T)(65°C)(VR)]. ∆VR/∆T is the VR tempera- ture coefficient, 65°C is the temperature range from –40°C to the reference point of 25°C, and VR is the reverse-breakdown voltage. The total overtemperature tolerance for the different grades follows: a. C-grade: ±1.15% = ±0.5% ±100 ppm/°C × 65°C b. D-grade: ±1.98% = ±1.0% ±150 ppm/°C × 65°C Example: The C-grade LM4040-2.5 has an overtemperature Reverse-Breakdown Voltage tolerance of ±2.5 × 1.15% = ±29 mV. DS20005757A-page 6  2017 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves 3.0 Pin Descriptions 4.0 Application Information 4.1 Schottky Diode 4.2 Conventional Shunt Regulator 4.3 Adjustable Regulator 5.0 Typical Application Circuits 6.0 Packaging Information 6.1 Package Marking Information APPENDIX A: Revision History Product Identification System Worldwide Sales and Service
