| Description | 4-Channel, 2-Wire Bus Multiplexer with Capacitance Buffering |
| Pages / Page | 20 / 2 — ABSOLUTE AXI U RATI GS (Note 1). PACKAGE/ORDER I FOR ATIO. Order Options. … |
| File Format / Size | PDF / 275 Kb |
| Document Language | English |
ABSOLUTE AXI U RATI GS (Note 1). PACKAGE/ORDER I FOR ATIO. Order Options. ELECTRICAL CHARACTERISTICS The
Model Line for this Datasheet
Text Version of Document

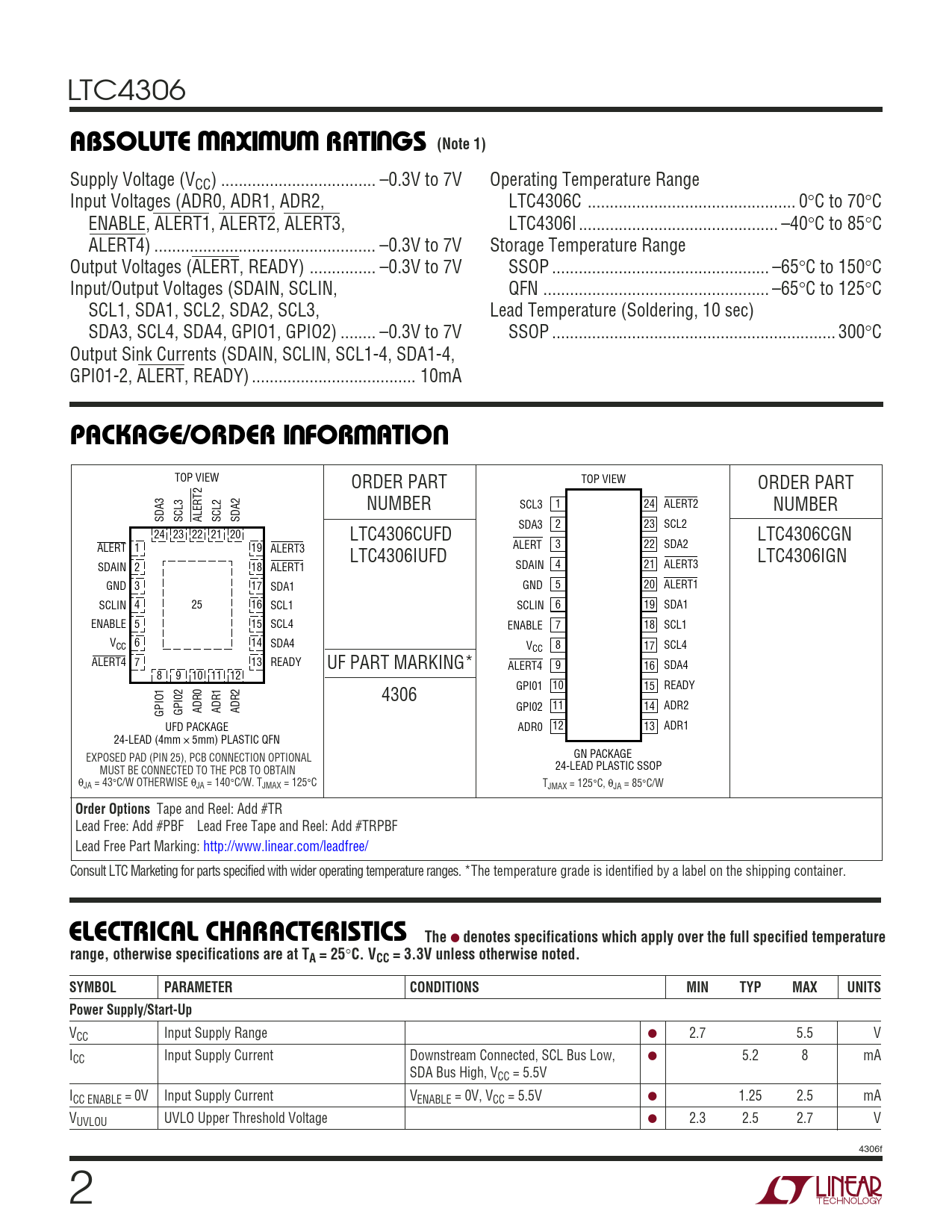

LTC4306
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Supply Voltage (VCC) ... –0.3V to 7V Operating Temperature Range Input Voltages (ADR0, ADR1, ADR2, LTC4306C ... 0°C to 70°C ENABLE, ALERT1, ALERT2, ALERT3, LTC4306I ... –40°C to 85°C ALERT4) .. –0.3V to 7V Storage Temperature Range Output Voltages (ALERT, READY) ... –0.3V to 7V SSOP ... –65°C to 150°C Input/Output Voltages (SDAIN, SCLIN, QFN ... –65°C to 125°C SCL1, SDA1, SCL2, SDA2, SCL3, Lead Temperature (Soldering, 10 sec) SDA3, SCL4, SDA4, GPIO1, GPIO2) .. –0.3V to 7V SSOP .. 300°C Output Sink Currents (SDAIN, SCLIN, SCL1-4, SDA1-4, GPI01-2, ALERT, READY) ... 10mA
