TYPICAL PERFOR A CE CHARACTERISTICS. LTC5505-1 Typical Detector. Characteristics, 0.85GHz. Characteristics, 1.85GHz
Model Line for this Datasheet
Text Version of Document
LTC5505-1/LTC5505-2

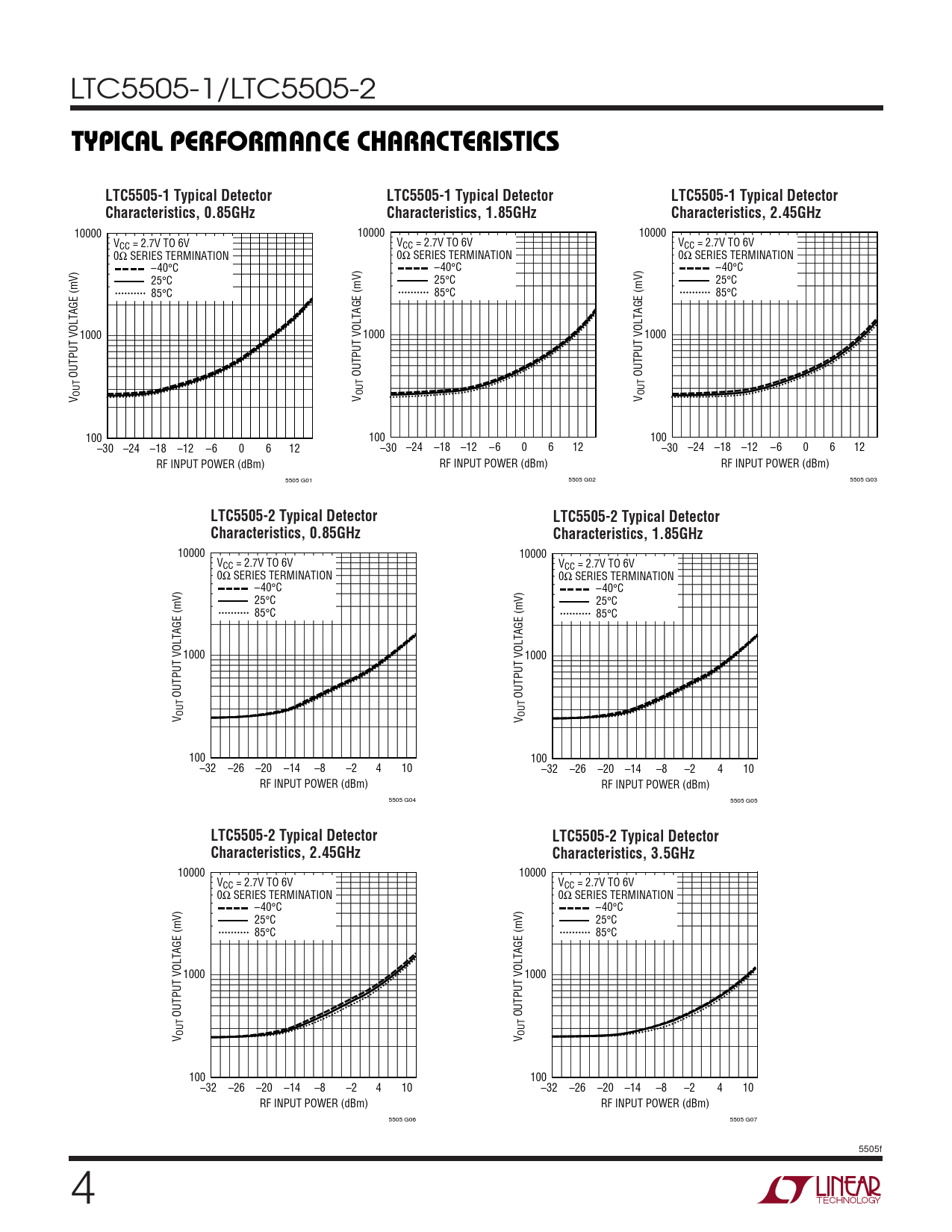

W U TYPICAL PERFOR A CE CHARACTERISTICS LTC5505-1 Typical Detector LTC5505-1 Typical Detector LTC5505-1 Typical Detector Characteristics, 0.85GHz Characteristics, 1.85GHz Characteristics, 2.45GHz
10000 10000 10000 VCC = 2.7V TO 6V VCC = 2.7V TO 6V VCC = 2.7V TO 6V 0Ω SERIES TERMINATION 0Ω SERIES TERMINATION 0Ω SERIES TERMINATION –40°C –40°C –40°C 25°C 25°C 25°C 85°C 85°C 85°C 1000 1000 1000 OUTPUT VOLTAGE (mV) OUTPUT VOLTAGE (mV) OUTPUT VOLTAGE (mV) OUT OUT OUT V V V 100 100 100 –30 –24 –18 –12 –6 0 6 12 –30 –24 –18 –12 –6 0 6 12 –30 –24 –18 –12 –6 0 6 12 RF INPUT POWER (dBm) RF INPUT POWER (dBm) RF INPUT POWER (dBm) 5505 G01 5505 G02 5505 G03
LTC5505-2 Typical Detector LTC5505-2 Typical Detector Characteristics, 0.85GHz Characteristics, 1.85GHz
10000 10000 VCC = 2.7V TO 6V VCC = 2.7V TO 6V 0Ω SERIES TERMINATION 0Ω SERIES TERMINATION –40°C –40°C 25°C 25°C 85°C 85°C 1000 1000 OUTPUT VOLTAGE (mV) OUTPUT VOLTAGE (mV) OUTV OUTV 100 100 –32 –26 –20 –14 –8 –2 4 10 –32 –26 –20 –14 –8 –2 4 10 RF INPUT POWER (dBm) RF INPUT POWER (dBm) 5505 G04 5505 G05
LTC5505-2 Typical Detector LTC5505-2 Typical Detector Characteristics, 2.45GHz Characteristics, 3.5GHz
10000 10000 VCC = 2.7V TO 6V VCC = 2.7V TO 6V 0Ω SERIES TERMINATION 0Ω SERIES TERMINATION –40°C –40°C 25°C 25°C 85°C 85°C 1000 1000 OUTPUT VOLTAGE (mV) OUTPUT VOLTAGE (mV) OUT OUT V V 100 100 –32 –26 –20 –14 –8 –2 4 10 –32 –26 –20 –14 –8 –2 4 10 RF INPUT POWER (dBm) RF INPUT POWER (dBm) 5505 G06 5505 G07 5505f 4
