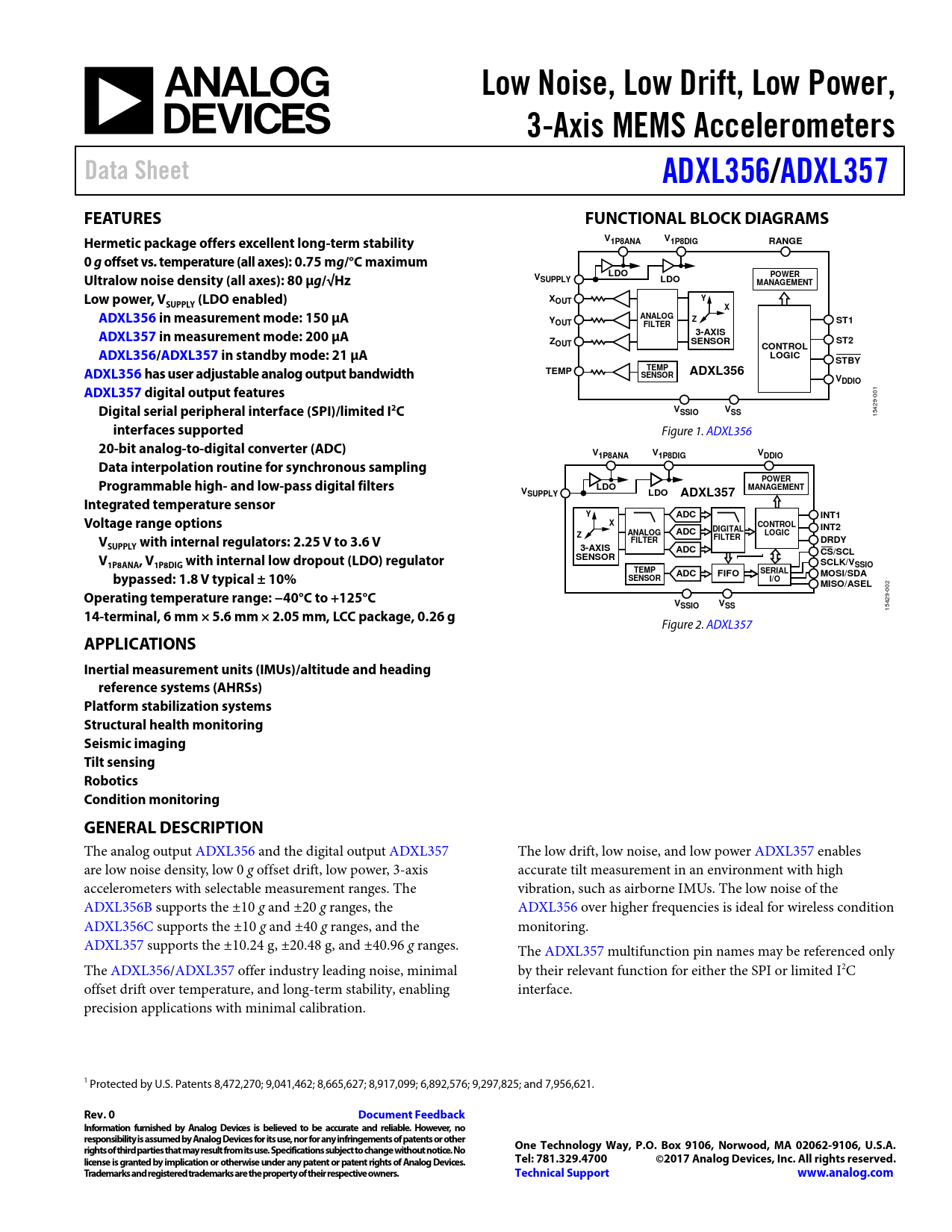

Low Noise, Low Drift, Low Power,. 3-Axis MEMS Accelerometers. Data Sheet. ADXL356/. ADXL357. FEATURES. FUNCTIONAL BLOCK DIAGRAMS
Model Line for this Datasheet
Text Version of Document
Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers Data Sheet ADXL356/ ADXL357 FEATURES FUNCTIONAL BLOCK DIAGRAMS Hermetic package offers excellent long-term stability V1P8ANA V1P8DIG RANGE 0 g offset vs. temperature (all axes): 0.75 mg /°C maximum Ultralow noise density (all axes): 80 µg /√Hz V LDO POWER SUPPLY LDO MANAGEMENT Low power, V (LDO enabled) X Y SUPPLY OUT X ADXL356 i n measurement mode: 150 µA Y ANALOG Z OUT ST1 FILTER ADXL357 i n measurement mode: 200 µA 3-AXIS ZOUT SENSOR ST2 CONTROL ADXL356/ ADXL357 i n standby mode: 21 µA LOGIC STBY ADXL356 h as user adjustable analog output bandwidth TEMP TEMP ADXL356 SENSOR VDDIO ADXL357 d igital output features
001
Digital serial peripheral interface (SPI)/limited I2C VSSIO VSS
15429-
interfaces supported
Figure 1. ADXL356
20-bit analog-to-digital converter (ADC) V1P8ANA V V 1P8DIG DDIO Data interpolation routine for synchronous sampling Programmable high- and low-pass digital filters POWER LDO MANAGEMENT VSUPPLY LDO ADXL357 Integrated temperature sensor Y ADC Voltage range options INT1 X CONTROL INT2 ADC DIGITAL LOGIC V Z ANALOG FILTER FILTER DRDY SUPPLY with internal regulators: 2.25 V to 3.6 V 3-AXIS ADC CS/SCL V SENSOR 1P8ANA, V1P8DIG with internal low dropout (LDO) regulator SCLK/VSSIO TEMP bypassed: 1.8 V typical ± 10% ADC FIFO SERIAL MOSI/SDA SENSOR I/O MISO/ASEL
002
Operating temperature range: −40°C to +125°C VSSIO VSS 14-terminal, 6 mm × 5.6 mm × 2.05 mm, LCC package, 0.26 g
15429- Figure 2. ADXL357
APPLICATIONS Inertial measurement units (IMUs)/altitude and heading reference systems (AHRSs) Platform stabilization systems Structural health monitoring Seismic imaging Tilt sensing Robotics Condition monitoring GENERAL DESCRIPTION
The analog output ADXL356 and the digital output ADXL357 The low drift, low noise, and low power ADXL357 enables are low noise density, low 0 g offset drift, low power, 3-axis accurate tilt measurement in an environment with high accelerometers with selectable measurement ranges. The vibration, such as airborne IMUs. The low noise of the ADXL356B supports the ±10 g and ±20 g ranges, the ADXL356 over higher frequencies is ideal for wireless condition ADXL356C supports the ±10 g and ±40 g ranges, and the monitoring. ADXL357 supports the ±10.24 g, ±20.48 g, and ±40.96 g ranges. The ADXL357 multifunction pin names may be referenced only The ADXL356/ADXL357 offer industry leading noise, minimal by their relevant function for either the SPI or limited I2C offset drift over temperature, and long-term stability, enabling interface. precision applications with minimal calibration. 1 Protected by U.S. Patents 8,472,270; 9,041,462; 8,665,627; 8,917,099; 6,892,576; 9,297,825; and 7,956,621.
