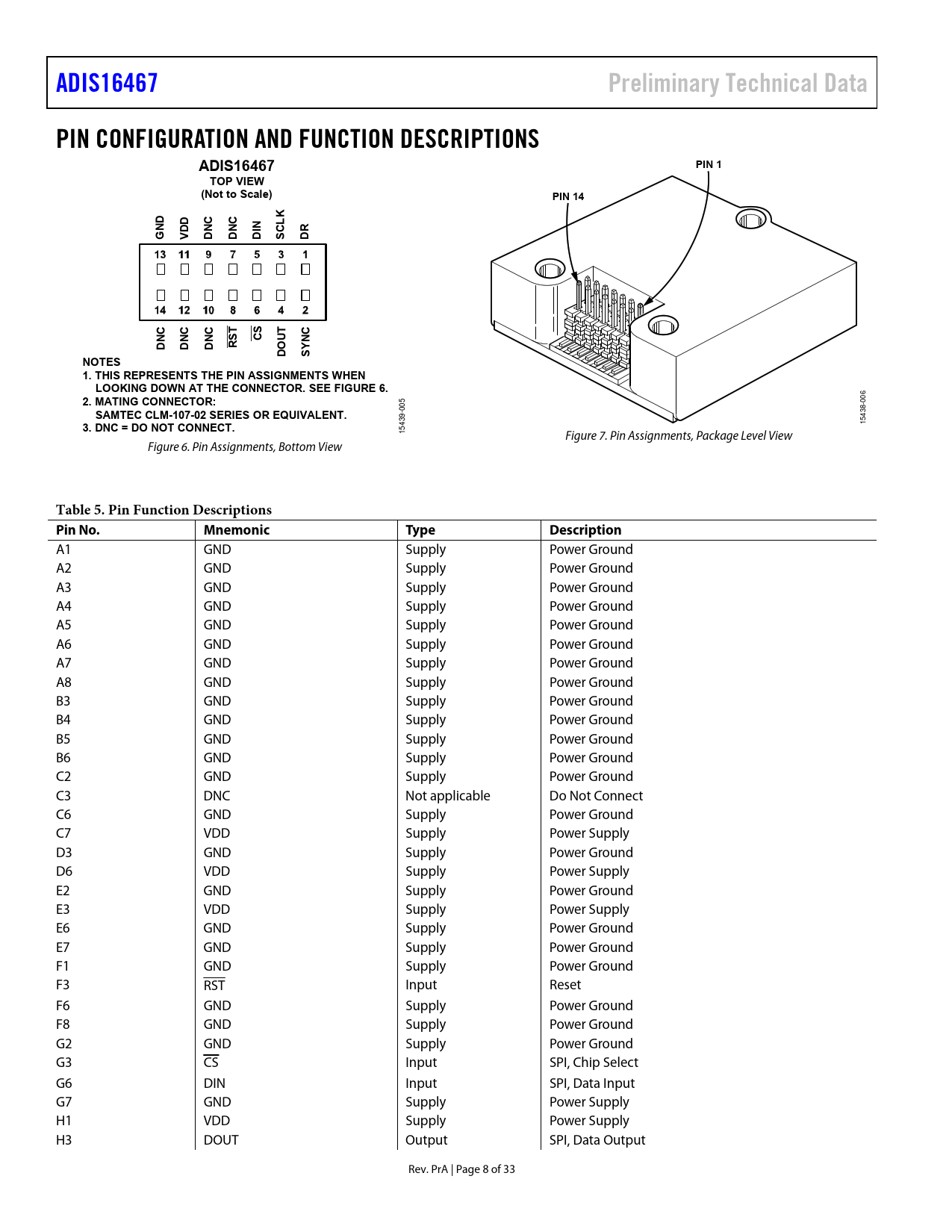

ADIS16467 Preliminary Technical Data PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADIS16467 PIN 1 TOP VIEW (Not to Scale) PIN 14 K D D C C L N D GN V DN DN DI SC DR C C C T C CS UT DN DN DN RS DO SYN NOTES 1. THIS REPRESENTS THE PIN ASSIGNMENTS WHEN LOOKING DOWN AT THE CONNECTOR. SEE FIGURE 6. 2. MATING CONNECTOR:
006
SAMTEC CLM-107-02 SERIES OR EQUIVALENT.
005 39-
3. DNC = DO NOT CONNECT.
15438- 154 Figure 7. Pin Assignments, Package Level View Figure 6. Pin Assignments, Bottom View
Table 5. Pin Function Descriptions Pin No. Mnemonic Type Description
A1 GND Supply Power Ground A2 GND Supply Power Ground A3 GND Supply Power Ground A4 GND Supply Power Ground A5 GND Supply Power Ground A6 GND Supply Power Ground A7 GND Supply Power Ground A8 GND Supply Power Ground B3 GND Supply Power Ground B4 GND Supply Power Ground B5 GND Supply Power Ground B6 GND Supply Power Ground C2 GND Supply Power Ground C3 DNC Not applicable Do Not Connect C6 GND Supply Power Ground C7 VDD Supply Power Supply D3 GND Supply Power Ground D6 VDD Supply Power Supply E2 GND Supply Power Ground E3 VDD Supply Power Supply E6 GND Supply Power Ground E7 GND Supply Power Ground F1 GND Supply Power Ground F3 RST Input Reset F6 GND Supply Power Ground F8 GND Supply Power Ground G2 GND Supply Power Ground G3 CS Input SPI, Chip Select G6 DIN Input SPI, Data Input G7 GND Supply Power Supply H1 VDD Supply Power Supply H3 DOUT Output SPI, Data Output Rev. PrA | Page 8 of 33
