Datasheet PIC18(L)F24/25K40 (Microchip)

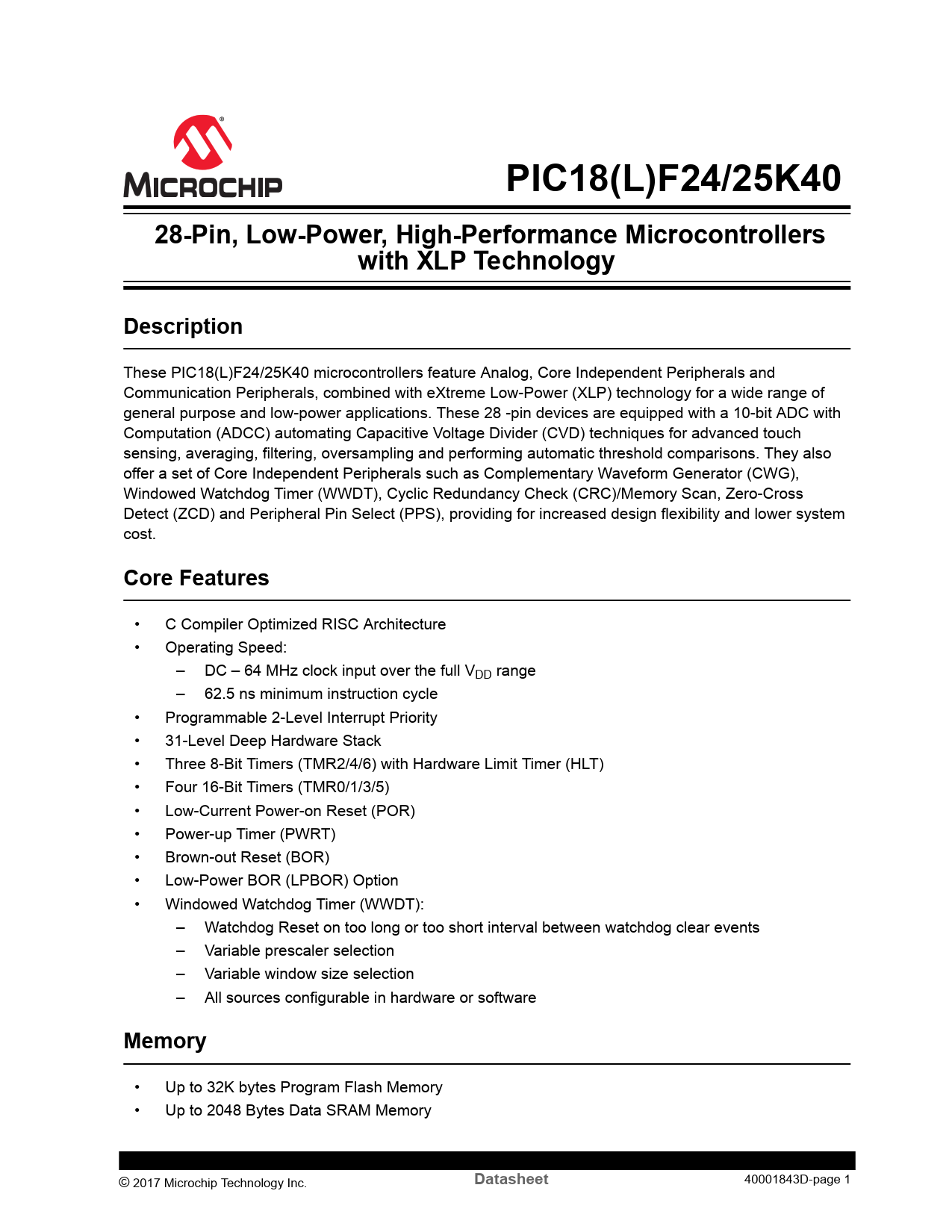

PIC18(L)F24/25K40 28-Pin, Low-Power, High-Performance Microcontrollers with XLP Technology Description
These PIC18(L)F24/25K40 microcontrollers feature Analog, Core Independent Peripherals and Communication Peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. These 28 -pin devices are equipped with a 10-bit ADC with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. They also offer a set of Core Independent Peripherals such as Complementary Waveform Generator (CWG), Windowed Watchdog Timer (WWDT), Cyclic Redundancy Check (CRC)/Memory Scan, Zero-Cross Detect (ZCD) and Peripheral Pin Select (PPS), providing for increased design flexibility and lower system cost.
Core Features
• C Compiler Optimized RISC Architecture • Operating Speed: – DC – 64 MHz clock input over the full VDD range – 62.5 ns minimum instruction cycle • Programmable 2-Level Interrupt Priority • 31-Level Deep Hardware Stack • Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT) • Four 16-Bit Timers (TMR0/1/3/5) • Low-Current Power-on Reset (POR) • Power-up Timer (PWRT) • Brown-out Reset (BOR) • Low-Power BOR (LPBOR) Option • Windowed Watchdog Timer (WWDT): – Watchdog Reset on too long or too short interval between watchdog clear events – Variable prescaler selection – Variable window size selection – All sources configurable in hardware or software
Memory
• Up to 32K bytes Program Flash Memory • Up to 2048 Bytes Data SRAM Memory © 2017 Microchip Technology Inc.
Datasheet
