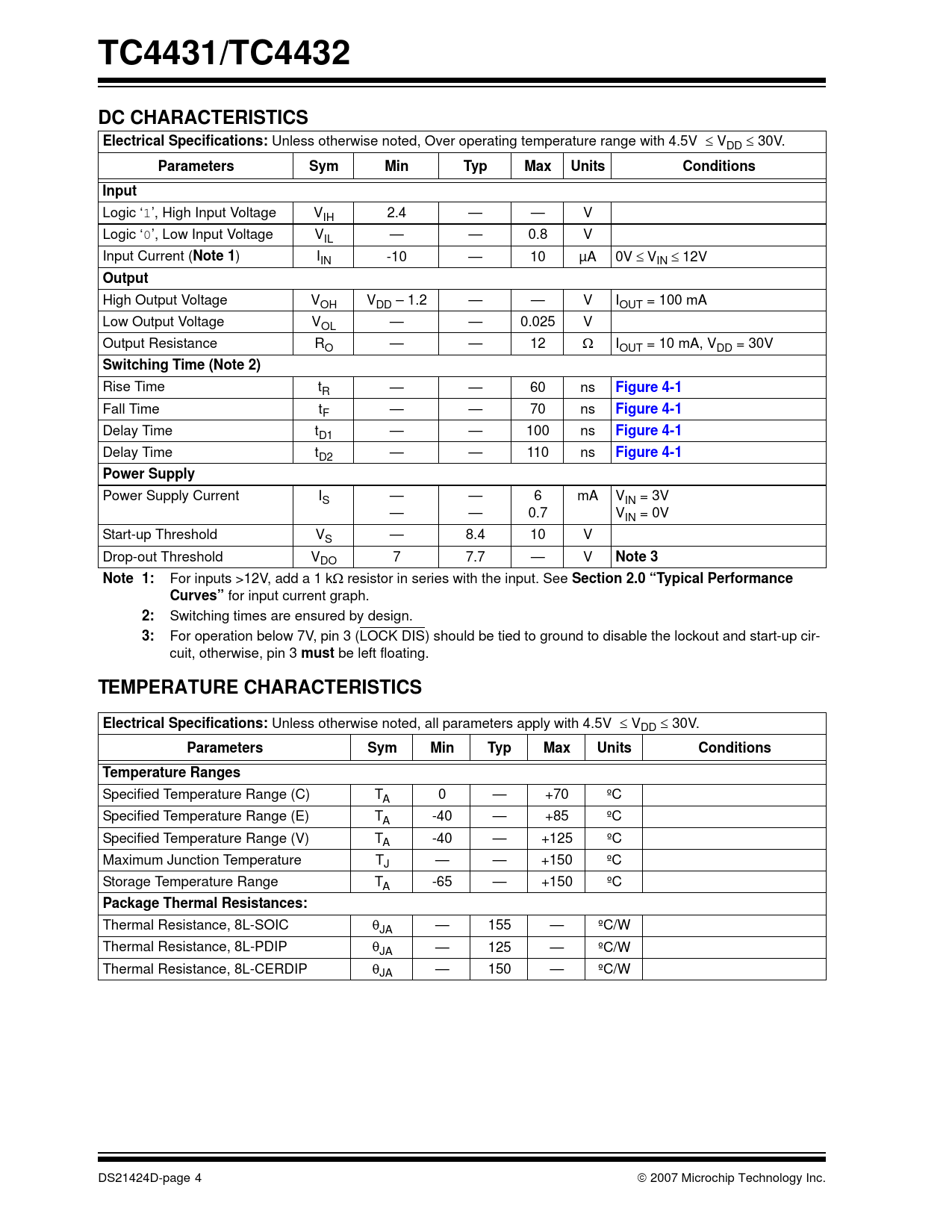

TC4431/TC4432 DC CHARACTERISTICS Electrical Specifications:
Unless otherwise noted, Over operating temperature range with 4.5V ≤ VDD ≤ 30V.
Parameters Sym Min Typ Max Units Conditions Input
Logic ‘1’, High Input Voltage VIH 2.4 — — V Logic ‘0’, Low Input Voltage VIL — — 0.8 V Input Current (
Note 1
) I ≤ IN -10 — 10 µA 0V ≤ VIN 12V
Output
High Output Voltage VOH VDD – 1.2 — — V IOUT = 100 mA Low Output Voltage VOL — — 0.025 V Output Resistance RO — — 12 Ω IOUT = 10 mA, VDD = 30V
Switching Time (Note 2 )
Rise Time tR — — 60 ns
Figure 4-1
Fall Time tF — — 70 ns
Figure 4-1
Delay Time tD1 — — 100 ns
Figure 4-1
Delay Time tD2 — — 110 ns
Figure 4-1 Power Supply
Power Supply Current IS — — 6 mA VIN = 3V — — 0.7 VIN = 0V Start-up Threshold VS — 8.4 10 V Drop-out Threshold VDO 7 7.7 — V
Note 3 Note 1:
For inputs >12V, add a 1 kΩ resistor in series with the input. See
Section 2.0 “Typical Performance Curves”
for input current graph.
2:
Switching times are ensured by design.
3:
For operation below 7V, pin 3 (LOCK DIS) should be tied to ground to disable the lockout and start-up cir- cuit, otherwise, pin 3
must
be left floating.
TEMPERATURE CHARACTERISTICS Electrical Specifications:
Unless otherwise noted, all parameters apply with 4.5V ≤ VDD ≤ 30V.
Parameters Sym Min Typ Max Units Conditions Temperature Ranges
Specified Temperature Range (C) TA 0 — +70 ºC Specified Temperature Range (E) TA -40 — +85 ºC Specified Temperature Range (V) TA -40 — +125 ºC Maximum Junction Temperature TJ — — +150 ºC Storage Temperature Range TA -65 — +150 ºC
Package Thermal Resistances:
Thermal Resistance, 8L-SOIC θJA — 155 — ºC/W Thermal Resistance, 8L-PDIP θJA — 125 — ºC/W Thermal Resistance, 8L-CERDIP θJA — 150 — ºC/W DS21424D-page 4 © 2007 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves FIGURE 2-1: Supply Current vs. Capacitive Load. FIGURE 2-2: Input Current vs. Input Voltage. FIGURE 2-3: Rise/Fall Time vs. VDD. FIGURE 2-4: tD1 and tD2 Delay vs. VDD. 3.0 Pin Descriptions TABLE 3-1: Pin Function Table 3.1 Supply Input (VDD) 3.2 Control Input (IN) 3.3 Lockout Disable (LOCK DIS) 3.4 Ground (GND) 3.5 Drive Output (OUT) 4.0 Applications Information FIGURE 4-1: Switching Time Test Circuit. 5.0 Packaging Information 5.1 Package Marking Information
