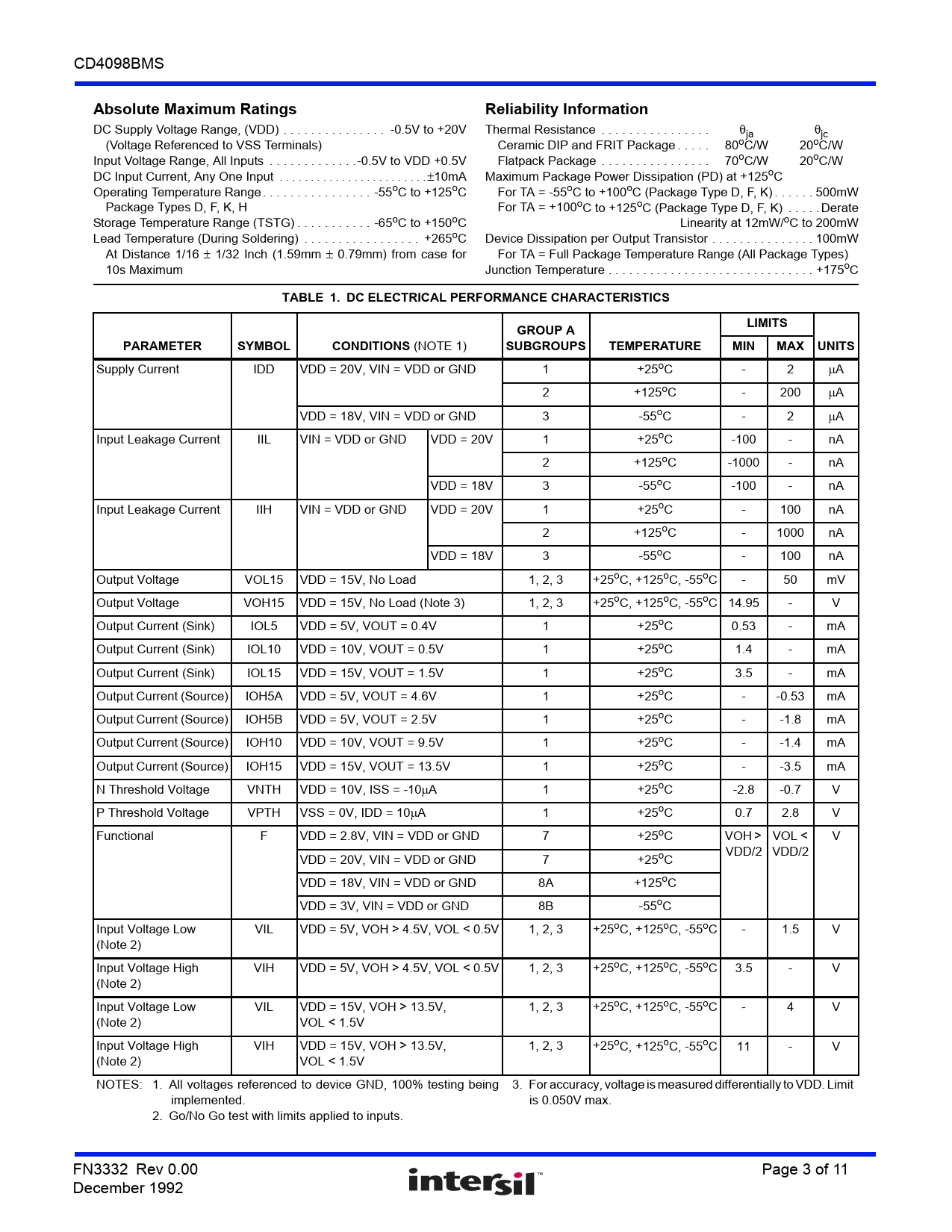

CD4098BMS
Absolute Maximum Ratings Reliability Information
DC Supply Voltage Range, (VDD) . -0.5V to +20V Thermal Resistance . ja jc (Voltage Referenced to VSS Terminals) Ceramic DIP and FRIT Package . 80oC/W 20oC/W Input Voltage Range, All Inputs . .-0.5V to VDD +0.5V Flatpack Package . 70oC/W 20oC/W DC Input Current, Any One Input 10mA Maximum Package Power Dissipation (PD) at +125oC Operating Temperature Range . -55oC to +125oC For TA = -55oC to +100oC (Package Type D, F, K) . 500mW Package Types D, F, K, H For TA = +100oC to +125oC (Package Type D, F, K) . Derate Storage Temperature Range (TSTG) . -65oC to +150oC Linearity at 12mW/oC to 200mW Lead Temperature (During Soldering) . +265oC Device Dissipation per Output Transistor . 100mW At Distance 1/16 1/32 Inch (1.59mm  0.79mm) from case for For TA = Full Package Temperature Range (All Package Types) 10s Maximum Junction Temperature . +175oC
TABLE 1. DC ELECTRICAL PERFORMANCE CHARACTERISTICS LIMITS GROUP A PARAMETER SYMBOL CONDITIONS
(NOTE 1)
SUBGROUPS TEMPERATURE MIN MAX UNITS
Supply Current IDD VDD = 20V, VIN = VDD or GND 1 +25oC - 2 A 2 +125oC - 200 A VDD = 18V, VIN = VDD or GND 3 -55oC - 2 A Input Leakage Current IIL VIN = VDD or GND VDD = 20V 1 +25oC -100 - nA 2 +125oC -1000 - nA VDD = 18V 3 -55oC -100 - nA Input Leakage Current IIH VIN = VDD or GND VDD = 20V 1 +25oC - 100 nA 2 +125oC - 1000 nA VDD = 18V 3 -55oC - 100 nA Output Voltage VOL15 VDD = 15V, No Load 1, 2, 3 +25oC, +125oC, -55oC - 50 mV Output Voltage VOH15 VDD = 15V, No Load (Note 3) 1, 2, 3 +25oC, +125oC, -55oC 14.95 - V Output Current (Sink) IOL5 VDD = 5V, VOUT = 0.4V 1 +25oC 0.53 - mA Output Current (Sink) IOL10 VDD = 10V, VOUT = 0.5V 1 +25oC 1.4 - mA Output Current (Sink) IOL15 VDD = 15V, VOUT = 1.5V 1 +25oC 3.5 - mA Output Current (Source) IOH5A VDD = 5V, VOUT = 4.6V 1 +25oC - -0.53 mA Output Current (Source) IOH5B VDD = 5V, VOUT = 2.5V 1 +25oC - -1.8 mA Output Current (Source) IOH10 VDD = 10V, VOUT = 9.5V 1 +25oC - -1.4 mA Output Current (Source) IOH15 VDD = 15V, VOUT = 13.5V 1 +25oC - -3.5 mA N Threshold Voltage VNTH VDD = 10V, ISS = -10A 1 +25oC -2.8 -0.7 V P Threshold Voltage VPTH VSS = 0V, IDD = 10A 1 +25oC 0.7 2.8 V Functional F VDD = 2.8V, VIN = VDD or GND 7 +25oC VOH > VOL < V VDD/2 VDD/2 VDD = 20V, VIN = VDD or GND 7 +25oC VDD = 18V, VIN = VDD or GND 8A +125oC VDD = 3V, VIN = VDD or GND 8B -55oC Input Voltage Low VIL VDD = 5V, VOH > 4.5V, VOL < 0.5V 1, 2, 3 +25oC, +125oC, -55oC - 1.5 V (Note 2) Input Voltage High VIH VDD = 5V, VOH > 4.5V, VOL < 0.5V 1, 2, 3 +25oC, +125oC, -55oC 3.5 - V (Note 2) Input Voltage Low VIL VDD = 15V, VOH > 13.5V, 1, 2, 3 +25oC, +125oC, -55oC - 4 V (Note 2) VOL < 1.5V Input Voltage High VIH VDD = 15V, VOH > 13.5V, 1, 2, 3 +25oC, +125oC, -55oC 11 - V (Note 2) VOL < 1.5V NOTES: 1. All voltages referenced to device GND, 100% testing being 3. For accuracy, voltage is measured differentially to VDD. Limit implemented. is 0.050V max. 2. Go/No Go test with limits applied to inputs. FN3332 Rev 0.00 Page 3 of 11 December 1992
