Datasheet CD4098BMS (Intersil) - 8

ManufacturerIntersil
DescriptionCMOS Dual Monostable Multivibrator
Pages / Page11 / 8 — Logic Diagram. VDD. 4 (12) *. +TR. 5 (11). -TR. 3 (13). RESET. * 2 (14). …
Revision2017-12-22
File Format / SizePDF / 327 Kb
Document LanguageEnglish

Logic Diagram. VDD. 4 (12) *. +TR. 5 (11). -TR. 3 (13). RESET. * 2 (14). RXCX. 1 (15). VSS. 6 (10). 7 (9). NOTE: SCHEMATIC SHOWN IS 1/2 OF TOTAL

Logic Diagram VDD 4 (12) * +TR 5 (11) -TR 3 (13) RESET * 2 (14) RXCX 1 (15) VSS 6 (10) 7 (9) NOTE: SCHEMATIC SHOWN IS 1/2 OF TOTAL

Model Line for this Datasheet

Text Version of Document

CD4098BMS

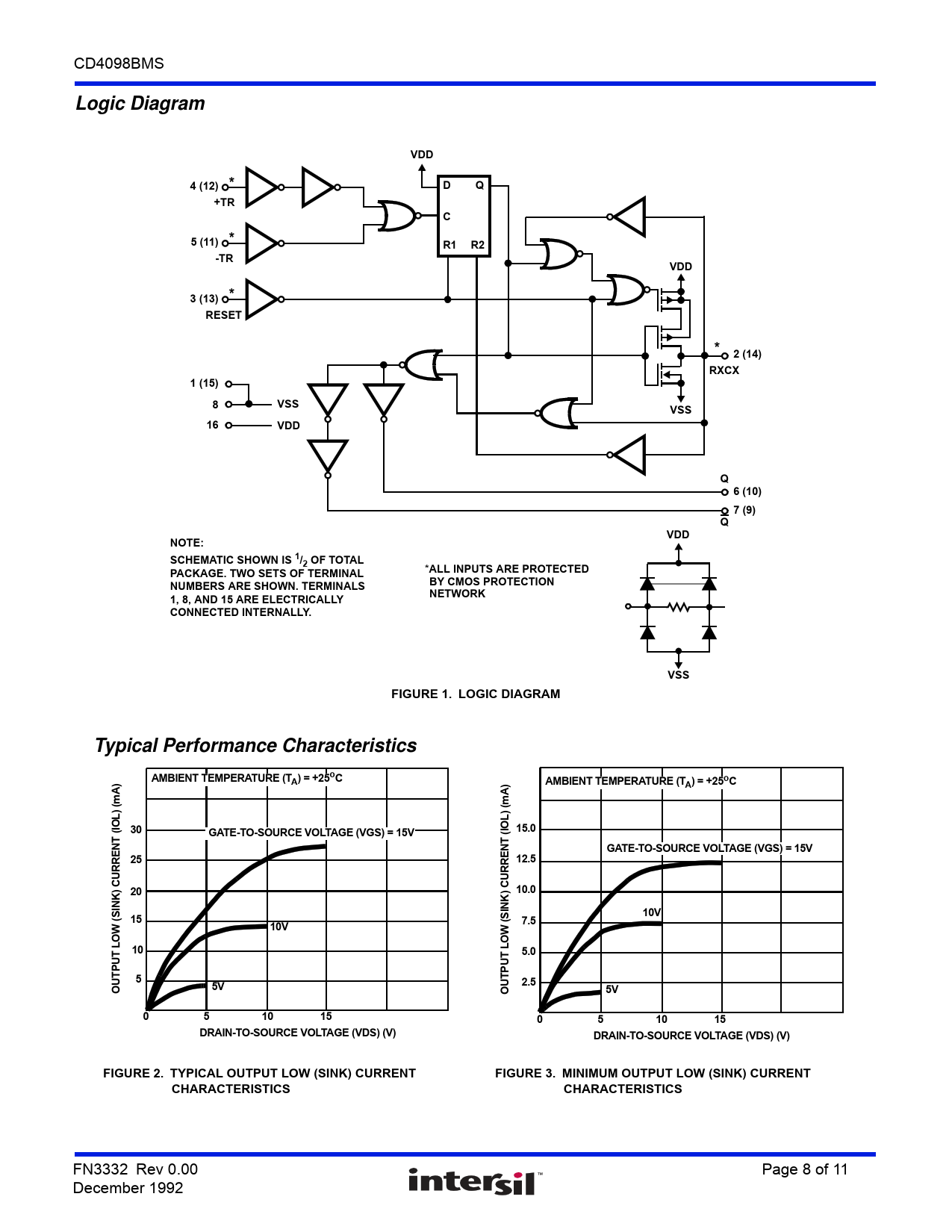

Logic Diagram VDD 4 (12) * D Q +TR C * 5 (11) R1 R2 -TR VDD * 3 (13) RESET * 2 (14) RXCX 1 (15) 8 VSS VSS 16 VDD Q 6 (10) 7 (9) Q VDD NOTE: SCHEMATIC SHOWN IS 1/2 OF TOTAL PACKAGE. TWO SETS OF TERMINAL *ALL INPUTS ARE PROTECTED NUMBERS ARE SHOWN. TERMINALS BY CMOS PROTECTION 1, 8, AND 15 ARE ELECTRICALLY NETWORK CONNECTED INTERNALLY. VSS FIGURE 1. LOGIC DIAGRAM Typical Performance Characteristics AMBIENT TEMPERATURE (TA) = +25oC AMBIENT TEMPERATURE (TA) = +25oC A) (m 30 GATE-TO-SOURCE VOLTAGE (VGS) = 15V IOL) 15.0 T ( N GATE-TO-SOURCE VOLTAGE (VGS) = 15V 25 E 12.5 RR CU 20 10.0 INK) 10V (SINK) CURRENT (IOL) (mA) 15 7.5 10V OW L 10 5.0 5 5V 2.5 OUTPUT OUTPUT LOW (S 5V 0 5 10 15 0 5 10 15 DRAIN-TO-SOURCE VOLTAGE (VDS) (V) DRAIN-TO-SOURCE VOLTAGE (VDS) (V) FIGURE 2. TYPICAL OUTPUT LOW (SINK) CURRENT FIGURE 3. MINIMUM OUTPUT LOW (SINK) CURRENT CHARACTERISTICS CHARACTERISTICS
