Datasheet AD8643-EP (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Low Power, Rail-to-Rail, Output Precision JFET Amplifier |
| Pages / Page | 12 / 5 — AD8643-EP. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. … |
| File Format / Size | PDF / 255 Kb |
| Document Language | English |

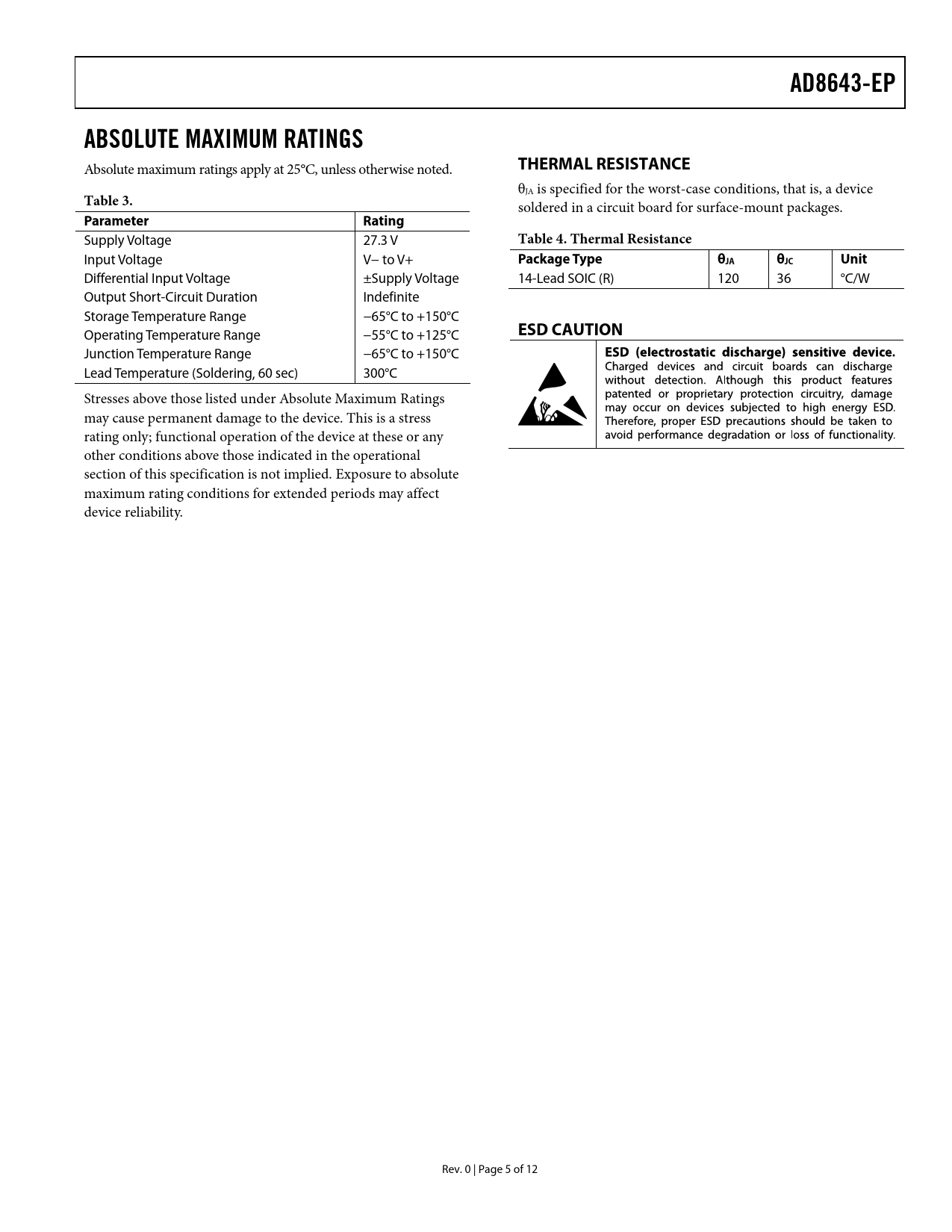

AD8643-EP. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Thermal Resistance. Package Type. θJA
Model Line for this Datasheet
Text Version of Document
AD8643-EP ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE
Absolute maximum ratings apply at 25°C, unless otherwise noted. θJA is specified for the worst-case conditions, that is, a device
Table 3.
soldered in a circuit board for surface-mount packages.
Parameter Rating
Supply Voltage 27.3 V
Table 4. Thermal Resistance
Input Voltage V− to V+
Package Type θJA θJC Unit
Differential Input Voltage ±Supply Voltage 14-Lead SOIC (R) 120 36 °C/W Output Short-Circuit Duration Indefinite Storage Temperature Range −65°C to +150°C Operating Temperature Range −55°C to +125°C
ESD CAUTION
Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 5 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
