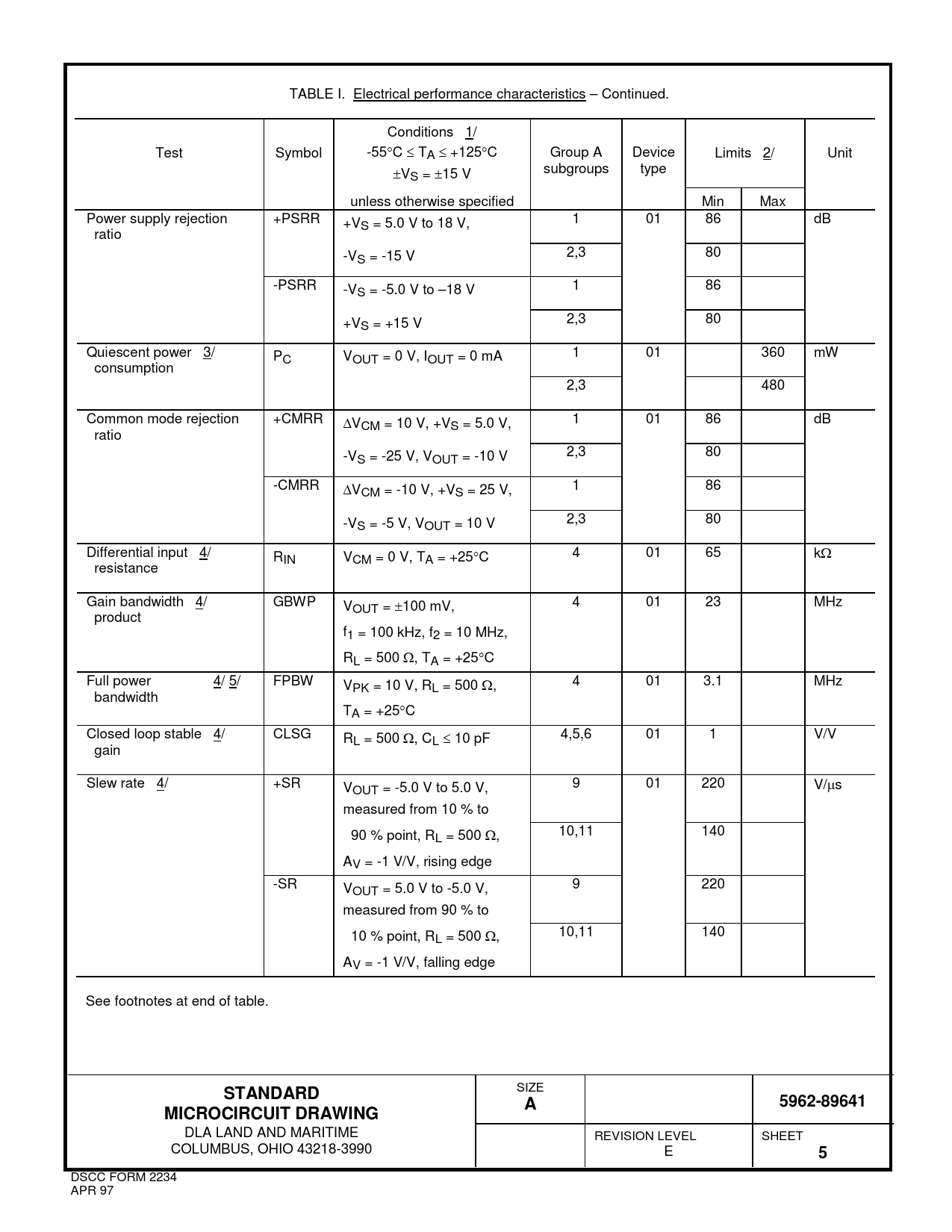

TABLE I. Electrical performance characteristics – Continued. Conditions 1/ Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits 2/ Unit ±V subgroups type S = ±15 V unless otherwise specified Min Max Power supply rejection +PSRR +VS = 5.0 V to 18 V, 1 01 86 dB ratio -VS = -15 V 2,3 80 -PSRR -VS = -5.0 V to –18 V 1 86 +VS = +15 V 2,3 80 Quiescent power 3/ PC VOUT = 0 V, IOUT = 0 mA 1 01 360 mW consumption 2,3 480 Common mode rejection +CMRR ∆VCM = 10 V, +VS = 5.0 V, 1 01 86 dB ratio -VS = -25 V, VOUT = -10 V 2,3 80 -CMRR ∆VCM = -10 V, +VS = 25 V, 1 86 -VS = -5 V, VOUT = 10 V 2,3 80 Differential input 4/ RIN VCM = 0 V, TA = +25°C 4 01 65 kΩ resistance Gain bandwidth 4/ GBWP V 4 01 23 MHz OUT = ±100 mV, product f1 = 100 kHz, f2 = 10 MHz, RL = 500 Ω, TA = +25°C Full power 4/ 5/ FPBW V 4 01 3.1 MHz PK = 10 V, RL = 500 Ω, bandwidth TA = +25°C Closed loop stable 4/ CLSG RL = 500 Ω, CL ≤ 10 pF 4,5,6 01 1 V/V gain Slew rate 4/ +SR V 9 01 220 V/µs OUT = -5.0 V to 5.0 V, measured from 10 % to 90 % point, R 10,11 140 L = 500 Ω, AV = -1 V/V, rising edge -SR V 9 220 OUT = 5.0 V to -5.0 V, measured from 90 % to 10 % point, R 10,11 140 L = 500 Ω, AV = -1 V/V, falling edge See footnotes at end of table.
