DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/11603
Model Line for this Datasheet
Text Version of Document

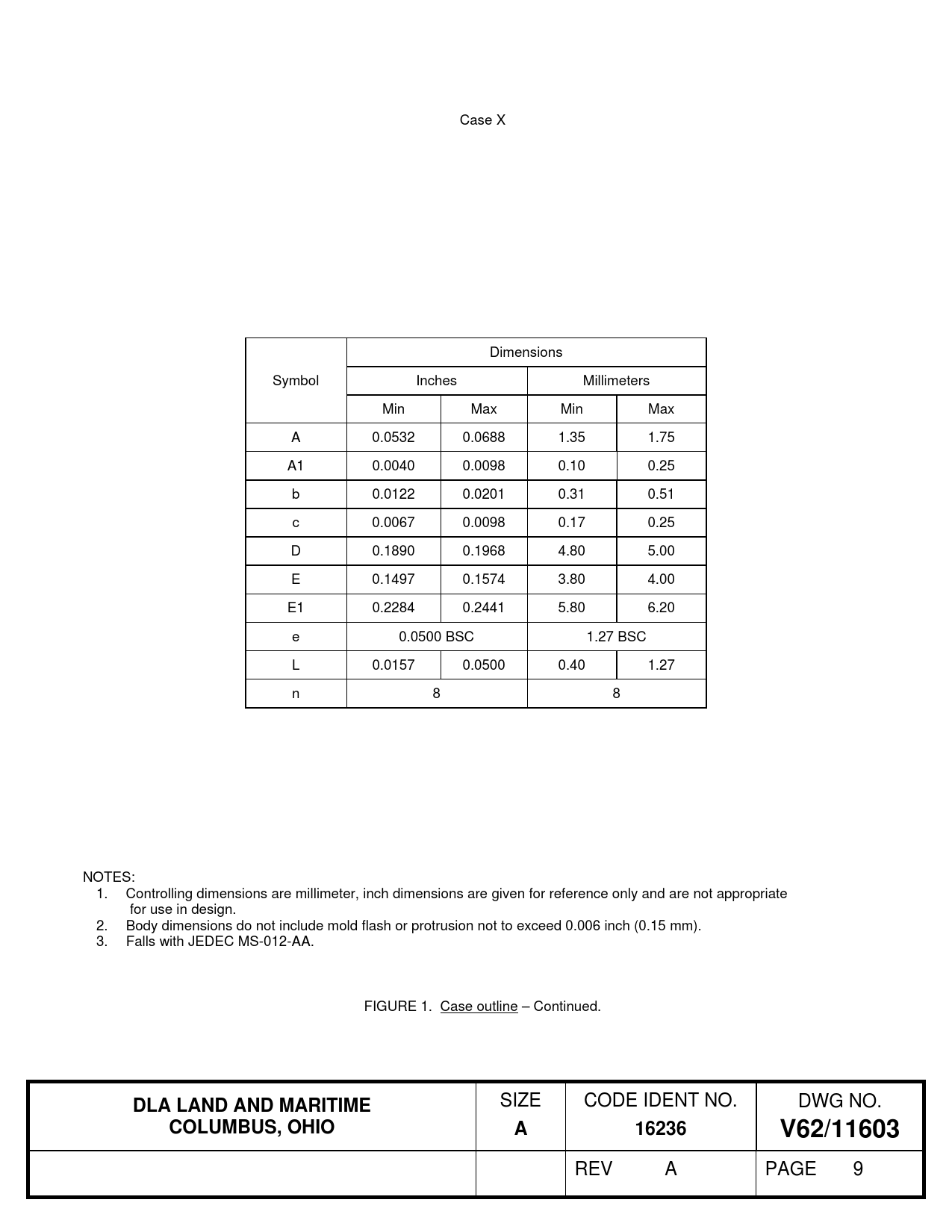

Case X Dimensions Symbol Inches Millimeters Min Max Min Max A 0.0532 0.0688 1.35 1.75 A1 0.0040 0.0098 0.10 0.25 b 0.0122 0.0201 0.31 0.51 c 0.0067 0.0098 0.17 0.25 D 0.1890 0.1968 4.80 5.00 E 0.1497 0.1574 3.80 4.00 E1 0.2284 0.2441 5.80 6.20 e 0.0500 BSC 1.27 BSC L 0.0157 0.0500 0.40 1.27 n 8 8 NOTES: 1. Controlling dimensions are millimeter, inch dimensions are given for reference only and are not appropriate for use in design. 2. Body dimensions do not include mold flash or protrusion not to exceed 0.006 inch (0.15 mm). 3. Falls with JEDEC MS-012-AA. FIGURE 1. Case outline – Continued.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/11603
REV A PAGE 9
