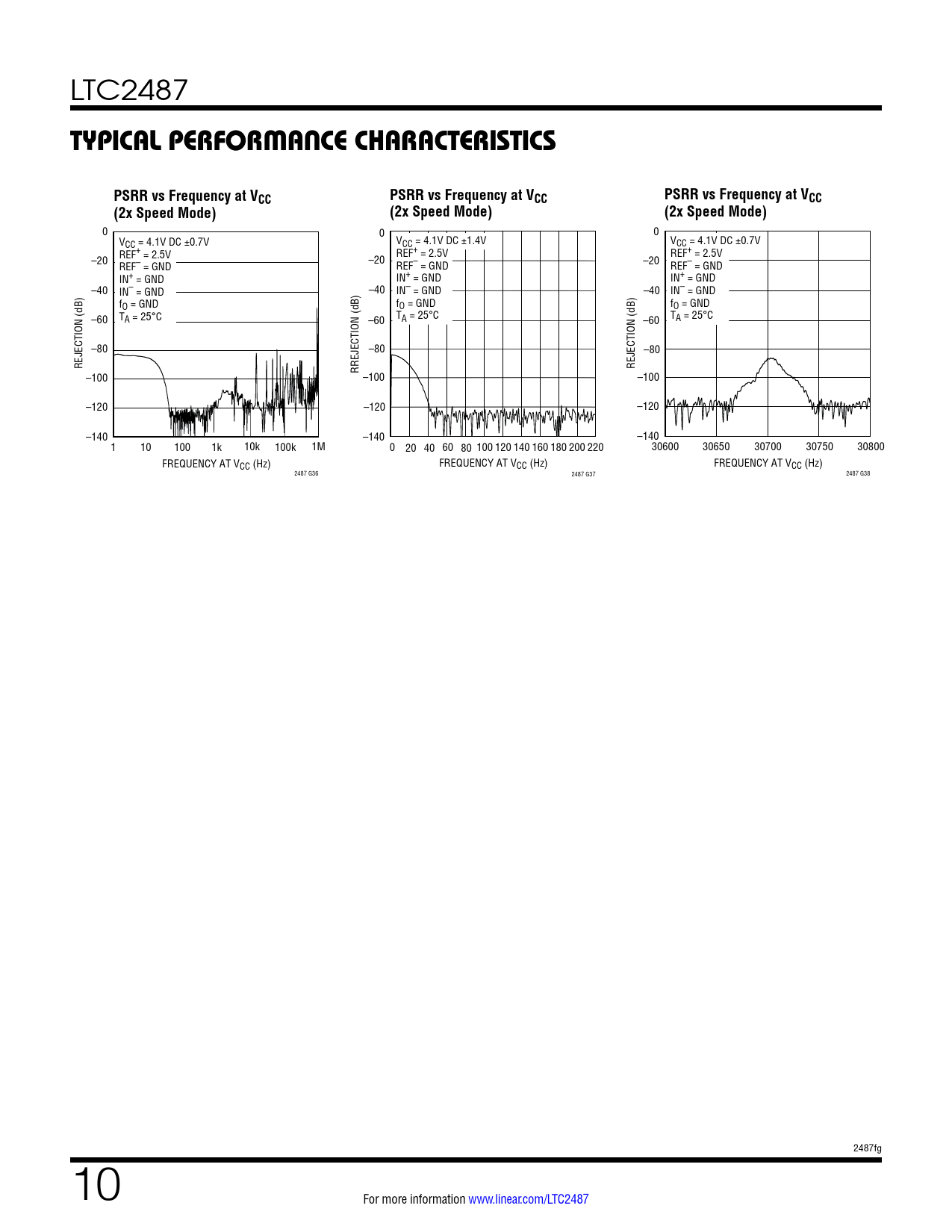

TYPICAL PERFORMANCE CHARACTERISTICS. PSRR vs Frequency at V. PSRR vs Frequency at VCC. (2x Speed Mode)
