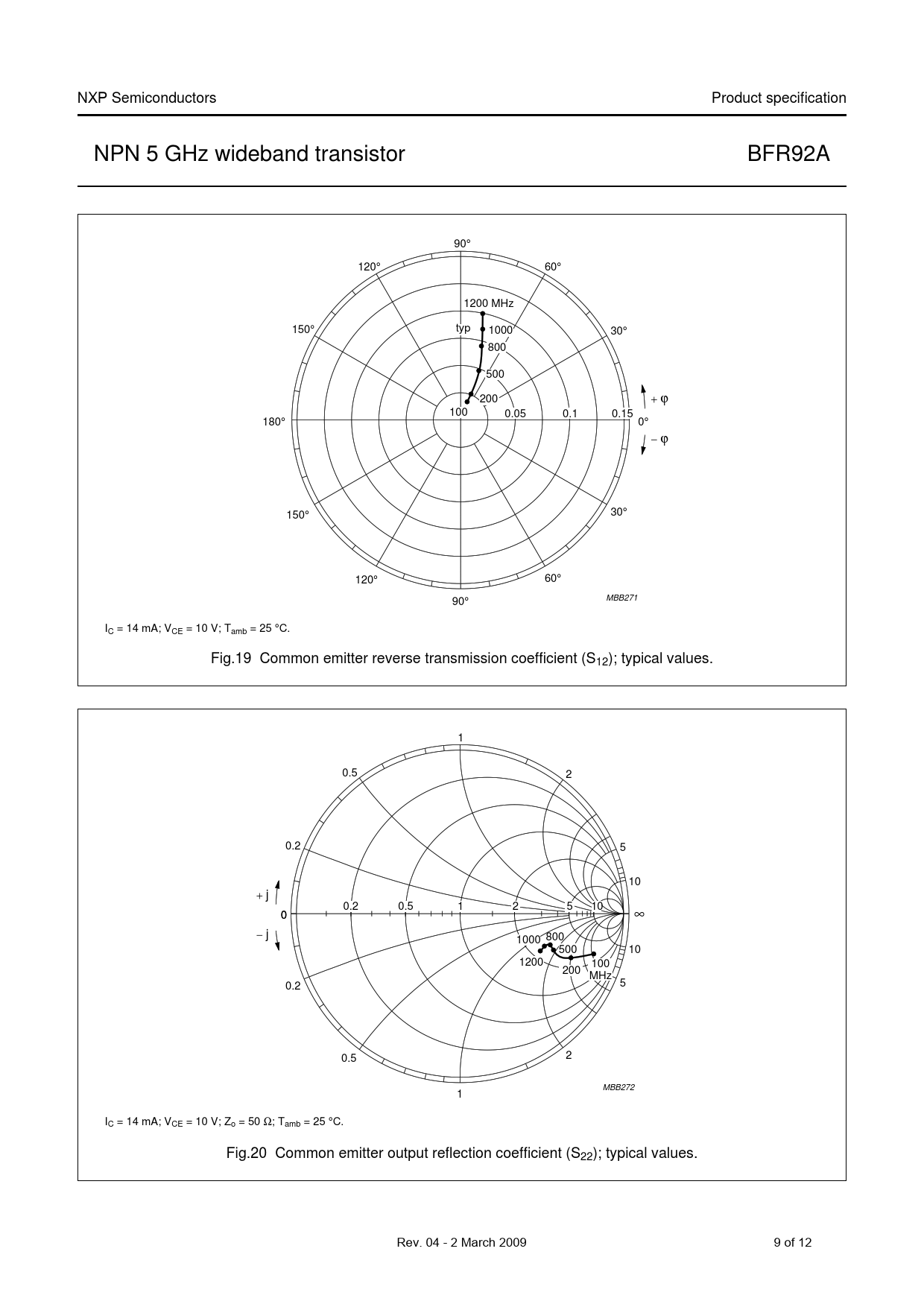

NXP Semiconductors Product specification NPN 5 GHz wideband transistor BFR92A handbook, full pagewidth 90° 120° 60° 1200 MHz 150° typ 1000 30° 800 500 200 + ϕ 100 0.05 0.1 0.15 180° 0° − ϕ 150° 30° 120° 60° MBB271 90° IC = 14 mA; VCE = 10 V; Tamb = 25 °C. Fig.19 Common emitter reverse transmission coefficient (S12); typical values. 1 handbook, full pagewidth 0.5 2 0.2 5 10 + j 0.2 0.5 1 2 5 10 0 ∞ − j 800 1000 500 10 1200 100 200 MHz 0.2 5 0.5 2 MBB272 1 IC = 14 mA; VCE = 10 V; Zo = 50 Ω; Tamb = 25 °C. Fig.20 Common emitter output reflection coefficient (S22); typical values. Rev. 04 - 2 March 2009 9 of 12 Document Outline FEATURES DESCRIPTION APPLICATIONS PINNING QUICK REFERENCE DATA LIMITING VALUES THERMAL CHARACTERISTICS CHARACTERISTICS PACKAGE OUTLINE Legal information Data sheet status Definitions Disclaimers Trademarks Contact information Revision history
