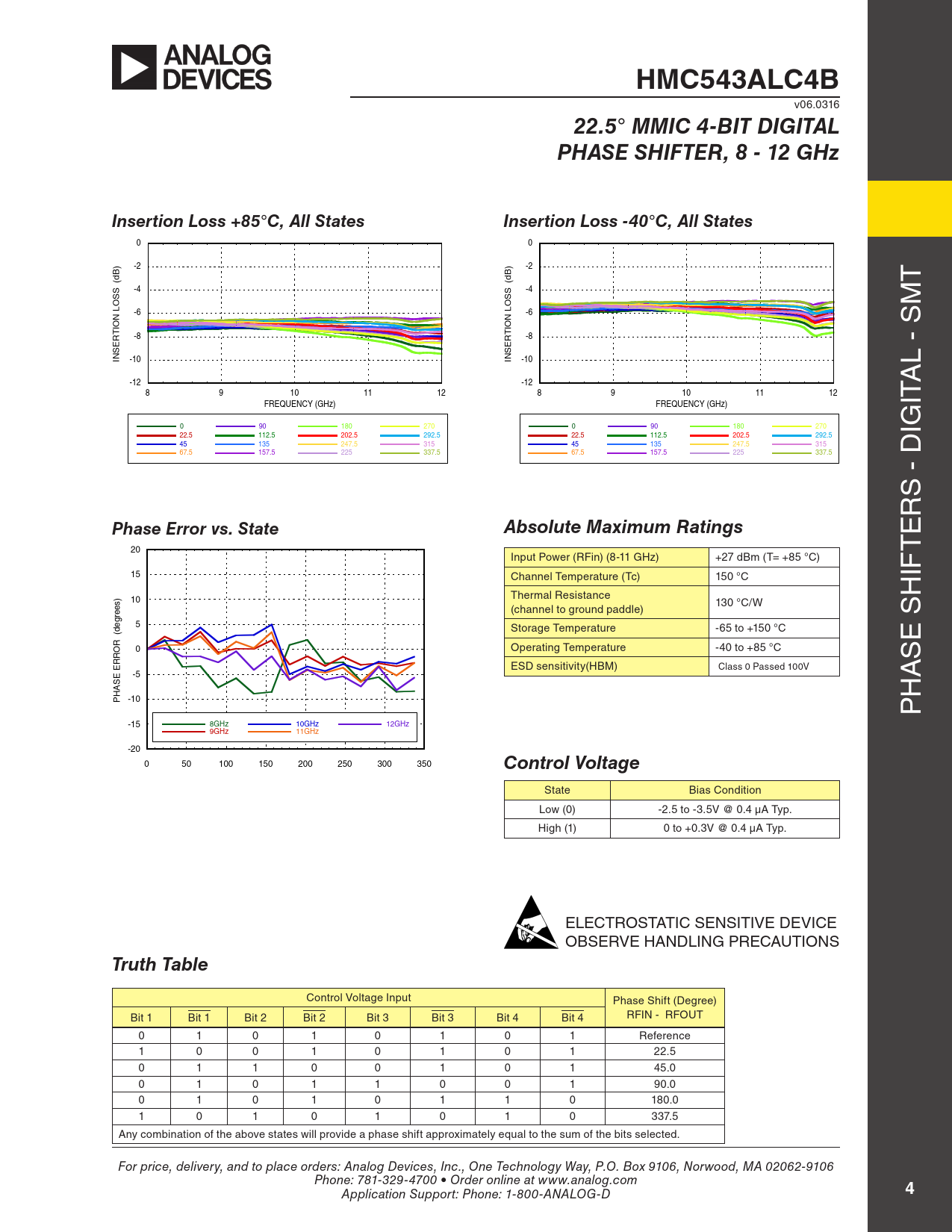

HMC543ALC4B. 22.5° MMIC 4-BIT DIGITAL. PHASE SHIFTER, 8 - 12 GHz. Insertion Loss +85°C, All States
Model Line for this Datasheet
Text Version of Document
HMC543ALC4B
v06.0316
22.5° MMIC 4-BIT DIGITAL PHASE SHIFTER, 8 - 12 GHz Insertion Loss +85°C, All States Insertion Loss -40°C, All States
0 0 ) -2 ) -2 B B d d ( T S -4 S -4 S S O O M L -6 L -6 N N IO IO T -8 T R -8 R E E S S IN -10 IN -10 L - S -12 -12 8 9 10 11 12 8 9 10 11 12 FREQUENCY (GHz) FREQUENCY (GHz) ITA 0 90 180 270 0 90 180 270 22.5 112.5 202.5 292.5 22.5 112.5 202.5 292.5 IG 45 135 247.5 315 45 135 247.5 315 67.5 157.5 225 337.5 67.5 157.5 225 337.5 S - D R
Phase Error vs. State Absolute Maximum Ratings
E 20 T Input Power (RFin) (8-11 GHz) +27 dBm (T= +85 °C) 15 Channel Temperature (Tc) 150 °C IF ) Thermal Resistance H 10 130 °C/W ees (channel to ground paddle) 5 Storage Temperature -65 to +150 °C (degr R E S O 0 Operating Temperature -40 to +85 °C R R S ESD sensitivity(HBM) Class 0 Passed 100V E -5 E A S A H P -10 H P -15 8GHz 10GHz 12GHz 9GHz 11GHz -20 0 50 100 150 200 250 300 350
Control Voltage
STATE (degrees) State Bias Condition Low (0) -2.5 to -3.5V @ 0.4 µA Typ. High (1) 0 to +0.3V @ 0.4 µA Typ. ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS
Truth Table
Control Voltage Input Phase Shift (Degree) RFIN - RFOUT Bit 1 Bit 1 Bit 2 Bit 2 Bit 3 Bit 3 Bit 4 Bit 4 0 1 0 1 0 1 0 1 Reference 1 0 0 1 0 1 0 1 22.5 0 1 1 0 0 1 0 1 45.0 0 1 0 1 1 0 0 1 90.0 0 1 0 1 0 1 1 0 180.0 1 0 1 0 1 0 1 0 337.5 Any combination of the above states will provide a phase shift approximately equal to the sum of the bits selected. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
