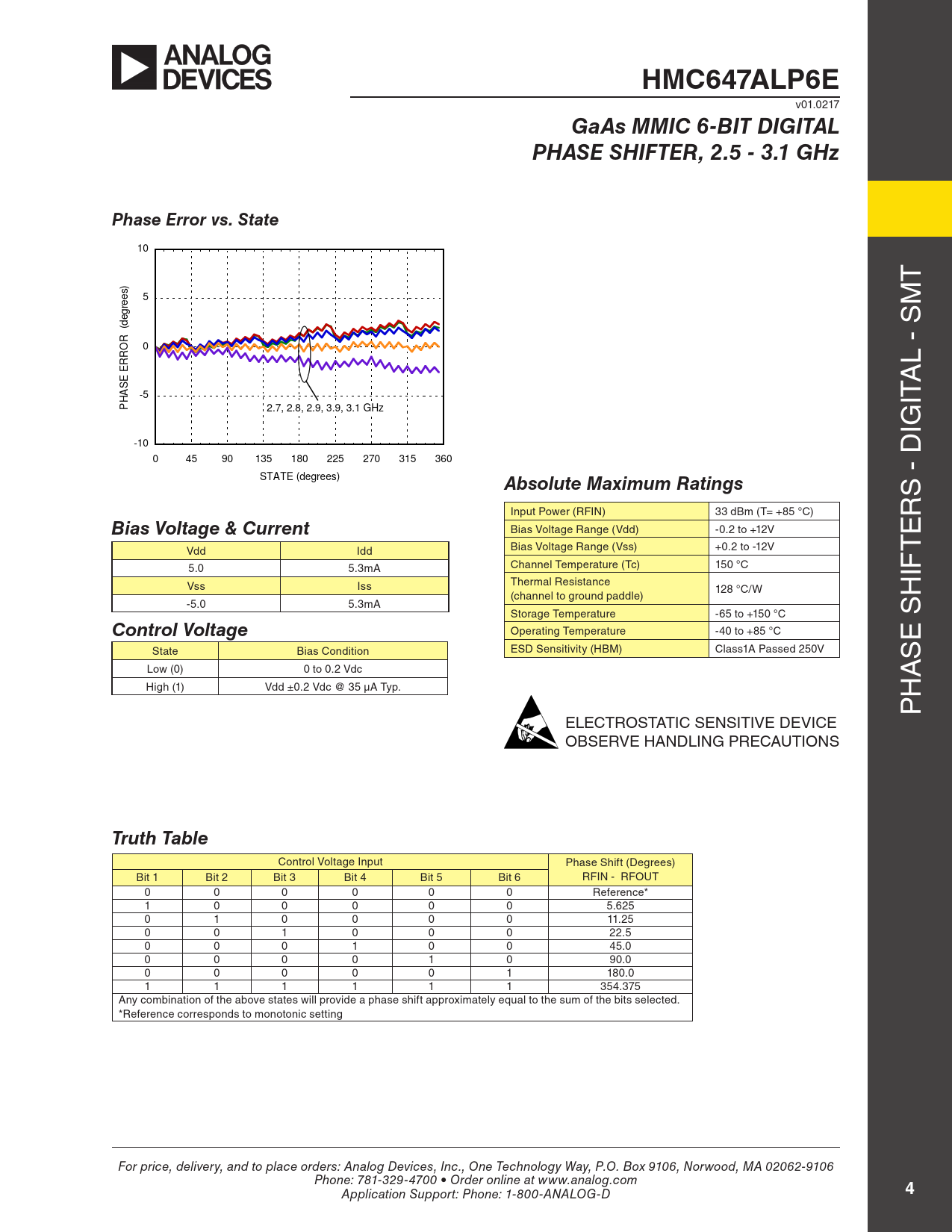

HMC647ALP6E
v01.0217
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 2.5 - 3.1 GHz Phase Error vs. State
10 T ) 5 ees M (degr R O 0 R R L - S E E S A -5 H P ITA 2.7, 2.8, 2.9, 3.9, 3.1 GHz IG -10 0 45 90 135 180 225 270 315 360 STATE (degrees)
Absolute Maximum Ratings
S - D Input Power (RFIN) 33 dBm (T= +85 °C) R
Bias Voltage & Current
Bias Voltage Range (Vdd) -0.2 to +12V E Bias Voltage Range (Vss) +0.2 to -12V Vdd Idd T Channel Temperature (Tc) 150 °C 5.0 5.3mA IF Thermal Resistance Vss Iss 128 °C/W (channel to ground paddle) H -5.0 5.3mA Storage Temperature -65 to +150 °C
Control Voltage
Operating Temperature -40 to +85 °C E S ESD Sensitivity (HBM) Class1A Passed 250V State Bias Condition S Low (0) 0 to 0.2 Vdc A High (1) Vdd ±0.2 Vdc @ 35 µA Typ. H P ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS
Truth Table
Control Voltage Input Phase Shift (Degrees) Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 RFIN - RFOUT 0 0 0 0 0 0 Reference* 1 0 0 0 0 0 5.625 0 1 0 0 0 0 11.25 0 0 1 0 0 0 22.5 0 0 0 1 0 0 45.0 0 0 0 0 1 0 90.0 0 0 0 0 0 1 180.0 1 1 1 1 1 1 354.375 Any combination of the above states will provide a phase shift approximately equal to the sum of the bits selected. *Reference corresponds to monotonic setting For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
