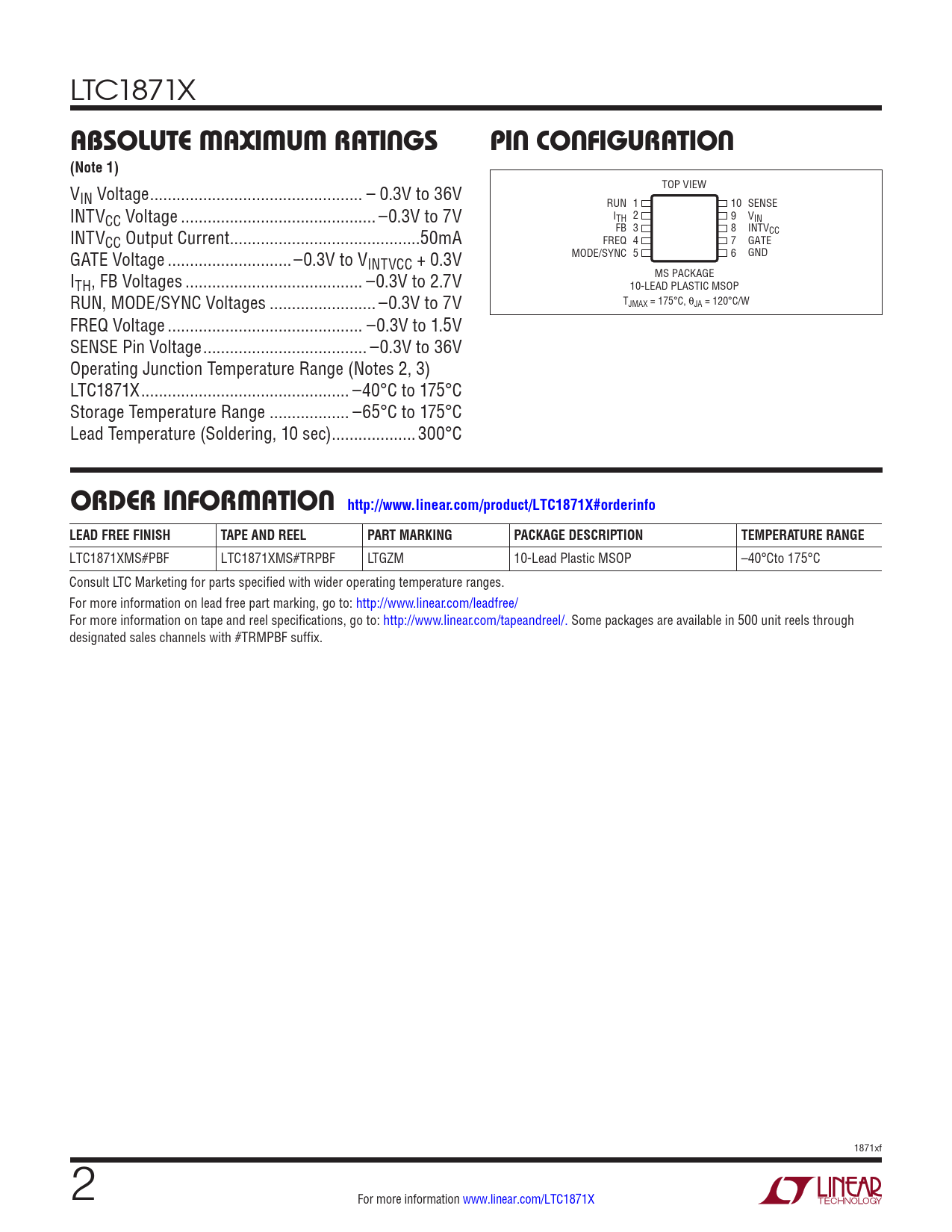

LTC1871X
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW IN Voltage .. – 0.3V to 36V RUN 1 10 SENSE INTVCC Voltage .. –0.3V to 7V ITH 2 9 VIN INTV FB 3 8 INTVCC CC Output Current...50mA FREQ 4 7 GATE GATE Voltage ..–0.3V to V MODE/SYNC 5 6 GND INTVCC + 0.3V I MS PACKAGE TH, FB Voltages .. –0.3V to 2.7V 10-LEAD PLASTIC MSOP RUN, MODE/SYNC Voltages .. –0.3V to 7V TJMAX = 175°C, θJA = 120°C/W FREQ Voltage .. –0.3V to 1.5V SENSE Pin Voltage ... –0.3V to 36V Operating Junction Temperature Range (Notes 2, 3) LTC1871X ... –40°C to 175°C Storage Temperature Range .. –65°C to 175°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION http://www.linear.com/product/LTC1871X#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1871XMS#PBF LTC1871XMS#TRPBF LTGZM 10-Lead Plastic MSOP –40°Cto 175°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 1871xf 2 For more information www.linear.com/LTC1871X Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Typical Application Related Parts
