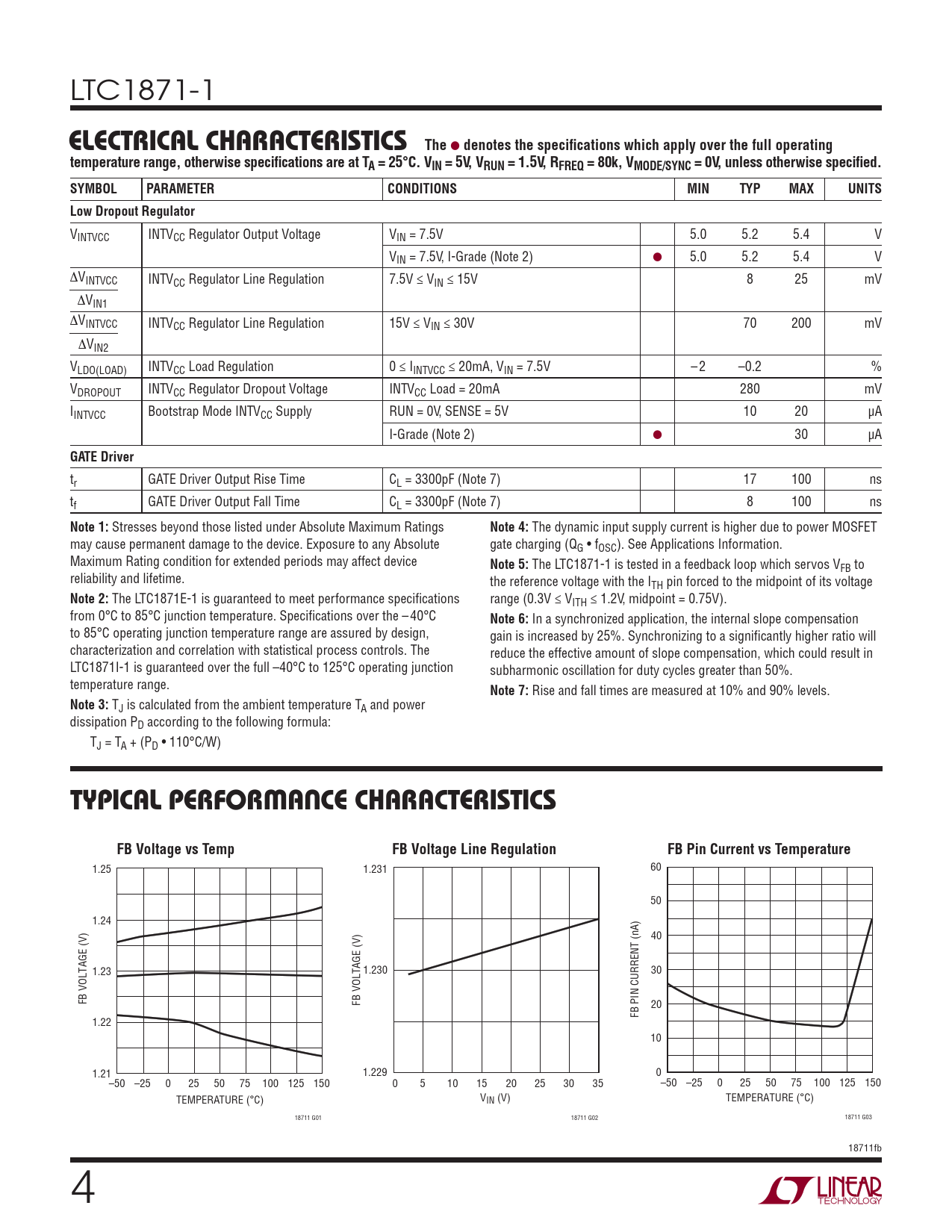

LTC1871-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 5V, VRUN = 1.5V, RFREQ = 80k, VMODE/SYNC = 0V, unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Low Dropout Regulator
VINTVCC INTVCC Regulator Output Voltage VIN = 7.5V 5.0 5.2 5.4 V VIN = 7.5V, I-Grade (Note 2) ● 5.0 5.2 5.4 V ΔVINTVCC INTVCC Regulator Line Regulation 7.5V ≤ VIN ≤ 15V 8 25 mV ΔVIN1 ΔVINTVCC INTVCC Regulator Line Regulation 15V ≤ VIN ≤ 30V 70 200 mV ΔVIN2 VLDO(LOAD) INTVCC Load Regulation 0 ≤ IINTVCC ≤ 20mA, VIN = 7.5V – 2 –0.2 % VDROPOUT INTVCC Regulator Dropout Voltage INTVCC Load = 20mA 280 mV IINTVCC Bootstrap Mode INTVCC Supply RUN = 0V, SENSE = 5V 10 20 μA I-Grade (Note 2) ● 30 μA
GATE Driver
tr GATE Driver Output Rise Time CL = 3300pF (Note 7) 17 100 ns tf GATE Driver Output Fall Time CL = 3300pF (Note 7) 8 100 ns
