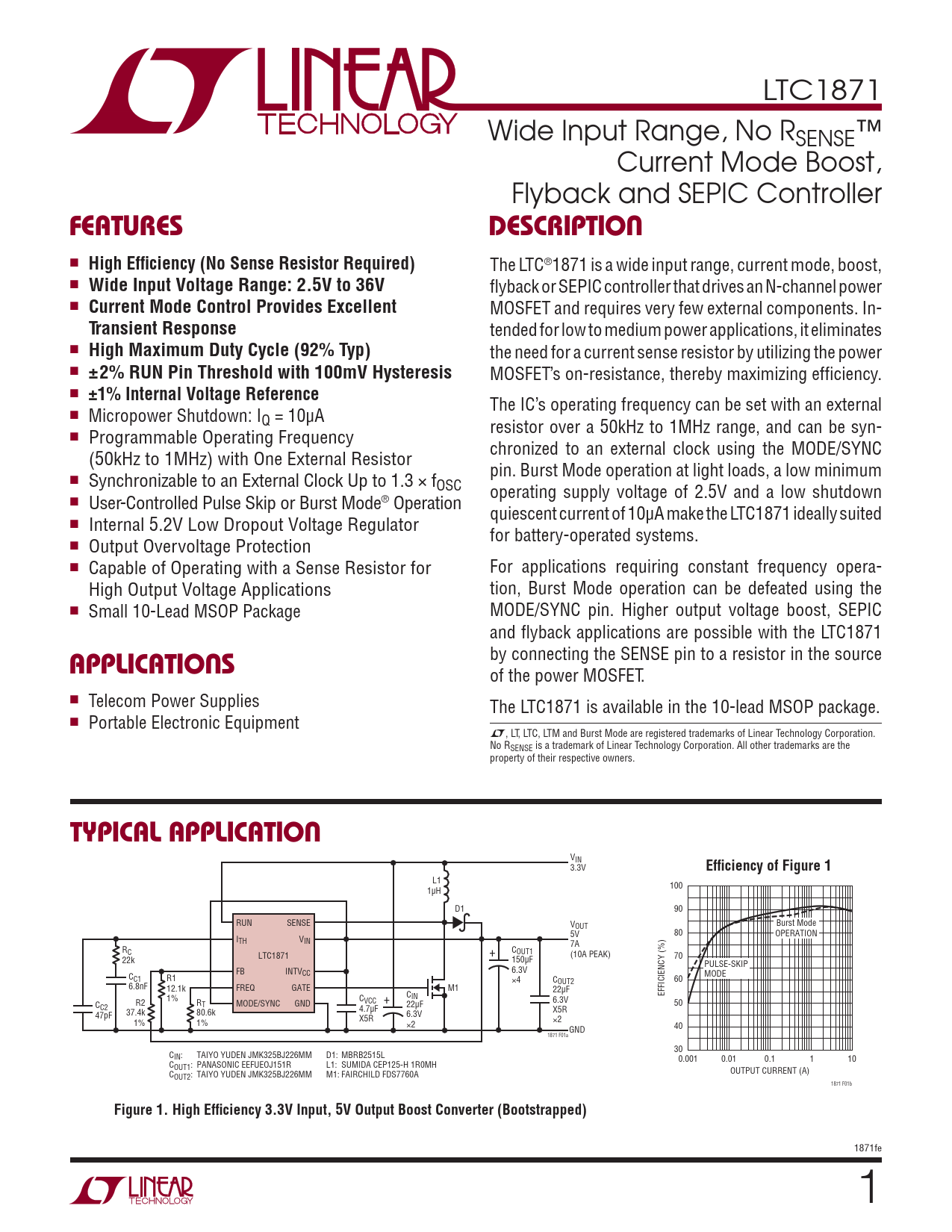

LTC1871 Wide Input Range, No RSENSE™ Current Mode Boost, Flyback and SEPIC Controller
FEATURES DESCRIPTION
n
High Effi ciency (No Sense Resistor Required)
The LTC®1871 is a wide input range, current mode, boost, n
Wide Input Voltage Range: 2.5V to 36V
fl yback or SEPIC controller that drives an N-channel power n
Current Mode Control Provides Excellent
MOSFET and requires very few external components. In-
Transient Response
tended for low to medium power applications, it eliminates n
High Maximum Duty Cycle (92% Typ)
the need for a current sense resistor by utilizing the power n
±2% RUN Pin Threshold with 100mV Hysteresis
MOSFET’s on-resistance, thereby maximizing effi ciency. n
±1% Internal Voltage Reference
The IC’s operating frequency can be set with an external n Micropower Shutdown: IQ = 10μA resistor over a 50kHz to 1MHz range, and can be syn- n Programmable Operating Frequency chronized to an external clock using the MODE/SYNC (50kHz to 1MHz) with One External Resistor pin. Burst Mode operation at light loads, a low minimum n Synchronizable to an External Clock Up to 1.3 × fOSC operating supply voltage of 2.5V and a low shutdown n User-Controlled Pulse Skip or Burst Mode® Operation quiescent current of 10μA make the LTC1871 ideally suited n Internal 5.2V Low Dropout Voltage Regulator for battery-operated systems. n Output Overvoltage Protection n Capable of Operating with a Sense Resistor for For applications requiring constant frequency opera- High Output Voltage Applications tion, Burst Mode operation can be defeated using the n Small 10-Lead MSOP Package MODE/SYNC pin. Higher output voltage boost, SEPIC and fl yback applications are possible with the LTC1871
APPLICATIONS
by connecting the SENSE pin to a resistor in the source of the power MOSFET. n Telecom Power Supplies The LTC1871 is available in the 10-lead MSOP package. n Portable Electronic Equipment L, LT, LTC, LTM and Burst Mode are registered trademarks of Linear Technology Corporation. No RSENSE is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION
VIN 3.3V
Effi ciency of Figure 1
L1 100 1μH D1 90 RUN SENSE VOUT Burst Mode 5V 80 OPERATION ITH VIN 7A RC C LTC1871 OUT1 + (10A PEAK) 70 22k 150μF PULSE-SKIP FB INTV 6.3V CC C MODE C1 R1 ×4 COUT2 60 6.8nF 12.1k FREQ GATE M1 22μF EFFICIENCY (%) 1% CIN R2 R CVCC + 6.3V C T MODE/SYNC GND 22μF 50 C2 37.4k 80.6k 4.7μF X5R 47pF 6.3V 1% 1% X5R ×2 ×2 GND 40 1871 F01a 30 CIN: TAIYO YUDEN JMK325BJ226MM D1: MBRB2515L 0.001 0.01 0.1 1 10 COUT1: PANASONIC EEFUEOJ151R L1: SUMIDA CEP125-H 1R0MH OUTPUT CURRENT (A) COUT2: TAIYO YUDEN JMK325BJ226MM M1: FAIRCHILD FDS7760A 1871 F01b
Figure 1. High Effi ciency 3.3V Input, 5V Output Boost Converter (Bootstrapped)
