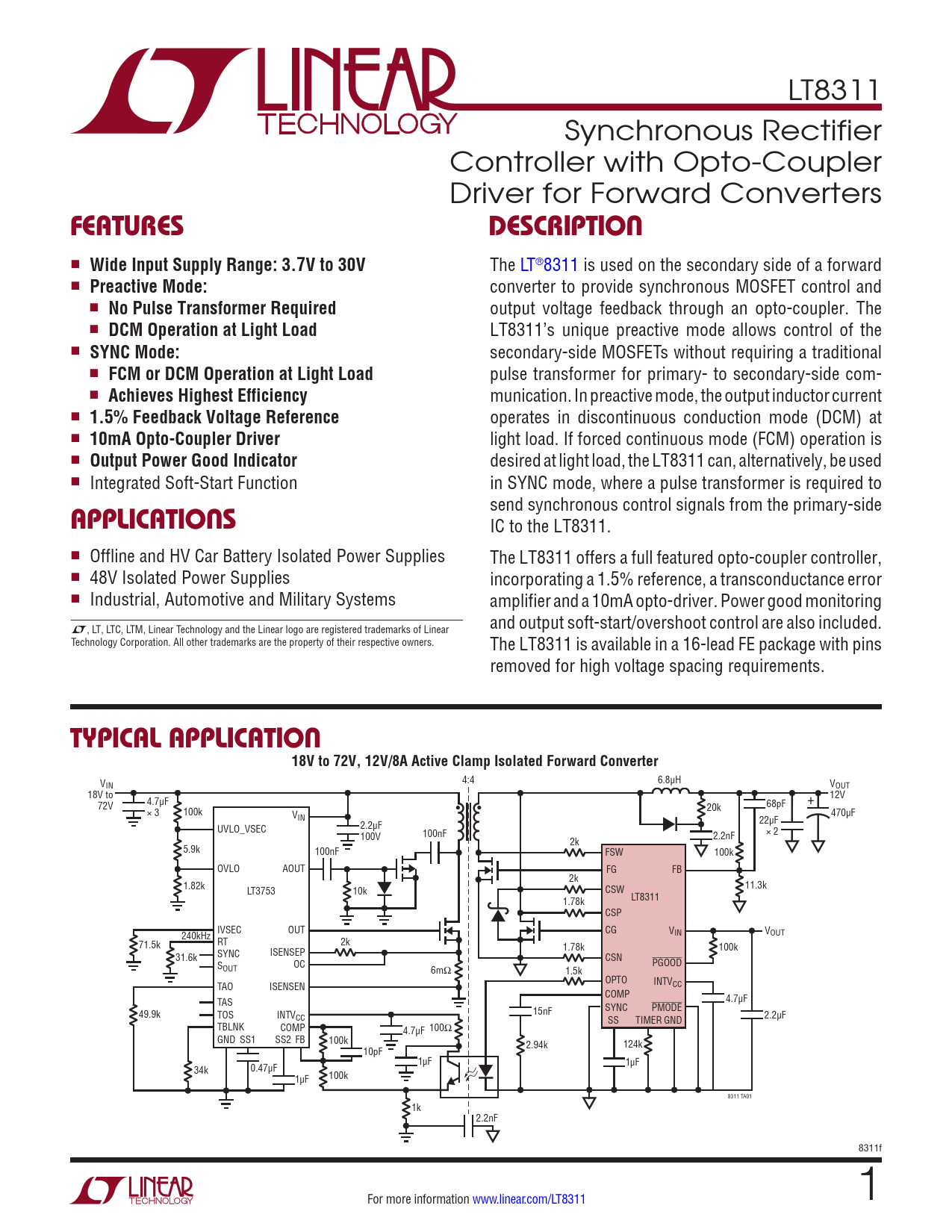

LT8311 Synchronous Rectifier Controller with Opto-Coupler Driver for Forward Converters
FEATURES DESCRIPTION
n
Wide Input Supply Range: 3.7V to 30V
The LT®8311 is used on the secondary side of a forward n
Preactive Mode:
converter to provide synchronous MOSFET control and n
No Pulse Transformer Required
output voltage feedback through an opto-coupler. The n
DCM Operation at Light Load
LT8311’s unique preactive mode allows control of the n
SYNC Mode:
secondary-side MOSFETs without requiring a traditional n
FCM or DCM Operation at Light Load
pulse transformer for primary- to secondary-side com- n
Achieves Highest Efficiency
munication. In preactive mode, the output inductor current n
1.5% Feedback Voltage Reference
operates in discontinuous conduction mode (DCM) at n
10mA Opto-Coupler Driver
light load. If forced continuous mode (FCM) operation is n
Output Power Good Indicator
desired at light load, the LT8311 can, alternatively, be used n Integrated Soft-Start Function in SYNC mode, where a pulse transformer is required to send synchronous control signals from the primary-side
APPLICATIONS
IC to the LT8311. n Offline and HV Car Battery Isolated Power Supplies The LT8311 offers a full featured opto-coupler controller, n 48V Isolated Power Supplies incorporating a 1.5% reference, a transconductance error n Industrial, Automotive and Military Systems amplifier and a 10mA opto-driver. Power good monitoring L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear and output soft-start/overshoot control are also included. Technology Corporation. All other trademarks are the property of their respective owners. The LT8311 is available in a 16-lead FE package with pins removed for high voltage spacing requirements.
TYPICAL APPLICATION 18V to 72V, 12V/8A Active Clamp Isolated Forward Converter
