Datasheet AT90S8515 (Atmel) - 9
| Manufacturer | Atmel |
| Description | 8-bit AVR Microcontroller with 8K Bytes In-System Programmable Flash |
| Pages / Page | 112 / 9 — AT90S8515. Figure 5. Memory Maps. Program Memory Data Memory. $000 32 … |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
AT90S8515. Figure 5. Memory Maps. Program Memory Data Memory. $000 32 Gen. Purpose $0000. Working Registers $001F. $0020
Model Line for this Datasheet
- AT90S8515-4AC AT90S8515-4AI AT90S8515-4JC AT90S8515-4JI AT90S8515-4PC AT90S8515-4PI AT90S8515-8AC AT90S8515-8AI AT90S8515-8JC AT90S8515-8JI AT90S8515-8PC AT90S8515-8PI AT90S8515A-4AC AT90S8515A-4AI AT90S8515A-4JC AT90S8515A-4JI AT90S8515A-4PC AT90S8515A-4PI AT90S8515A-8AC AT90S8515A-8AI AT90S8515A-8JC AT90S8515A-8JI AT90S8515A-8PC AT90S8515A-8PI
Text Version of Document
AT90S8515

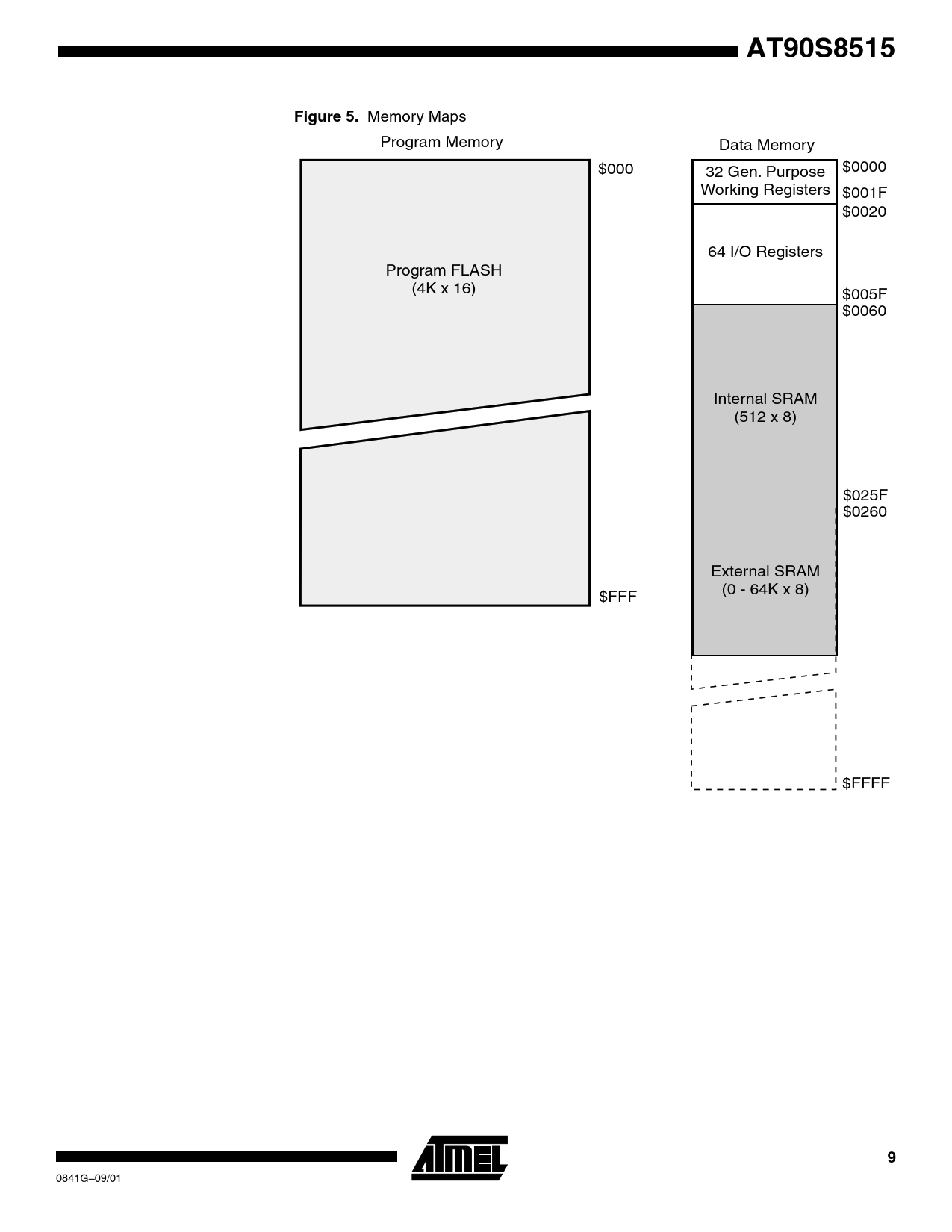

Figure 5. Memory Maps
Program Memory Data Memory
$000 32 Gen. Purpose $0000
Working Registers $001F
$0020
64 I/O Registers Program FLASH
(4K x 16) $005F
$0060 Internal SRAM
(512 x 8) $025F
$0260 $FFF External SRAM
(0 -64K x 8) $FFFF 9
