Datasheet AT90S2323, AT90LS2323, AT90S2343, AT90LS2343 (Atmel) - 62
| Manufacturer | Atmel |
| Description | 8-bit AVR Microcontroller with 2K Bytes of In-System Programmable Flash |
| Pages / Page | 64 / 62 — Packaging Information. 8P3 8P3, 8-lead, Plastic Dual Inline. Package … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

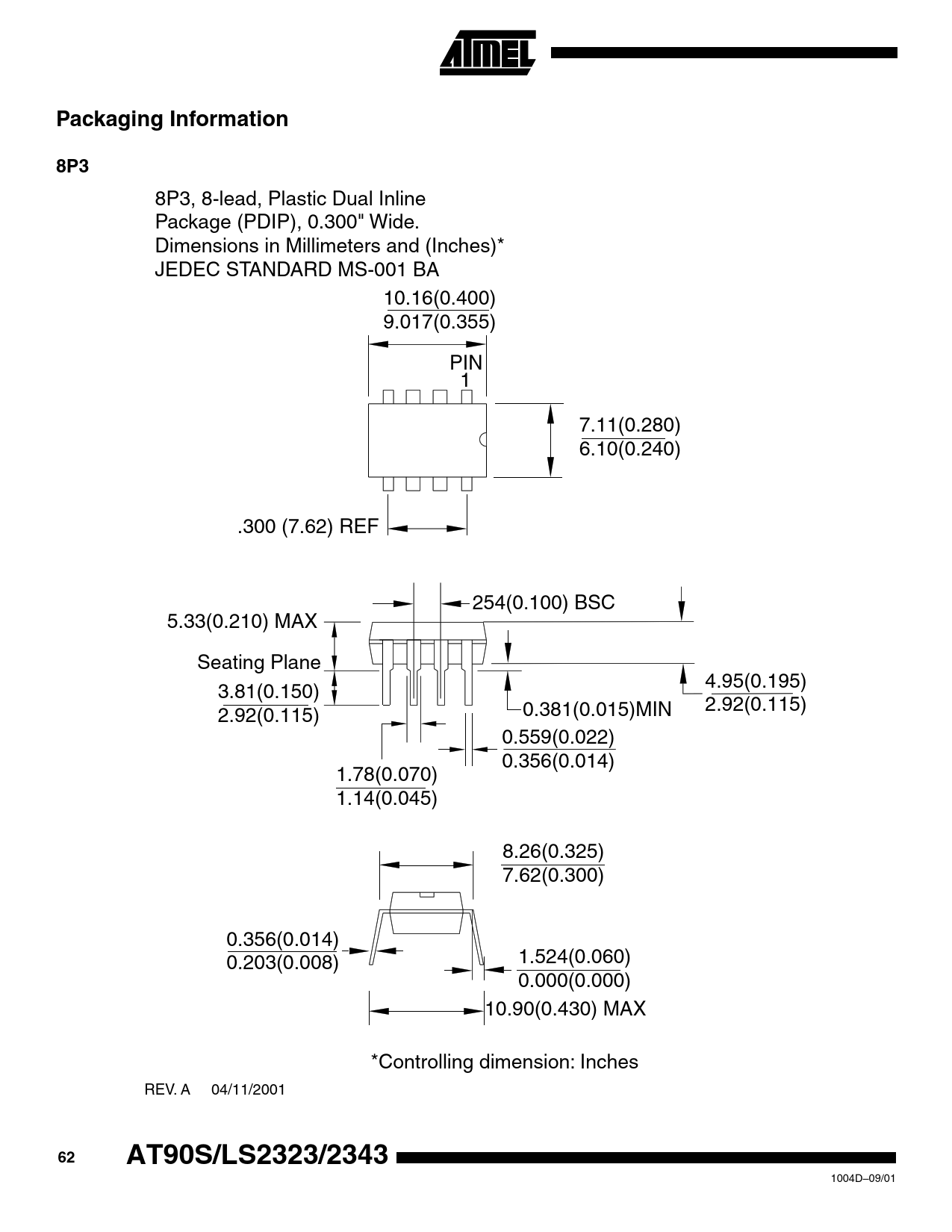

Packaging Information. 8P3 8P3, 8-lead, Plastic Dual Inline. Package (PDIP), 0.300 Wide
Model Line for this Datasheet
Text Version of Document
Packaging Information
8P3 8P3, 8-lead, Plastic Dual Inline
Package (PDIP), 0.300" Wide.
Dimensions in Millimeters and (Inches)*
JEDEC STANDARD MS-001 BA
10.16(0.400)
9.017(0.355)
PIN
1
7.11(0.280)
6.10(0.240) .300 (7.62) REF 254(0.100) BSC
5.33(0.210) MAX
Seating Plane
3.81(0.150)
2.92(0.115)
1.78(0.070)
1.14(0.045) 0.381(0.015)MIN
0.559(0.022)
0.356(0.014) 4.95(0.195)
2.92(0.115) 8.26(0.325)
7.62(0.300)
0.356(0.014)
0.203(0.008) 1.524(0.060)
0.000(0.000)
10.90(0.430) MAX
*Controlling dimension: Inches REV. A 62 04/11/2001 AT90S/LS2323/2343
