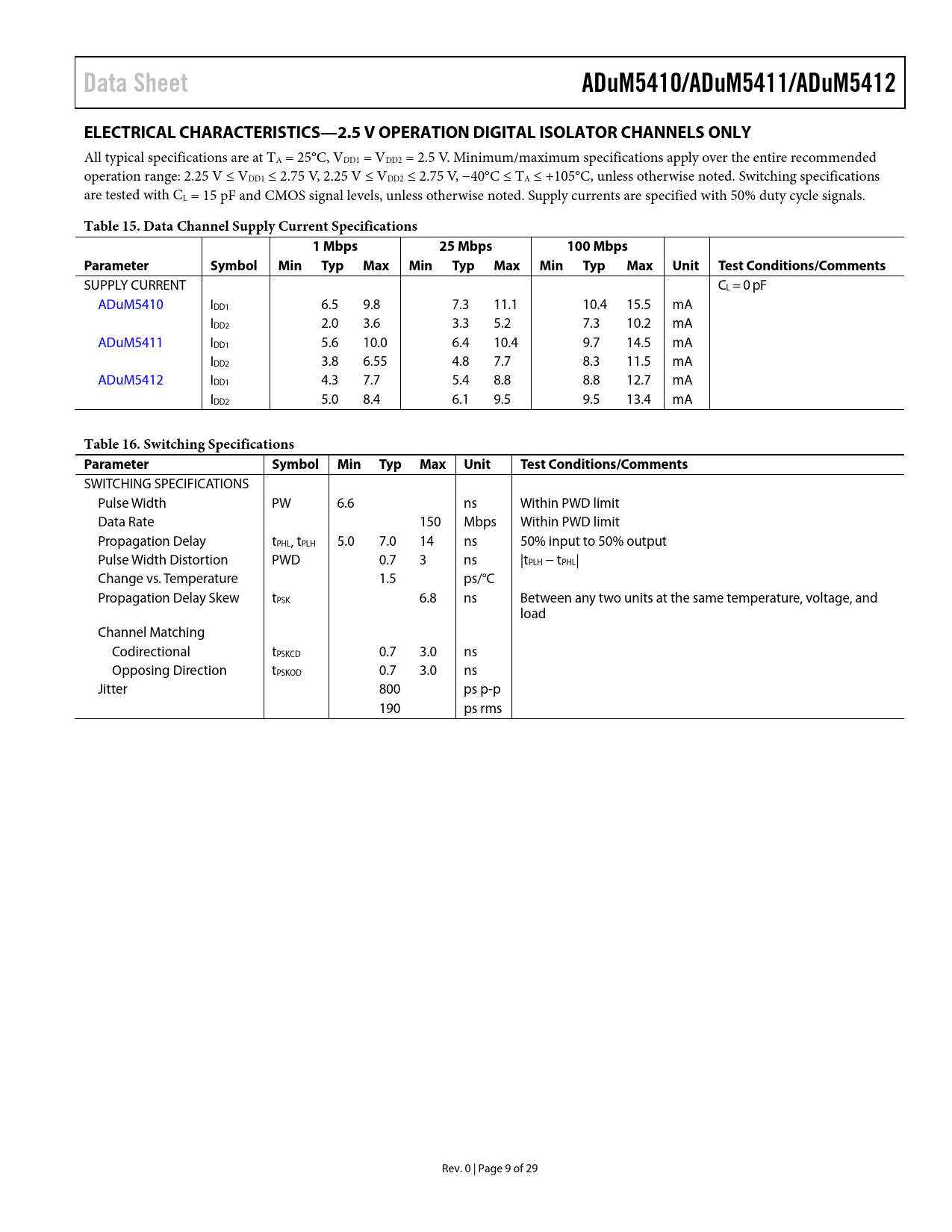

Data Sheet. ADuM5410/ADuM5411/ADuM5412. ELECTRICAL CHARACTERISTICS—2.5 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY
Model Line for this Datasheet
Text Version of Document
Data Sheet ADuM5410/ADuM5411/ADuM5412 ELECTRICAL CHARACTERISTICS—2.5 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY
All typical specifications are at TA = 25°C, VDD1 = VDD2 = 2.5 V. Minimum/maximum specifications apply over the entire recommended operation range: 2.25 V ≤ VDD1 ≤ 2.75 V, 2.25 V ≤ VDD2 ≤ 2.75 V, −40°C ≤ TA ≤ +105°C, unless otherwise noted. Switching specifications are tested with CL = 15 pF and CMOS signal levels, unless otherwise noted. Supply currents are specified with 50% duty cycle signals.
Table 15. Data Channel Supply Current Specifications 1 Mbps 25 Mbps 100 Mbps Parameter Symbol Min Typ Max Min Typ Max Min Typ Max Unit Test Conditions/Comments
SUPPLY CURRENT CL = 0 pF ADuM5410 IDD1 6.5 9.8 7.3 11.1 10.4 15.5 mA IDD2 2.0 3.6 3.3 5.2 7.3 10.2 mA ADuM5411 IDD1 5.6 10.0 6.4 10.4 9.7 14.5 mA IDD2 3.8 6.55 4.8 7.7 8.3 11.5 mA ADuM5412 IDD1 4.3 7.7 5.4 8.8 8.8 12.7 mA IDD2 5.0 8.4 6.1 9.5 9.5 13.4 mA
Table 16. Switching Specifications Parameter Symbol Min Typ Max Unit Test Conditions/Comments
