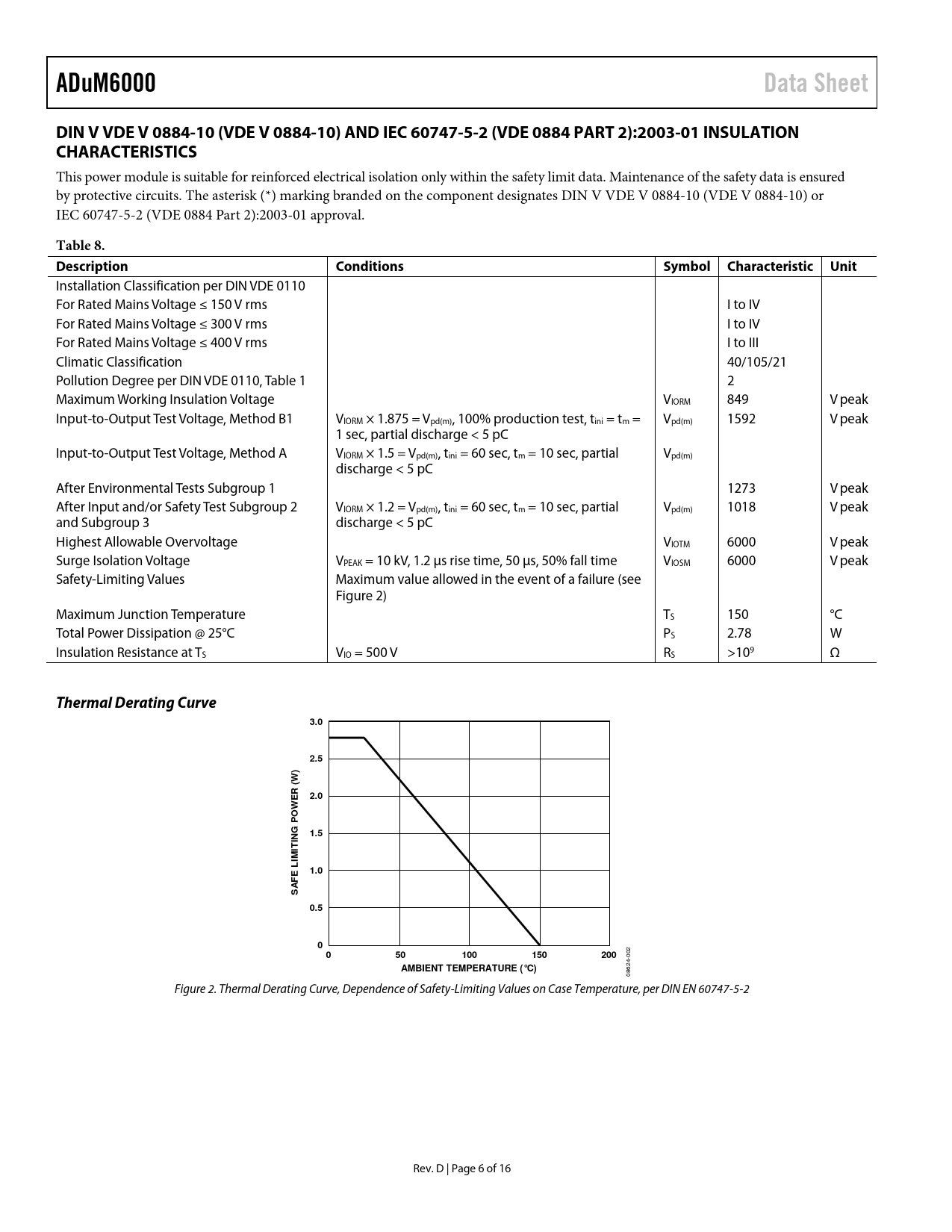

ADuM6000 Data Sheet DIN V VDE V 0884-10 (VDE V 0884-10) AND IEC 60747-5-2 (VDE 0884 PART 2):2003-01 INSULATION CHARACTERISTICS
This power module is suitable for reinforced electrical isolation only within the safety limit data. Maintenance of the safety data is ensured by protective circuits. The asterisk (*) marking branded on the component designates DIN V VDE V 0884-10 (VDE V 0884-10) or IEC 60747-5-2 (VDE 0884 Part 2):2003-01 approval.
Table 8. Description Conditions Symbol Characteristic Unit
Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 150 V rms I to IV For Rated Mains Voltage ≤ 300 V rms I to IV For Rated Mains Voltage ≤ 400 V rms I to III Climatic Classification 40/105/21 Pollution Degree per DIN VDE 0110, Table 1 2 Maximum Working Insulation Voltage VIORM 849 V peak Input-to-Output Test Voltage, Method B1 VIORM × 1.875 = Vpd(m), 100% production test, tini = tm = Vpd(m) 1592 V peak 1 sec, partial discharge < 5 pC Input-to-Output Test Voltage, Method A VIORM × 1.5 = Vpd(m), tini = 60 sec, tm = 10 sec, partial Vpd(m) discharge < 5 pC After Environmental Tests Subgroup 1 1273 V peak After Input and/or Safety Test Subgroup 2 VIORM × 1.2 = Vpd(m), tini = 60 sec, tm = 10 sec, partial Vpd(m) 1018 V peak and Subgroup 3 discharge < 5 pC Highest Allowable Overvoltage VIOTM 6000 V peak Surge Isolation Voltage VPEAK = 10 kV, 1.2 µs rise time, 50 µs, 50% fall time VIOSM 6000 V peak Safety-Limiting Values Maximum value allowed in the event of a failure (see Figure 2) Maximum Junction Temperature TS 150 °C Total Power Dissipation @ 25°C PS 2.78 W Insulation Resistance at TS VIO = 500 V RS >109 Ω
Thermal Derating Curve 3.0 2.5 W) ( R 2.0 OWE G P 1.5 ITIN LIM 1.0 FE A S 0.5 0 0 50 100 150 200
002
AMBIENT TEMPERATURE (°C)
08624- Figure 2. Thermal Derating Curve, Dependence of Safety-Limiting Values on Case Temperature, per DIN EN 60747-5-2 Rev. D | Page 6 of 16 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics—5 V Primary Input Supply/5 V Secondary Isolated Supply Electrical Characteristics—3.3 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/3.3 V Secondary Isolated Supply Package Characteristics Regulatory Information Insulation and Safety-Related Specifications DIN V VDE V 0884-10 (VDE V 0884-10) and IEC 60747-5-2 (VDE 0884 Part 2):2003-01 Insulation Characteristics Thermal Derating Curve Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information PCB Layout Start-Up Behavior EMI Considerations Thermal Analysis Current Limit and Thermal Overload Protection Power Considerations Increasing Available Power Insulation Lifetime Outline Dimensions Ordering Guide
