Datasheet ADR4520, ADR4525, ADR4530, ADR4533, ADR4540, ADR4550 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference |
| Pages / Page | 33 / 9 — Data Sheet. ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550. ABSOLUTE … |
| Revision | B |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

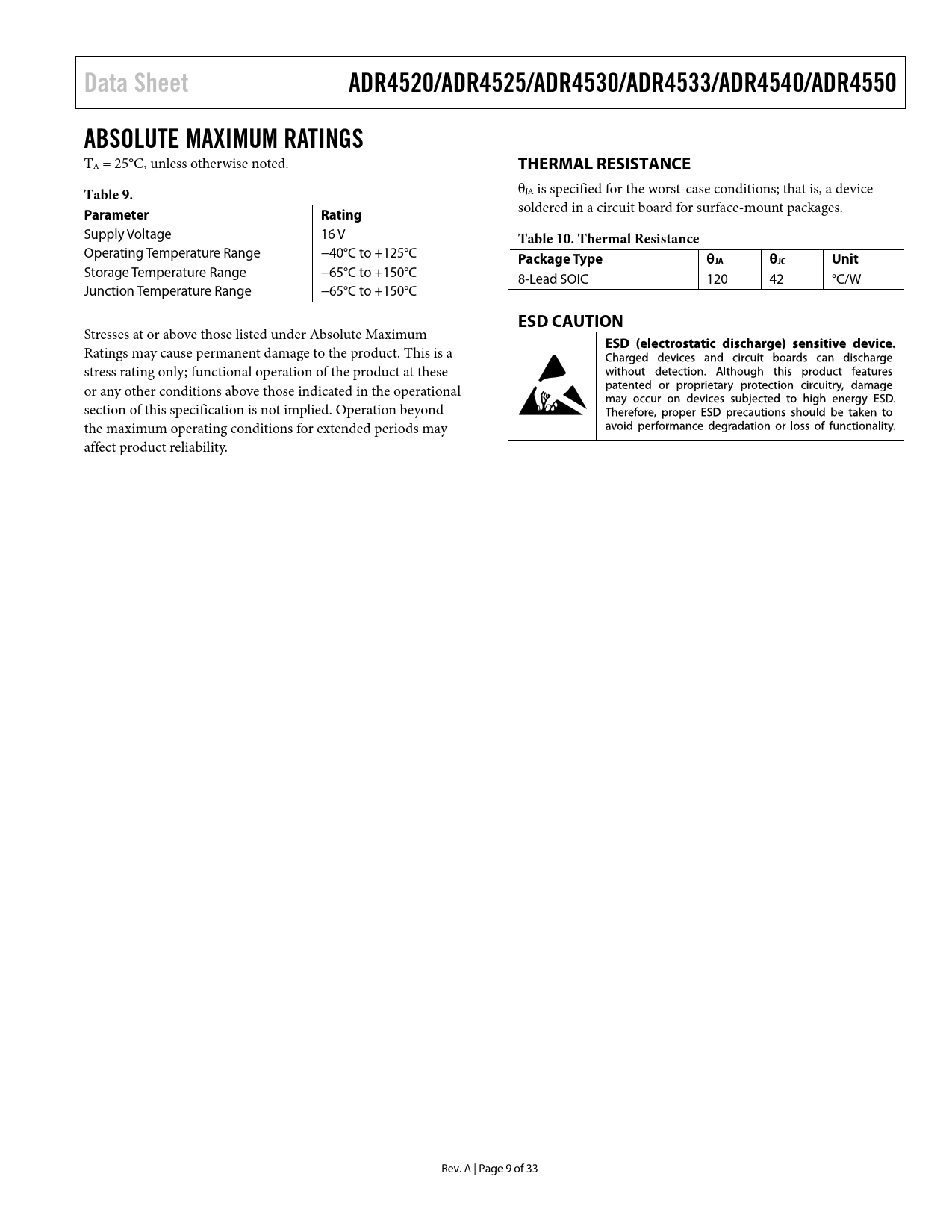

Data Sheet. ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 9. Parameter
Model Line for this Datasheet
Text Version of Document
Data Sheet ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 9.
θJA is specified for the worst-case conditions; that is, a device
Parameter Rating
soldered in a circuit board for surface-mount packages. Supply Voltage 16 V
Table 10. Thermal Resistance
Operating Temperature Range −40°C to +125°C
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC 120 42 °C/W Junction Temperature Range −65°C to +150°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 9 of 33 Document Outline Features Applications Pin Configuration General Description Revision History Specifications ADR4520 Electrical Characteristics ADR4525 Electrical Characteristics ADR4530 Electrical Characteristics ADR4533 Electrical Characteristics ADR4540 Electrical Characteristics ADR4550 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics ADR4520 ADR4525 ADR4530 ADR4533 ADR4540 ADR4550 Terminology Theory of Operation Long-Term Drift Power Dissipation Applications Information Basic Voltage Reference Connection Input and Output Capacitors Input Capacitors Output Capacitors Location of Reference in System Sample Applications Bipolar Output Reference Boosted Output Current Reference Outline Dimensions Ordering Guide Automotive Products
