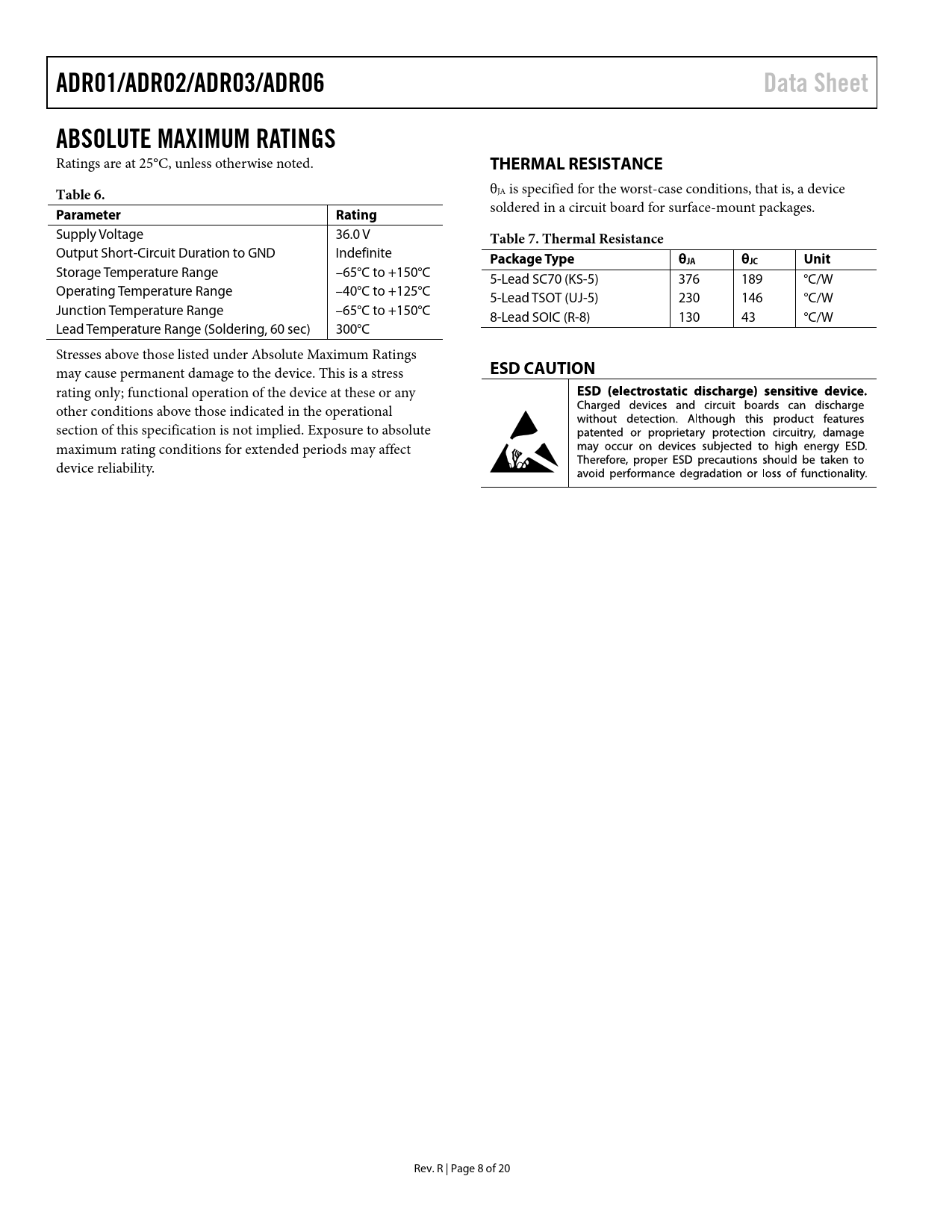

ADR01/ADR02/ADR03/ADR06Data SheetABSOLUTE MAXIMUM RATINGS Ratings are at 25°C, unless otherwise noted. THERMAL RESISTANCETable 6. θJA is specified for the worst-case conditions, that is, a device ParameterRating soldered in a circuit board for surface-mount packages. Supply Voltage 36.0 V Table 7. Thermal Resistance Output Short-Circuit Duration to GND Indefinite Package TypeθJAθJCUnit Storage Temperature Range –65°C to +150°C 5-Lead SC70 (KS-5) 376 189 °C/W Operating Temperature Range –40°C to +125°C 5-Lead TSOT (UJ-5) 230 146 °C/W Junction Temperature Range –65°C to +150°C 8-Lead SOIC (R-8) 130 43 °C/W Lead Temperature Range (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress ESD CAUTION rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. R | Page 8 of 20 Document Outline Features Applications Pin Configurations General Description Revision History Specifications ADR01 Electrical Characteristics ADR02 Electrical Characteristics ADR03 Electrical Characteristics ADR06 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Terminology Typical Performance Characteristics Applications Information Overview Applying the ADR01/ADR02/ADR03/ADR06 Input and Output Capacitors Output Adjustment Temperature Monitoring Low Cost Current Source Precision Current Source with Adjustable Output Programmable 4 mA to 20 mA Current Transmitter Precision Boosted Output Regulator Outline Dimensions Ordering Guides ADR01 Ordering Guide ADR02 Ordering Guide ADR03 Ordering Guide ADR06 Ordering Guide Automotive Products
