Datasheet ADR280 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 1.2 V Ultralow Power High PSRR Voltage Reference |
| Pages / Page | 12 / 4 — ADR280. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter … |
| Revision | C |
| File Format / Size | PDF / 863 Kb |
| Document Language | English |

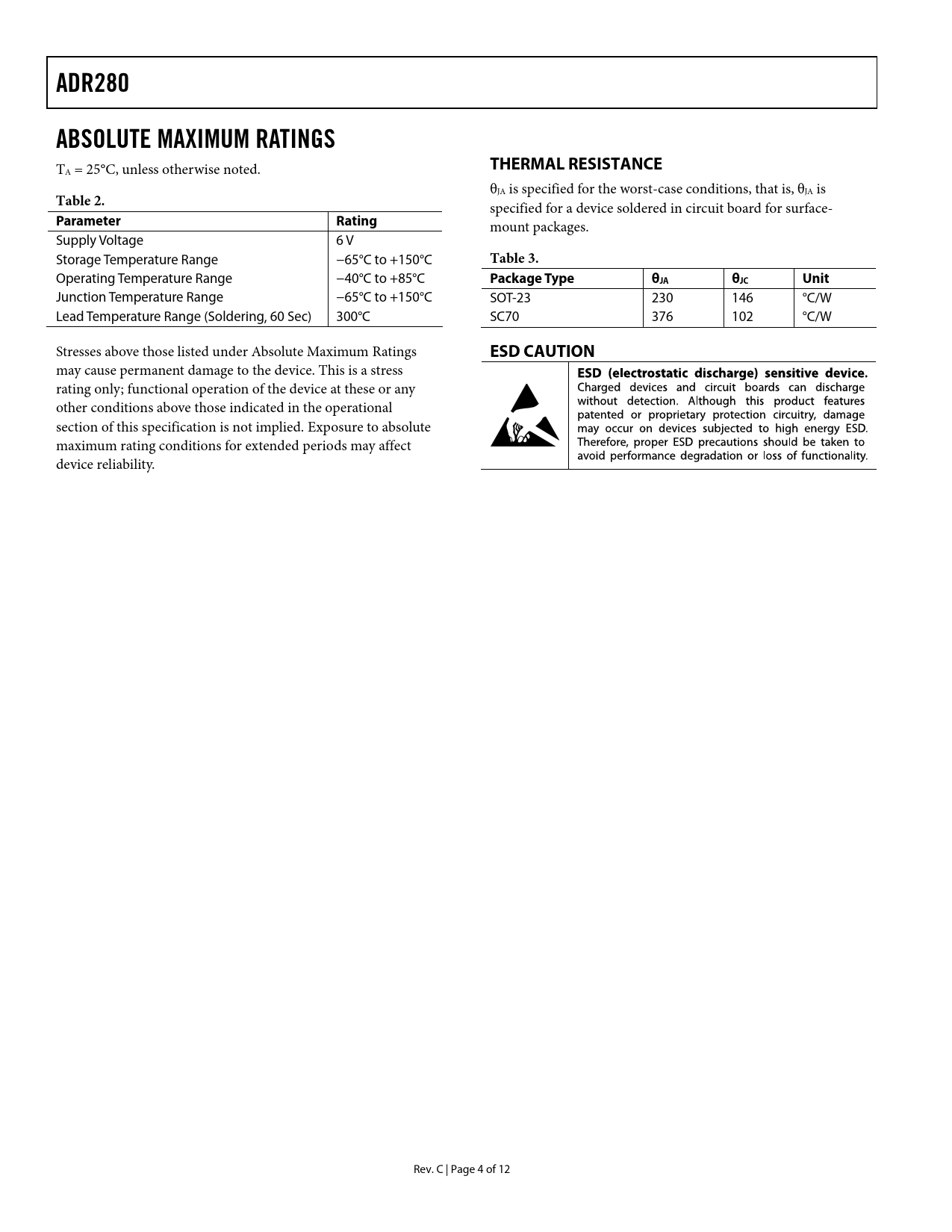

ADR280. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter Rating. Table 3. Package Type. θJA. θJC Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADR280 ABSOLUTE MAXIMUM RATINGS
T
THERMAL RESISTANCE
A = 25°C, unless otherwise noted. θJA is specified for the worst-case conditions, that is, θJA is
Table 2.
specified for a device soldered in circuit board for surface-
Parameter Rating
mount packages. Supply Voltage 6 V Storage Temperature Range −65°C to +150°C
Table 3.
Operating Temperature Range −40°C to +85°C
Package Type θJA θJC Unit
Junction Temperature Range −65°C to +150°C SOT-23 230 146 °C/W Lead Temperature Range (Soldering, 60 Sec) 300°C SC70 376 102 °C/W Stresses above those listed under Absolute Maximum Ratings
ESD CAUTION
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. C | Page 4 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION LOW COST, LOW POWER CURRENT SOURCE Precision Low Power Current Source Boosted Current Source Negative Reference Boosted Reference with Scalable Output GSM and 3G Mobile Station Applications OUTLINE DIMENSIONS ORDERING GUIDE
