| Manufacturer | Analog Devices |
| Description | Low Noise, Micropower 5.0 V Precision Voltage Reference |
| Pages / Page | 12 / 4 — ADR293. Table 4. Parameter. Symbol. Conditions. Min. Typ. Max. Unit |
| Revision | D |
| File Format / Size | PDF / 261 Kb |
| Document Language | English |

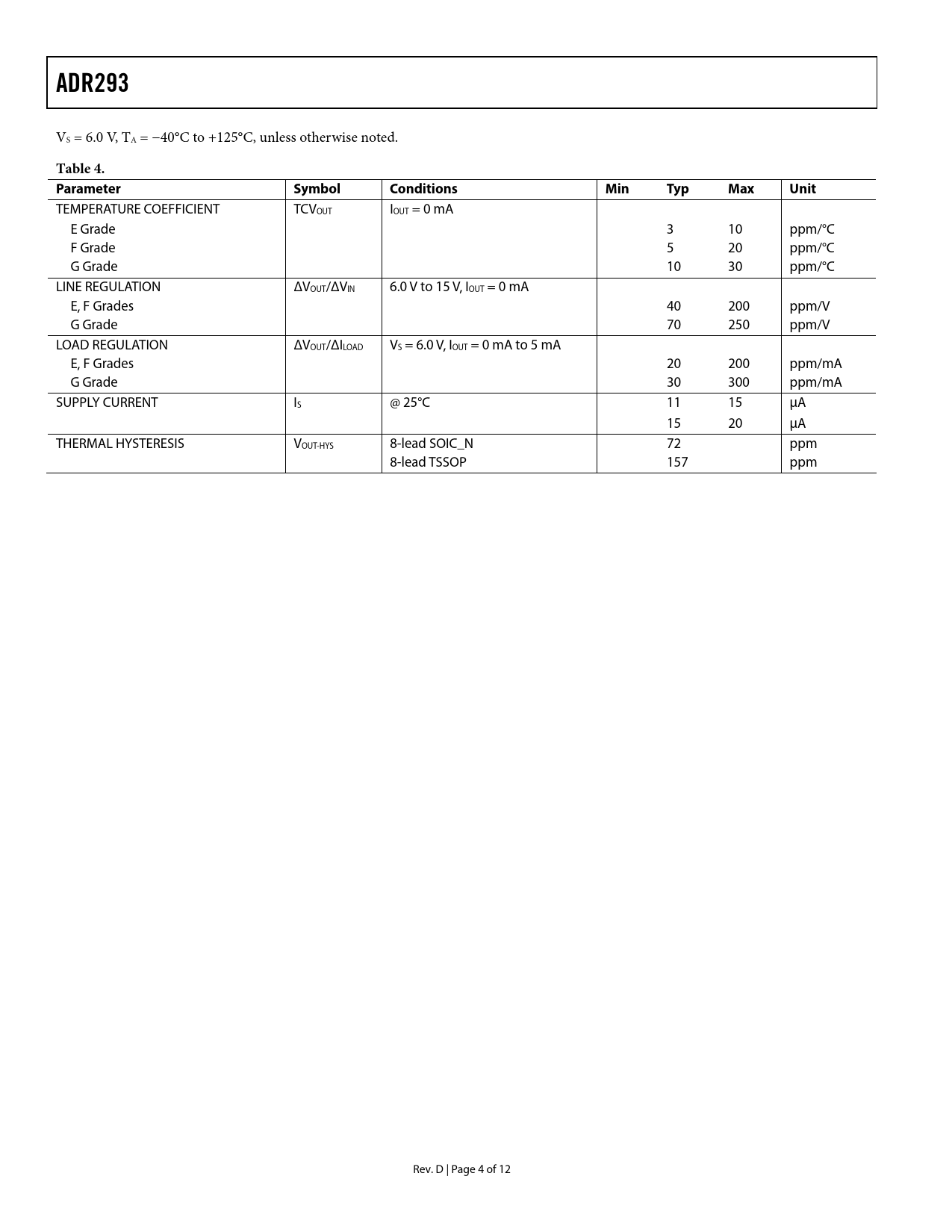

ADR293. Table 4. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
ADR293
VS = 6.0 V, TA = −40°C to +125°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT TCVOUT IOUT = 0 mA E Grade 3 10 ppm/°C F Grade 5 20 ppm/°C G Grade 10 30 ppm/°C LINE REGULATION ΔVOUT/ΔVIN 6.0 V to 15 V, IOUT = 0 mA E, F Grades 40 200 ppm/V G Grade 70 250 ppm/V LOAD REGULATION ΔVOUT/ΔILOAD VS = 6.0 V, IOUT = 0 mA to 5 mA E, F Grades 20 200 ppm/mA G Grade 30 300 ppm/mA SUPPLY CURRENT IS @ 25°C 11 15 μA 15 20 μA THERMAL HYSTERESIS VOUT-HYS 8-lead SOIC_N 72 ppm 8-lead TSSOP 157 ppm Rev. D | Page 4 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION DEVICE POWER DISSIPATION CONSIDERATIONS BASIC VOLTAGE REFERENCE CONNECTIONS NOISE PERFORMANCE TURN-ON TIME APPLICATIONS KELVIN CONNECTIONS VOLTAGE REGULATOR FOR PORTABLE EQUIPMENT OUTLINE DIMENSIONS ORDERING GUIDE
