Datasheet ADR291, ADR292 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Low Noise Micropower Precision Voltage Reference (4.096 V) |
| Pages / Page | 20 / 5 — ADR291/ADR292. Table 6. Parameter. Symbol. Conditions. Min. Typ. Max. … |
| Revision | F |
| File Format / Size | PDF / 350 Kb |
| Document Language | English |

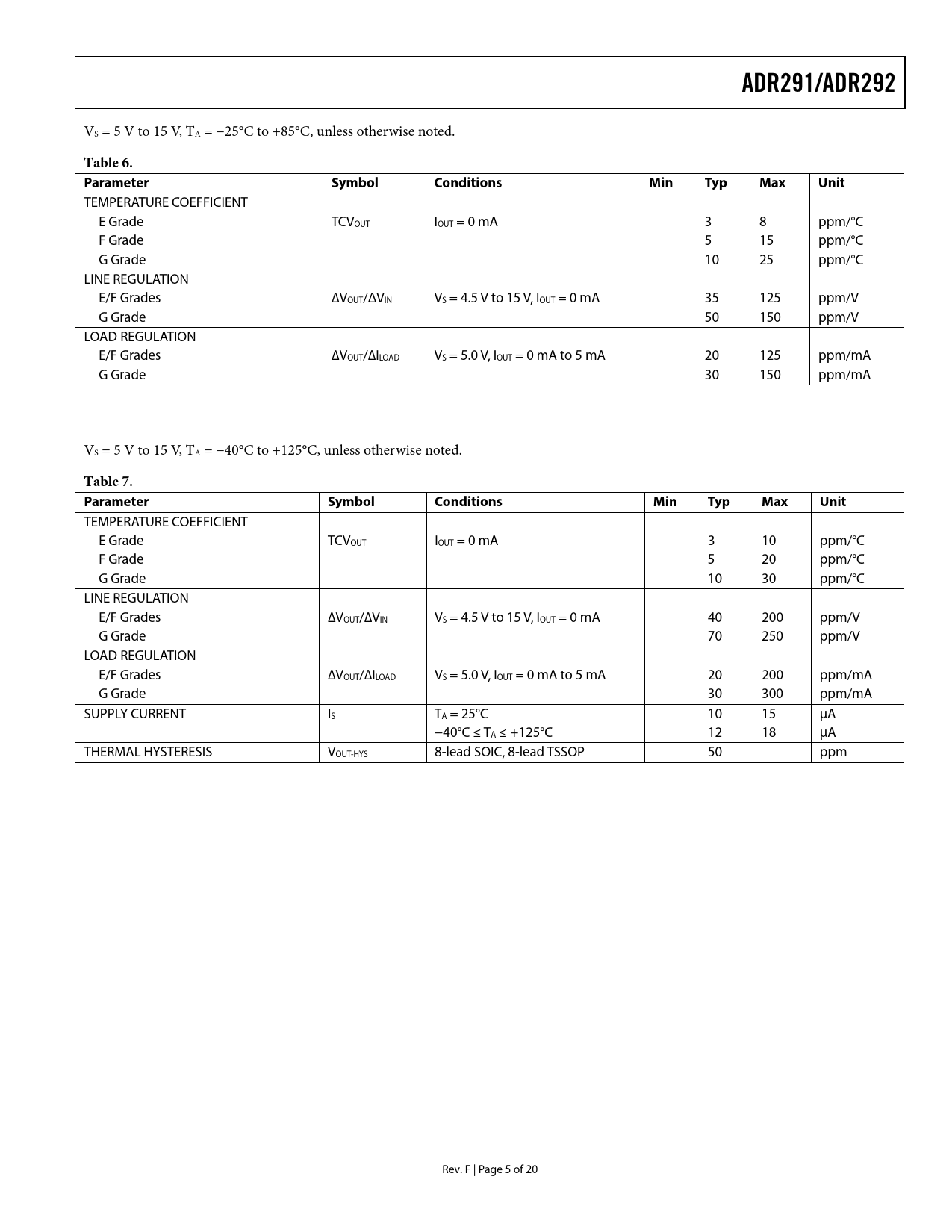

ADR291/ADR292. Table 6. Parameter. Symbol. Conditions. Min. Typ. Max. Unit. Table 7. Parameter
Model Line for this Datasheet
Text Version of Document
ADR291/ADR292
VS = 5 V to 15 V, TA = −25°C to +85°C, unless otherwise noted.
Table 6. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT E Grade TCVOUT IOUT = 0 mA 3 8 ppm/°C F Grade 5 15 ppm/°C G Grade 10 25 ppm/°C LINE REGULATION E/F Grades ∆VOUT/ΔVIN VS = 4.5 V to 15 V, IOUT = 0 mA 35 125 ppm/V G Grade 50 150 ppm/V LOAD REGULATION E/F Grades ∆VOUT/∆ILOAD VS = 5.0 V, IOUT = 0 mA to 5 mA 20 125 ppm/mA G Grade 30 150 ppm/mA VS = 5 V to 15 V, TA = −40°C to +125°C, unless otherwise noted.
Table 7. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT E Grade TCVOUT IOUT = 0 mA 3 10 ppm/°C F Grade 5 20 ppm/°C G Grade 10 30 ppm/°C LINE REGULATION E/F Grades ∆VOUT/∆VIN VS = 4.5 V to 15 V, IOUT = 0 mA 40 200 ppm/V G Grade 70 250 ppm/V LOAD REGULATION E/F Grades ∆VOUT/∆ILOAD VS = 5.0 V, IOUT = 0 mA to 5 mA 20 200 ppm/mA G Grade 30 300 ppm/mA SUPPLY CURRENT IS TA = 25°C 10 15 μA −40°C ≤ TA ≤ +125°C 12 18 μA THERMAL HYSTERESIS VOUT-HYS 8-lead SOIC, 8-lead TSSOP 50 ppm Rev. F | Page 5 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ADR291 ELECTRICAL SPECIFICATIONS ADR292 ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION DEVICE POWER DISSIPATION CONSIDERATIONS BASIC VOLTAGE REFERENCE CONNECTIONS NOISE PERFORMANCE TURN-ON TIME APPLICATIONS INFORMATION HIGH VOLTAGE FLOATING CURRENT SOURCE KELVIN CONNECTIONS LOW POWER, LOW VOLTAGE REFERENCE FOR DATA CONVERTERS VOLTAGE REGULATOR FOR PORTABLE EQUIPMENT OUTLINE DIMENSIONS ORDERING GUIDE
