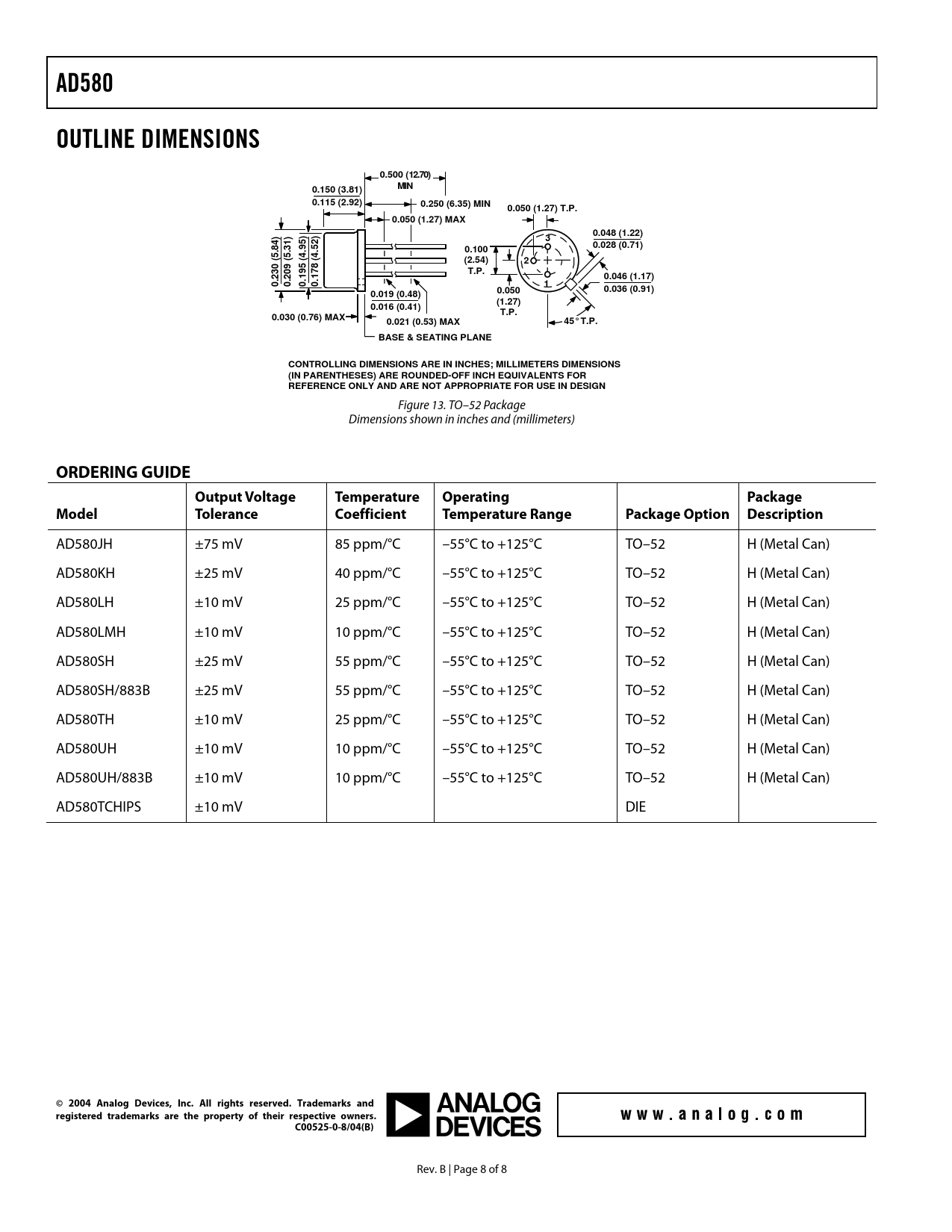

AD580 OUTLINE DIMENSIONS 0.500 (12.70) 0.150 (3.81) MIN 0.115 (2.92) 0.250 (6.35) MIN 0.050 (1.27) T.P. 0.050 (1.27) MAX 0.048 (1.22) 3 0.028 (0.71) 0.100 5.84) 5.31) 4.95) 4.52) (2.54) 2 T.P. 0.046 (1.17) 0.230 ( 0.209 ( 0.195 ( 0.178 ( 1 0.036 (0.91) 0.019 (0.48) 0.050 (1.27) 0.016 (0.41) T.P. 0.030 (0.76) MAX 0.021 (0.53) MAX 45° T.P. BASE & SEATING PLANE CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETERS DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN
Figure 13. TO–52 Package Dimensions shown in inches and (millimeters)
ORDERING GUIDE Output Voltage Temperature Operating Package Model Tolerance Coefficient Temperature Range Package Option Description
AD580JH ±75 mV 85 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580KH ±25 mV 40 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580LH ±10 mV 25 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580LMH ±10 mV 10 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580SH ±25 mV 55 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580SH/883B ±25 mV 55 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580TH ±10 mV 25 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580UH ±10 mV 10 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580UH/883B ±10 mV 10 ppm/°C –55°C to +125°C TO–52 H (Metal Can) AD580TCHIPS ±10 mV DIE
