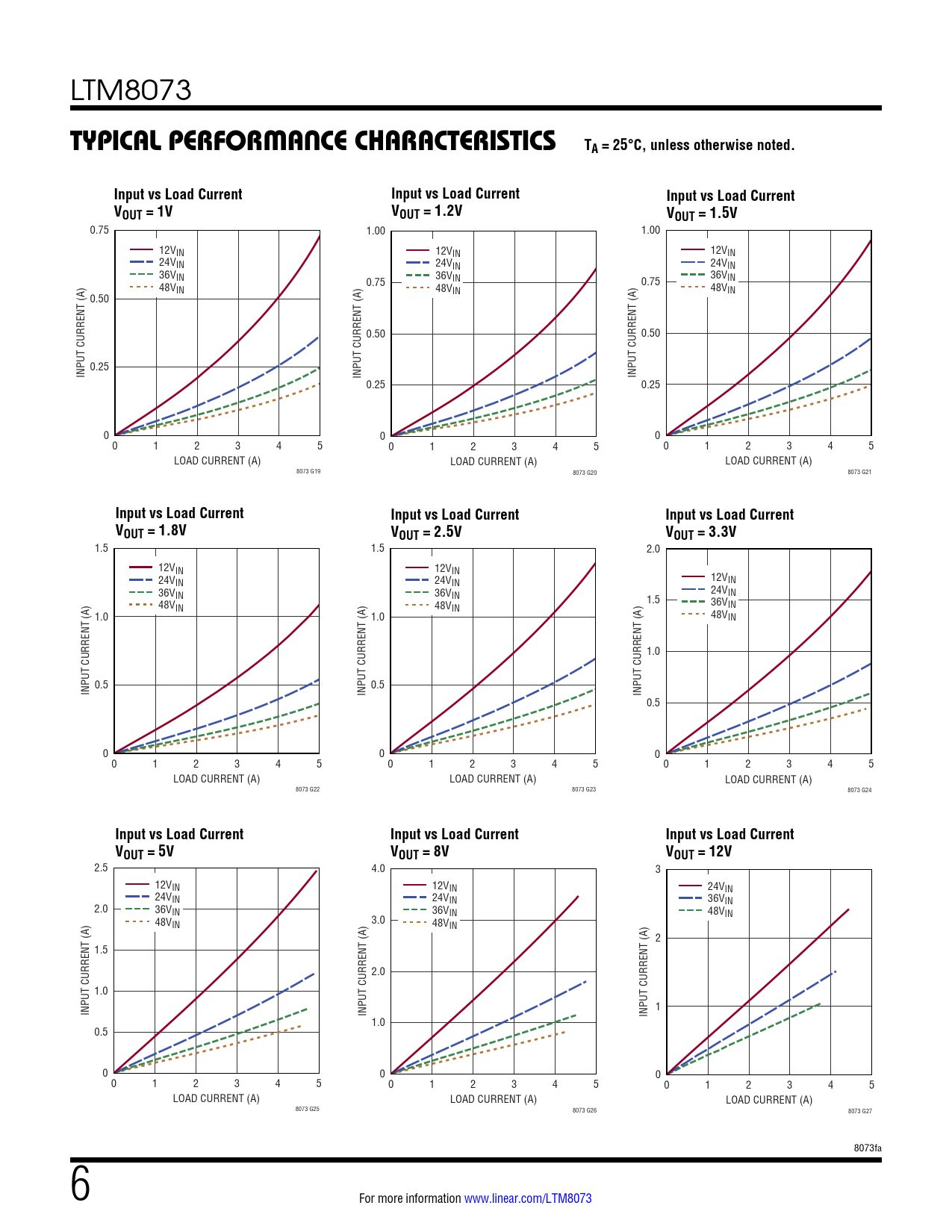

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Input vs Load Current. VOUT = 1V. VOUT = 1.2V
