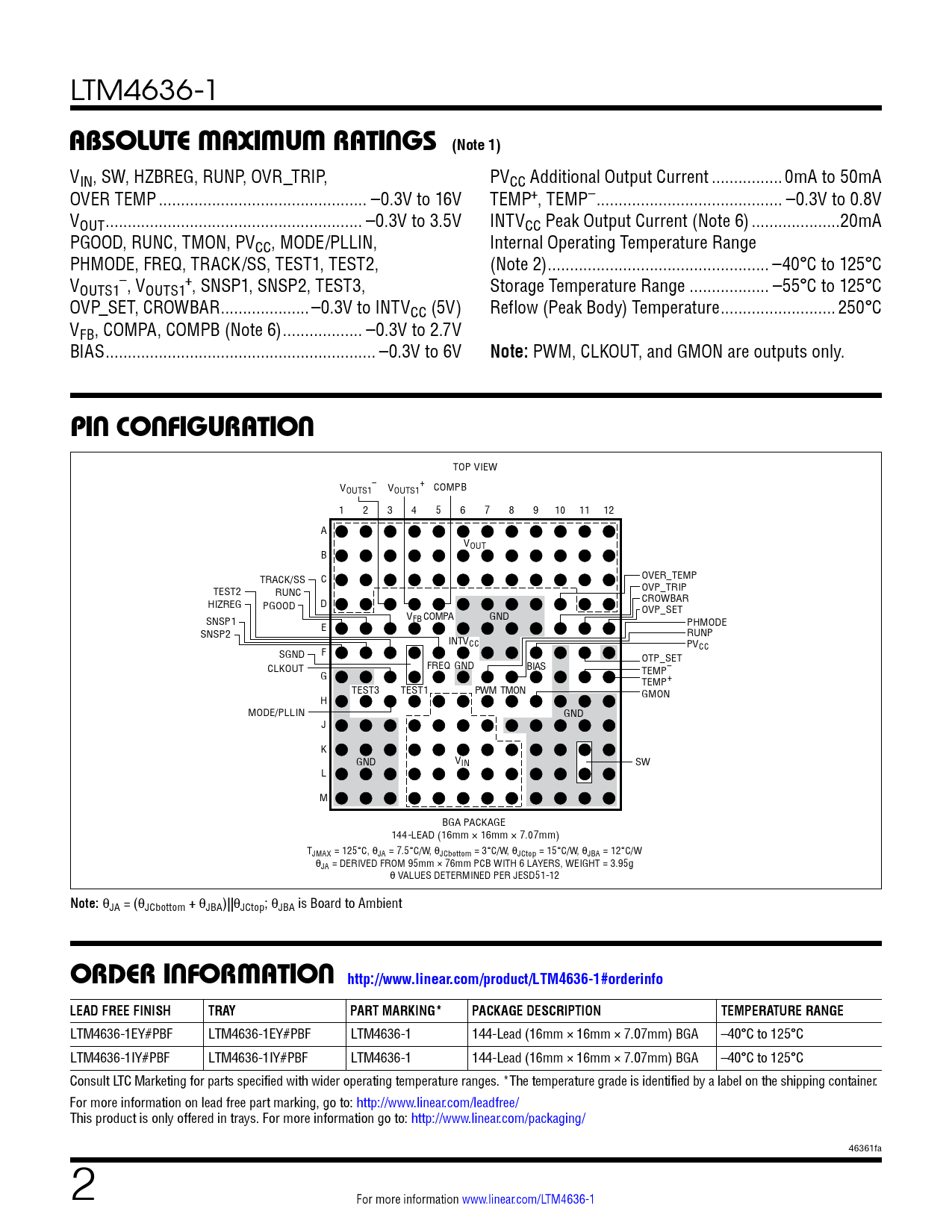

LTM4636-1 ABSOLUTE MAXIMUM RATINGS
(Note 1)
VIN, SW, HZBREG, RUNP, OVR_TRIP, PVCC Additional Output Current ..0mA to 50mA OVER TEMP ... –0.3V to 16V TEMP+, TEMP– .. –0.3V to 0.8V VOUT .. –0.3V to 3.5V INTVCC Peak Output Current (Note 6) ..20mA PGOOD, RUNC, TMON, PVCC, MODE/PLLIN, Internal Operating Temperature Range PHMODE, FREQ, TRACK/SS, TEST1, TEST2, (Note 2) .. –40°C to 125°C V – + OUTS1 , VOUTS1 , SNSP1, SNSP2, TEST3, Storage Temperature Range .. –55°C to 125°C OVP_SET, CROWBAR ..–0.3V to INTVCC (5V) Reflow (Peak Body) Temperature .. 250°C VFB, COMPA, COMPB (Note 6) .. –0.3V to 2.7V BIAS ... –0.3V to 6V
Note:
PWM, CLKOUT, and GMON are outputs only. PIN CONFIGURATION TOP VIEW V – OUTS1 V + OUTS1 COMPB 1 2 3 4 5 6 7 8 9 10 11 12 A VOUT B TRACK/SS C OVER_TEMP TEST2 RUNC OVP_TRIP CROWBAR HIZREG PGOOD D OVP_SET VFBCOMPA GND SNSP1 E PHMODE SNSP2 RUNP INTVCC PVCC SGND F OTP_SET FREQ GND CLKOUT BIAS G TEMP– TEMP+ TEST3 TEST1 PWM TMON H GMON MODE/PLLIN GND J K GND VIN SW L M BGA PACKAGE 144-LEAD (16mm × 16mm × 7.07mm) TJMAX = 125°C, JA = 7.5°C/W, JCbottom = 3°C/W, JCtop = 15°C/W, JBA = 12°C/W JA = DERIVED FROM 95mm × 76mm PCB WITH 6 LAYERS, WEIGHT = 3.95g VALUES DETERMINED PER JESD51-12
Note:
JA = ( JCbottom + JBA)|| JCtop; JBA is Board to Ambient ORDER INFORMATION
http://www.linear.com/product/LTM4636-1#orderinfo LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM4636-1EY#PBF LTM4636-1EY#PBF LTM4636-1 144-Lead (16mm × 16mm × 7.07mm) BGA –40°C to 125°C LTM4636-1IY#PBF LTM4636-1IY#PBF LTM4636-1 144-Lead (16mm × 16mm × 7.07mm) BGA –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 46361fa 2 For more information www.linear.com/LTM4636-1
