LTM4648

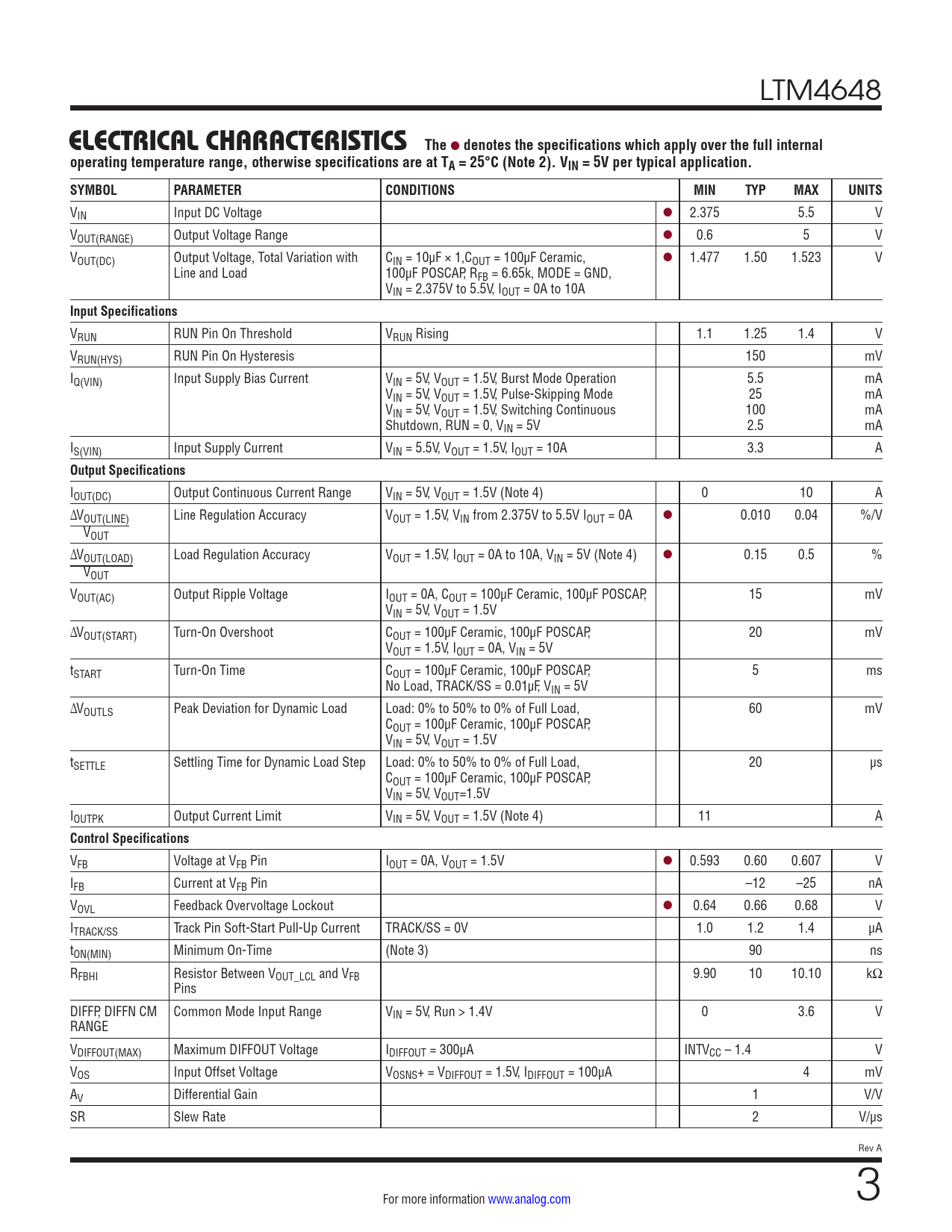

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full internal operating temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 5V per typical application. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Input DC Voltage l 2.375 5.5 V VOUT(RANGE) Output Voltage Range l 0.6 5 V VOUT(DC) Output Voltage, Total Variation with CIN = 10µF × 1,COUT = 100µF Ceramic, l 1.477 1.50 1.523 V Line and Load 100µF POSCAP, RFB = 6.65k, MODE = GND, VIN = 2.375V to 5.5V, IOUT = 0A to 10A
Input Specifications
VRUN RUN Pin On Threshold VRUN Rising 1.1 1.25 1.4 V VRUN(HYS) RUN Pin On Hysteresis 150 mV IQ(VIN) Input Supply Bias Current VIN = 5V, VOUT = 1.5V, Burst Mode Operation 5.5 mA VIN = 5V, VOUT = 1.5V, Pulse-Skipping Mode 25 mA VIN = 5V, VOUT = 1.5V, Switching Continuous 100 mA Shutdown, RUN = 0, VIN = 5V 2.5 mA IS(VIN) Input Supply Current VIN = 5.5V, VOUT = 1.5V, IOUT = 10A 3.3 A
