LTM4630

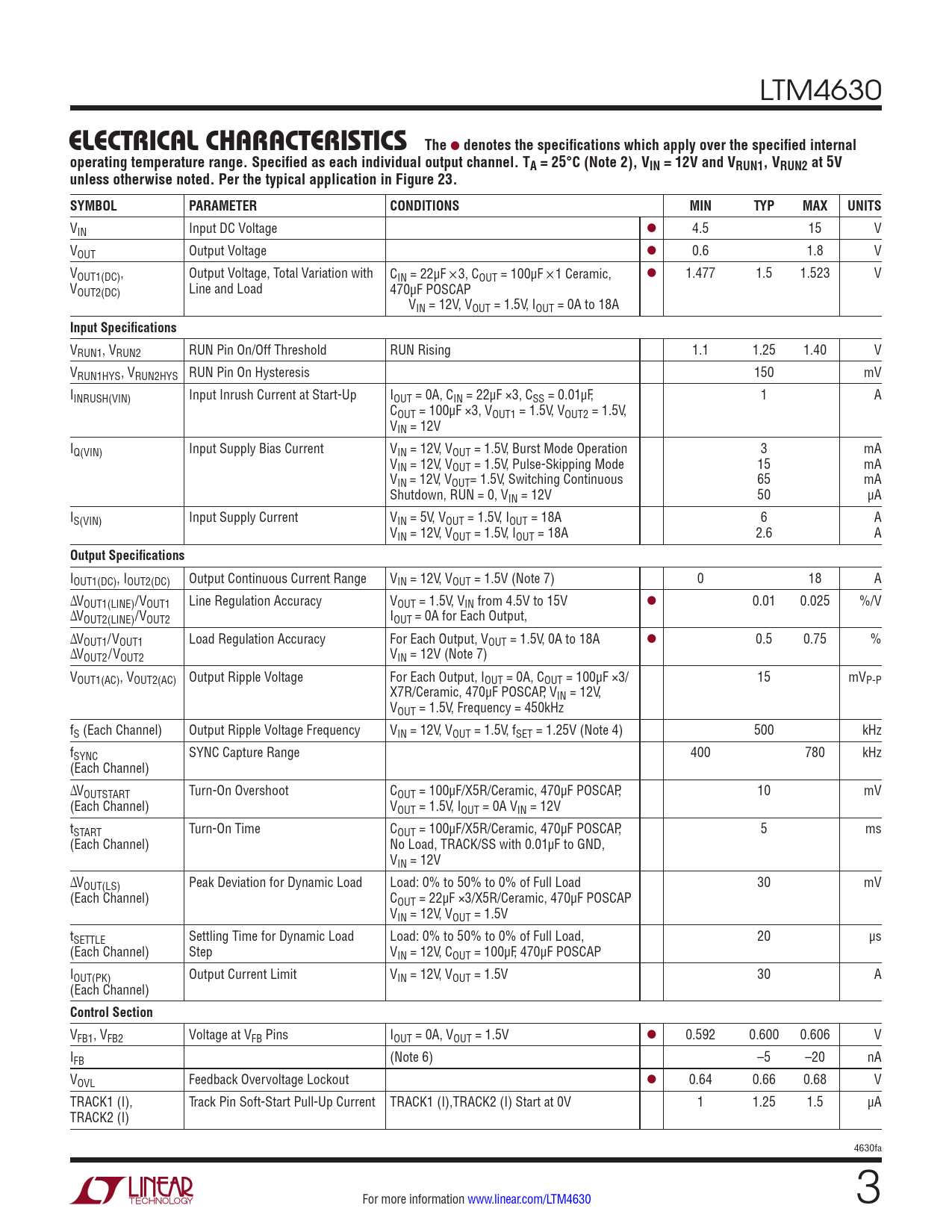

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range. Specified as each individual output channel. TA = 25°C (Note 2), VIN = 12V and VRUN1, VRUN2 at 5V unless otherwise noted. Per the typical application in Figure 23. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Input DC Voltage l 4.5 15 V VOUT Output Voltage l 0.6 1.8 V VOUT1(DC), Output Voltage, Total Variation with CIN = 22µF × 3, COUT = 100µF × 1 Ceramic, l 1.477 1.5 1.523 V VOUT2(DC) Line and Load 470µF POSCAP VIN = 12V, VOUT = 1.5V, IOUT = 0A to 18A
