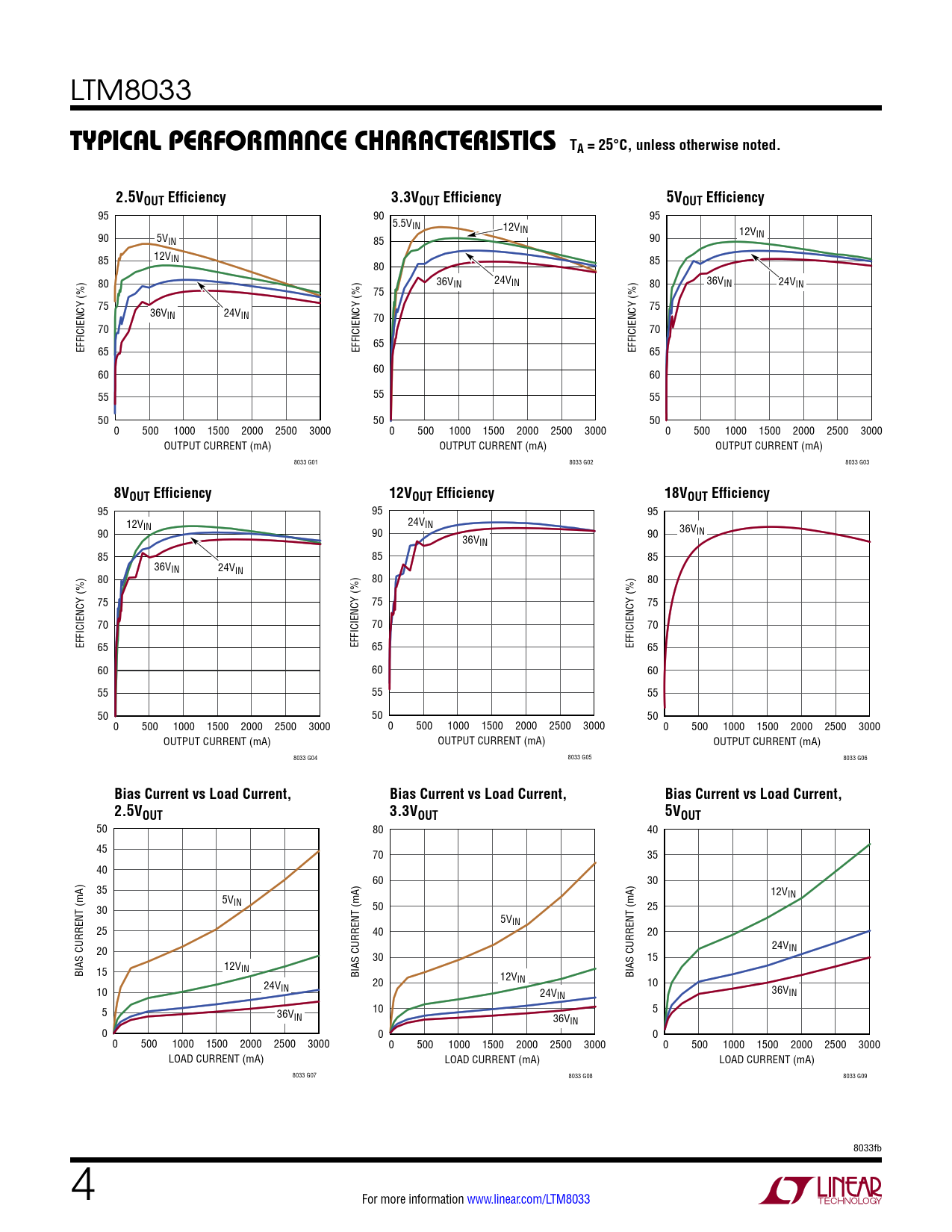

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. 2.5VOUT Efficiency. 3.3VOUT Efficiency
Model Line for this Datasheet
Text Version of Document
LTM8033
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. 2.5VOUT Efficiency 3.3VOUT Efficiency 5VOUT Efficiency
95 90 95 5.5VIN 12VIN 12V 90 5V IN IN 85 90 85 12VIN 80 85 80 36VIN 24VIN 80 36VIN 24VIN 75 75 36V 75 IN 24VIN 70 70 70 EFFICIENCY (%) 65 65 EFFICIENCY (%) EFFICIENCY (%) 65 60 60 60 55 55 55 50 50 50 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8033 G01 8033 G02 8033 G03
8VOUT Efficiency 12VOUT Efficiency 18VOUT Efficiency
95 95 95 12VIN 24VIN 90 90 36VIN 36V 90 IN 85 85 85 36VIN 24VIN 80 80 80 75 75 75 70 70 70 EFFICIENCY (%) 65 EFFICIENCY (%) 65 EFFICIENCY (%) 65 60 60 60 55 55 55 50 50 50 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8033 G04 8033 G05 8033 G06
Bias Current vs Load Current, Bias Current vs Load Current, Bias Current vs Load Current, 2.5VOUT 3.3VOUT 5VOUT
50 80 40 45 70 35 40 60 30 35 12V 5V IN IN 30 50 25 5VIN 25 40 20 20 24VIN 30 15 BIAS CURRENT (mA) 15 12VIN BIAS CURRENT (mA) BIAS CURRENT (mA) 20 12VIN 10 10 24VIN 24V 36V IN IN 5 36V 10 5 IN 36VIN 0 0 0 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 LOAD CURRENT (mA) LOAD CURRENT (mA) LOAD CURRENT (mA) 8033 G07 8033 G08 8033 G09 8033fb 4 For more information www.linear.com/LTM8033 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photographs Revision History Typical Application Related Parts
