Datasheet LTM4611 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Ultralow VIN, 15A DC/DC µModule Regulator |
| Pages / Page | 30 / 8 — pin FuncTions V. OSNS (J12) (+):. DIFFVOUT (K12):. MTP1:A12, MTP2:B11, … |
| File Format / Size | PDF / 493 Kb |
| Document Language | English |
pin FuncTions V. OSNS (J12) (+):. DIFFVOUT (K12):. MTP1:A12, MTP2:B11, MTP3:C10, MTP4:C11, MTP5:
Model Line for this Datasheet
Text Version of Document

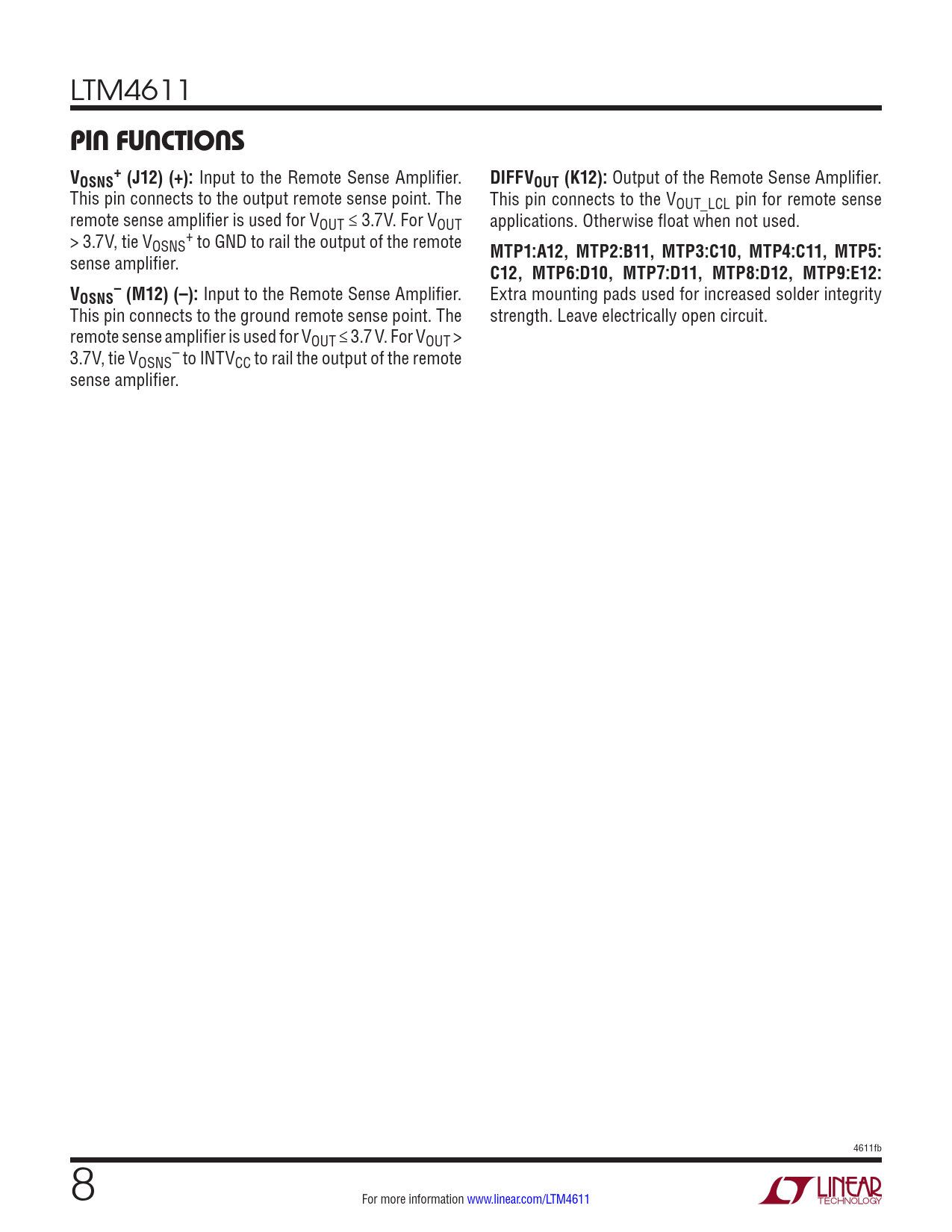

LTM4611
pin FuncTions V + OSNS (J12) (+):
Input to the Remote Sense Amplifier.
DIFFVOUT (K12):
Output of the Remote Sense Amplifier. This pin connects to the output remote sense point. The This pin connects to the VOUT_LCL pin for remote sense remote sense amplifier is used for VOUT ≤ 3.7V. For VOUT applications. Otherwise float when not used. > 3.7V, tie V + OSNS to GND to rail the output of the remote
MTP1:A12, MTP2:B11, MTP3:C10, MTP4:C11, MTP5:
sense amplifier.
C12, MTP6:D10, MTP7:D11, MTP8:D12, MTP9:E12: V – OSNS (M12) (–):
Input to the Remote Sense Amplifier. Extra mounting pads used for increased solder integrity This pin connects to the ground remote sense point. The strength. Leave electrical y open circuit. remote sense amplifier is used for VOUT ≤ 3.7 V. For VOUT > 3.7V, tie V – OSNS to INTVCC to rail the output of the remote sense amplifier. 4611fb 8 For more information www.linear.com/LTM4611 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Photograph Package Description Revision History Typical Application Related Parts
