Datasheet LTM8027 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 60V, 4A DC/DC µModule Regulator |
| Pages / Page | 22 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS (TA = 25°C unless otherwise noted). … |
| File Format / Size | PDF / 636 Kb |
| Document Language | English |

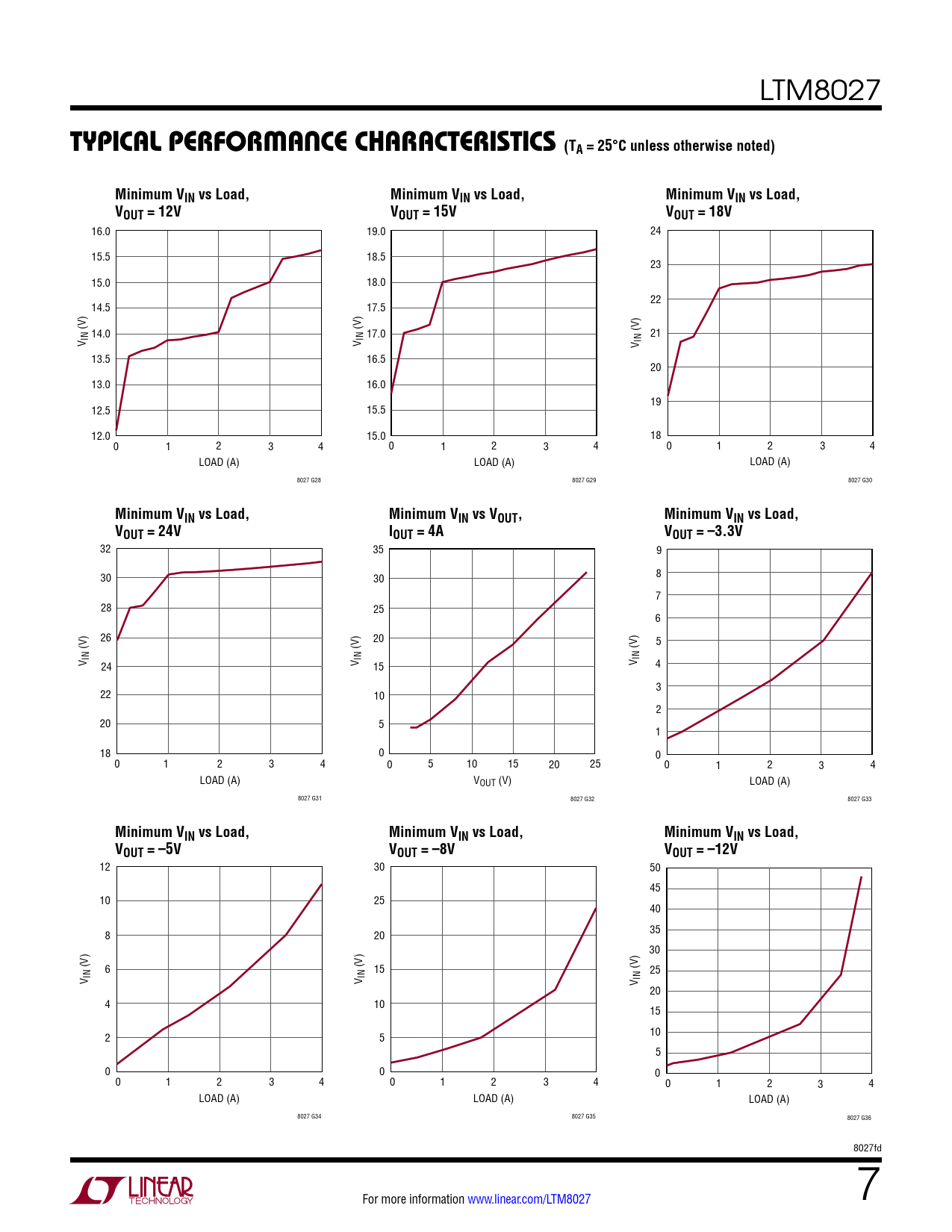

TYPICAL PERFORMANCE CHARACTERISTICS (TA = 25°C unless otherwise noted). Minimum VIN vs Load,. VOUT = 12V. VOUT = 15V
