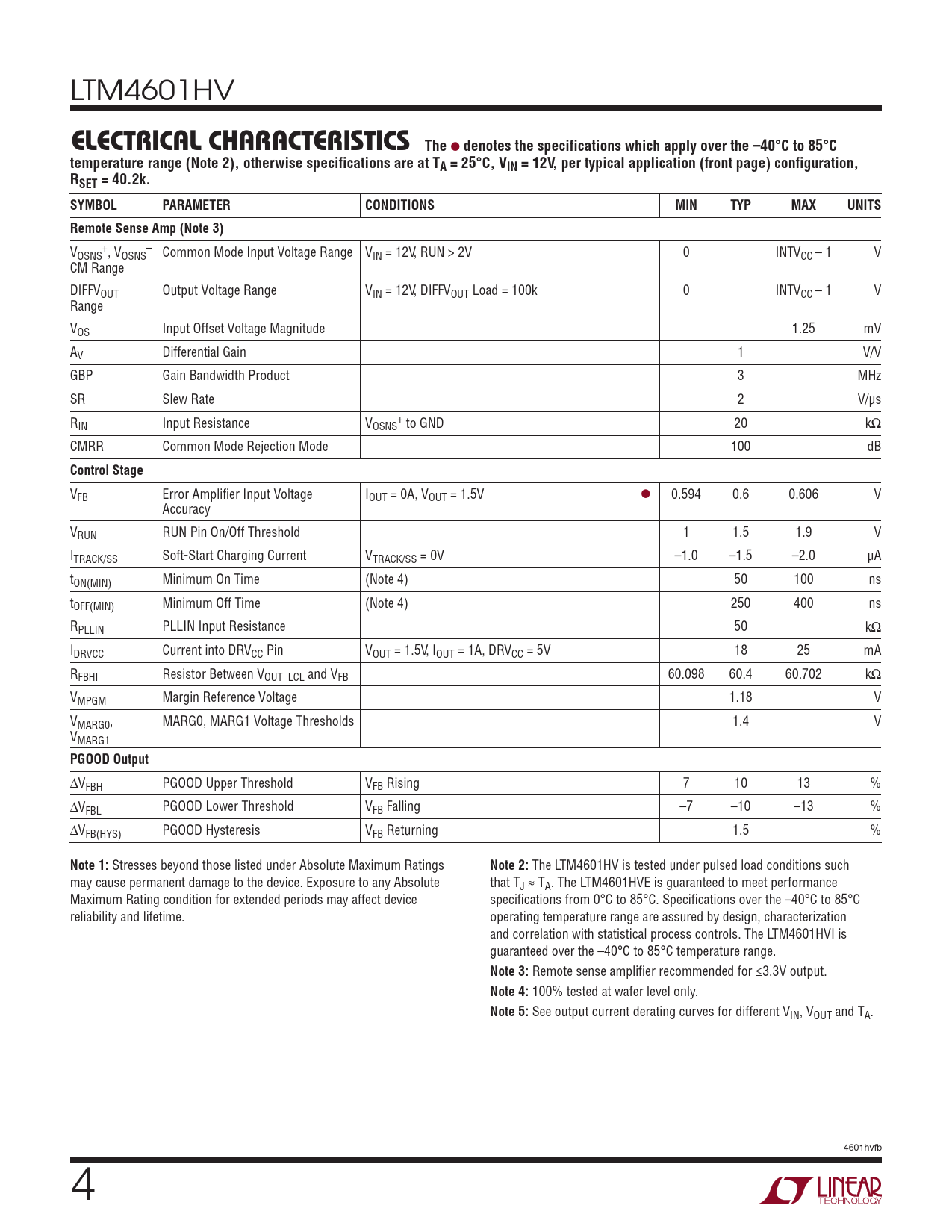

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the –40°C to 85°C
Model Line for this Datasheet
Text Version of Document
LTM4601HV
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the –40°C to 85°C temperature range (Note 2), otherwise specifications are at TA = 25°C, VIN = 12V, per typical application (front page) configuration, RSET = 40.2k. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Remote Sense Amp (Note 3)
V + – OSNS , VOSNS Common Mode Input Voltage Range VIN = 12V, RUN > 2V 0 INTVCC – 1 V CM Range DIFFVOUT Output Voltage Range VIN = 12V, DIFFVOUT Load = 100k 0 INTVCC – 1 V Range VOS Input Offset Voltage Magnitude 1.25 mV AV Differential Gain 1 V/V GBP Gain Bandwidth Product 3 MHz SR Slew Rate 2 V/µs R + IN Input Resistance VOSNS to GND 20 kW CMRR Common Mode Rejection Mode 100 dB
Control Stage
VFB Error Amplifier Input Voltage IOUT = 0A, VOUT = 1.5V l 0.594 0.6 0.606 V Accuracy VRUN RUN Pin On/Off Threshold 1 1.5 1.9 V ITRACK/SS Soft-Start Charging Current VTRACK/SS = 0V –1.0 –1.5 –2.0 µA tON(MIN) Minimum On Time (Note 4) 50 100 ns tOFF(MIN) Minimum Off Time (Note 4) 250 400 ns RPLLIN PLLIN Input Resistance 50 kW IDRVCC Current into DRVCC Pin VOUT = 1.5V, IOUT = 1A, DRVCC = 5V 18 25 mA RFBHI Resistor Between VOUT_LCL and VFB 60.098 60.4 60.702 kW VMPGM Margin Reference Voltage 1.18 V VMARG0, MARG0, MARG1 Voltage Thresholds 1.4 V VMARG1
PGOOD Output
ΔVFBH PGOOD Upper Threshold VFB Rising 7 10 13 % ΔVFBL PGOOD Lower Threshold VFB Falling –7 –10 –13 % ΔVFB(HYS) PGOOD Hysteresis VFB Returning 1.5 %
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
The LTM4601HV is tested under pulsed load conditions such may cause permanent damage to the device. Exposure to any Absolute that TJ ≈ TA. The LTM4601HVE is guaranteed to meet performance Maximum Rating condition for extended periods may affect device specifications from 0°C to 85°C. Specifications over the –40°C to 85°C reliability and lifetime. operating temperature range are assured by design, characterization and correlation with statistical process controls. The LTM4601HVI is guaranteed over the –40°C to 85°C temperature range.
Note 3:
Remote sense amplifier recommended for ≤3.3V output.
Note 4:
100% tested at wafer level only.
Note 5:
See output current derating curves for different VIN, VOUT and TA. 4601hvfb 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Package Photos Related Parts
