Datasheet LTM4600 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 10A High Efficiency DC/DC µModule |
| Pages / Page | 26 / 8 — siMpliFieD block DiagraM. Figure 1. Simplified LTM4600 Block Diagram |
| File Format / Size | PDF / 433 Kb |
| Document Language | English |

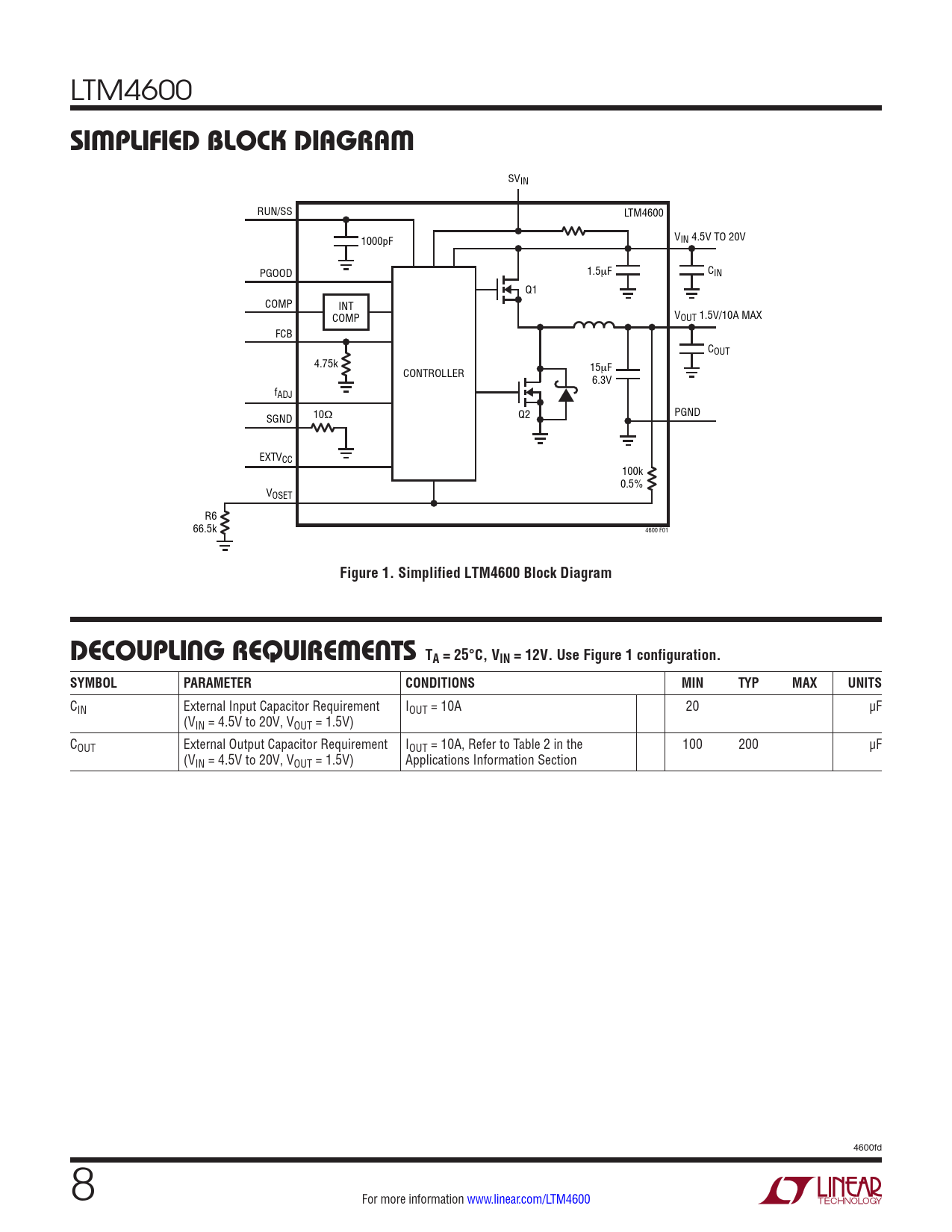

siMpliFieD block DiagraM. Figure 1. Simplified LTM4600 Block Diagram
Model Line for this Datasheet
Text Version of Document
LTM4600
siMpliFieD block DiagraM
SVIN RUN/SS LTM4600 1000pF VIN 4.5V TO 20V PGOOD 1.5μF CIN Q1 COMP INT V COMP OUT 1.5V/10A MAX FCB COUT 4.75k 15μF CONTROLLER 6.3V fADJ SGND 10Ω Q2 PGND EXTVCC 100k 0.5% VOSET R6 66.5k 4600 F01
Figure 1. Simplified LTM4600 Block Diagram Decoupling requireMenTs TA = 25°C, VIN = 12V. Use Figure 1 configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CIN External Input Capacitor Requirement IOUT = 10A 20 µF (VIN = 4.5V to 20V, VOUT = 1.5V) COUT External Output Capacitor Requirement IOUT = 10A, Refer to Table 2 in the 100 200 µF (VIN = 4.5V to 20V, VOUT = 1.5V) Applications Information Section 4600fd 8 For more information www.linear.com/LTM4600 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
